ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
(and Optional Electric or Gas Cooktop Combination)
5. Cabinet Installation
IMPORTANT
Do not lift the oven by the door handle.
1. Unpack the wall oven. Remove the bottom trim taped
on the oven side panel.
2. Find the 2 anti-tip mounting screws included in the
literature package.
3.Insert the oven into the cabinet opening. Slide oven
inward leaving 1½" (3.8 cm) clearance between the
oven and front of cabinet (see Figure 5).
4.Pull the armored cable through the hole for it in the
cabinet and toward the junction box while moving the
appliance inward.
5.Push the oven in and against the cabinet.

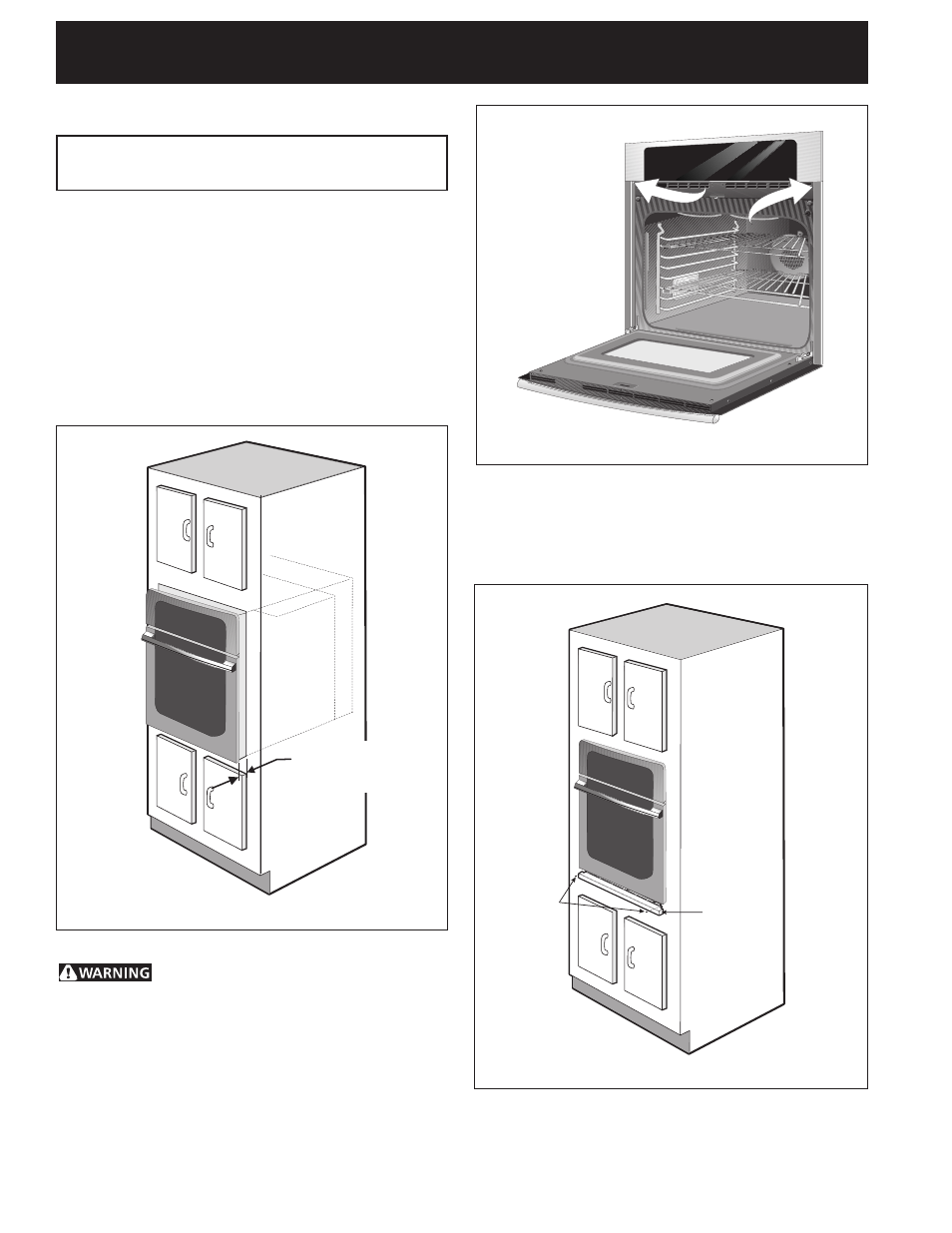

Figure 5
1½" (3.8 cm)
clearance
between unit
6. Install the Anti-tip Mounting Screws
The wall oven can tip when the door
is open. The anti-tip mounting screws supplied
with the wall oven must be installed to prevent
tipping of the wall oven and injury to persons.
A. The mounting holes in the side trims may be used as a
template to locate the appliance mounting screw
holes (see figure 6).
B. Use the two screws supplied to fix the appliance to
the cabinet.
7.Install the Bottom Trim
Place the top of the bottom trim over the side trim tabs on
each side of the oven below the oven door and fix it using
the 2 screws supplied in the mounting holes located on
each side trim below the oven frame (see Figure 7).
Figure 7
Bottom Trim
Screws
supplied
Figure 6
