Hardware Setup
Chapter 4
Embedded and Industrial Computing

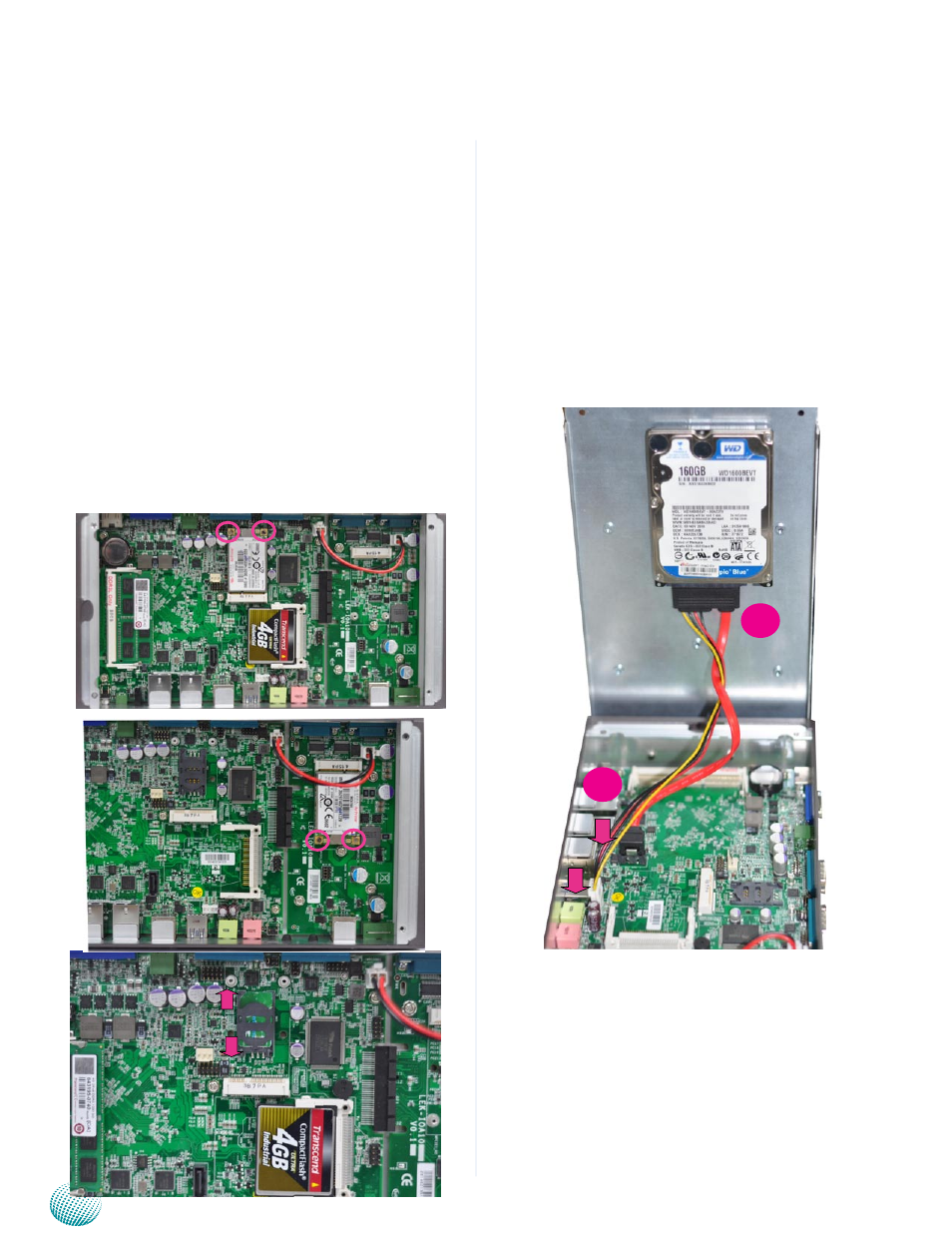

Installing the Wireless Module
Align the wireless module’s key with the Mini-PCIe slot 1.
notch.
Insert the wireless module into the connector
2.
diagonally.
Fix the wireless module with the screws.
3.
Installing the 3G SIM Card
Unlock the SIM card reader first by sliding it outward. 1.
Flip the SIM card reader diagonally. 2.
Put the SIM card into the reader. The angled corner of 3.
the SIM ensures that the card fits only the correct way
in the reader. Make sure the ICs will be in contact with
the SIM card reader.
C
4. lose the tray. You should feel a click when the SIM
card is locked securely in the SIM card reader.
Unlock
Lock
Installing the Hard Disk
The system can accommodate one Serial-ATA disk. Follow
these steps to install a hard disk into the system:
Align the mounting holes of the HDD and that on 1.
the LEC-2530 systems as illustrated in the following
picture. Fix the hard disk on the system by attaching
the screws through the back cover from the outside.
Plug the Serial-ATA cable to the hard disk.
2.
Connect the Serial-ATA power and data disk cables to 3.
the Serial-ATA power and disk connectors on the main
board respectively.
2
3
