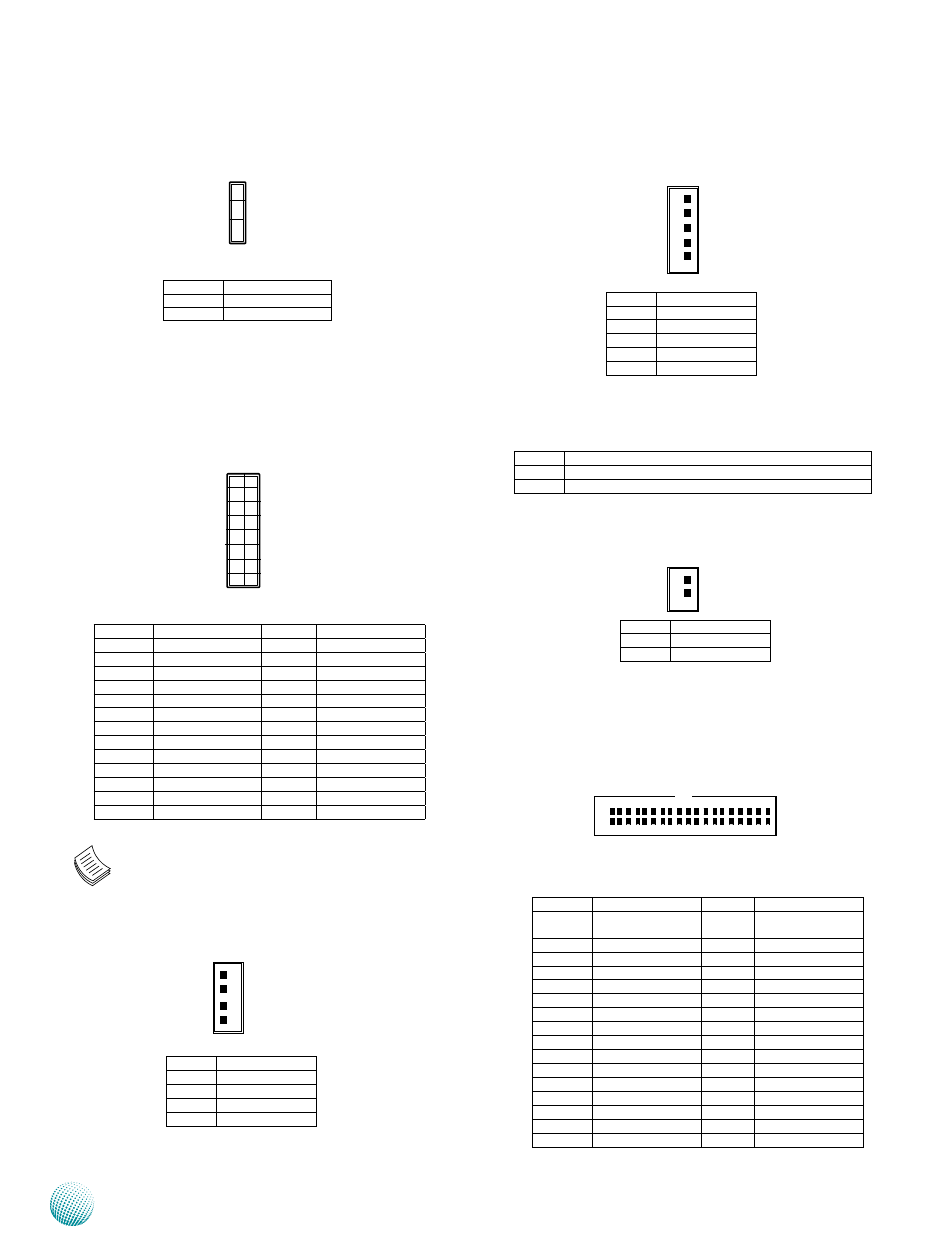

Board Layout
Chapter 3
Embedded and Industrial Computing
3
2
1
Pin No. Pin Name
1-2 Normal (default)
2-3 Clear CMOS
1
3
25
2
26
Pin No. Pin Name Pin No. Pin Name
1 RESET+ 2 VCCSB
3 GND 4 GND
5 +5V 6 +5V
7 HDLED- 8 GND
9 VCCSB 10 VCCSB
11 PANSWIN 12 SUS_LED-
13 KB_LOCK- 14 +5V
15 GND 16 SPKIN
17 CASEOPEN- 18 VTIN3
19 GND 20 THRMDN-
21 +5V 22 +5V
23 BRIGHT 24 MASTER-
25 GND 26 GND
LCD Inverter Connector (JBKL1)
Signal Description for JBKL1
LCD Inverter Connector (JBKL2)
Floppy connector (CN6)
1
2
5
Pin No. Pin Name
1 +12V_BKL
2 GND
3 ENBKL
4 BRIGHT
5 +5V
Pin No. Pin Name
BRIGHT Vadj = 0.75V ~ 4.25V (Recommended: 4.7KΩ, >1/16W)
ENBKL LCD backlight ON/OFF control signal
1
2
Pin No. Pin Name
1 +12V
2 GND
1
2
17
34
Pin No. Pin Name Pin No. Pin Name
1 GND 2 RWC#
3 GND 4 NC
5 GND 6 DRVDEN1
7 GND 8 INDEX#
9 GND 10 MOA#
11 GND 12 DSB#
13 GND 14 DSA#
15 GND 16 MOB#
17 GND 18 DIR#
19 GND 20 STEP#
21 GND 22 WD#
23 GND 24 WE#
25 GND 26 TRAK0#
27 GND 28 WP#
29 NC 30 RDATA#
31 GND 32 HEAD#
33 NC 34 DSKCHG#
4
3
1
Clear CMOS (JP5)
Miscellaneous Setting Connector (JFP1)
Note: To set the CF Card as Master , please short
JFP1 pin 24 and 26.
CD-ROM Audio Input Connector (JCD1)
Pin No. Pin Name
1 NC
2 CD_L
3 GND
4 CD_R
