Illustration and parts list – Jordan Valve Mark 608BP - Balanced Plug Regulator User Manual
Page 5

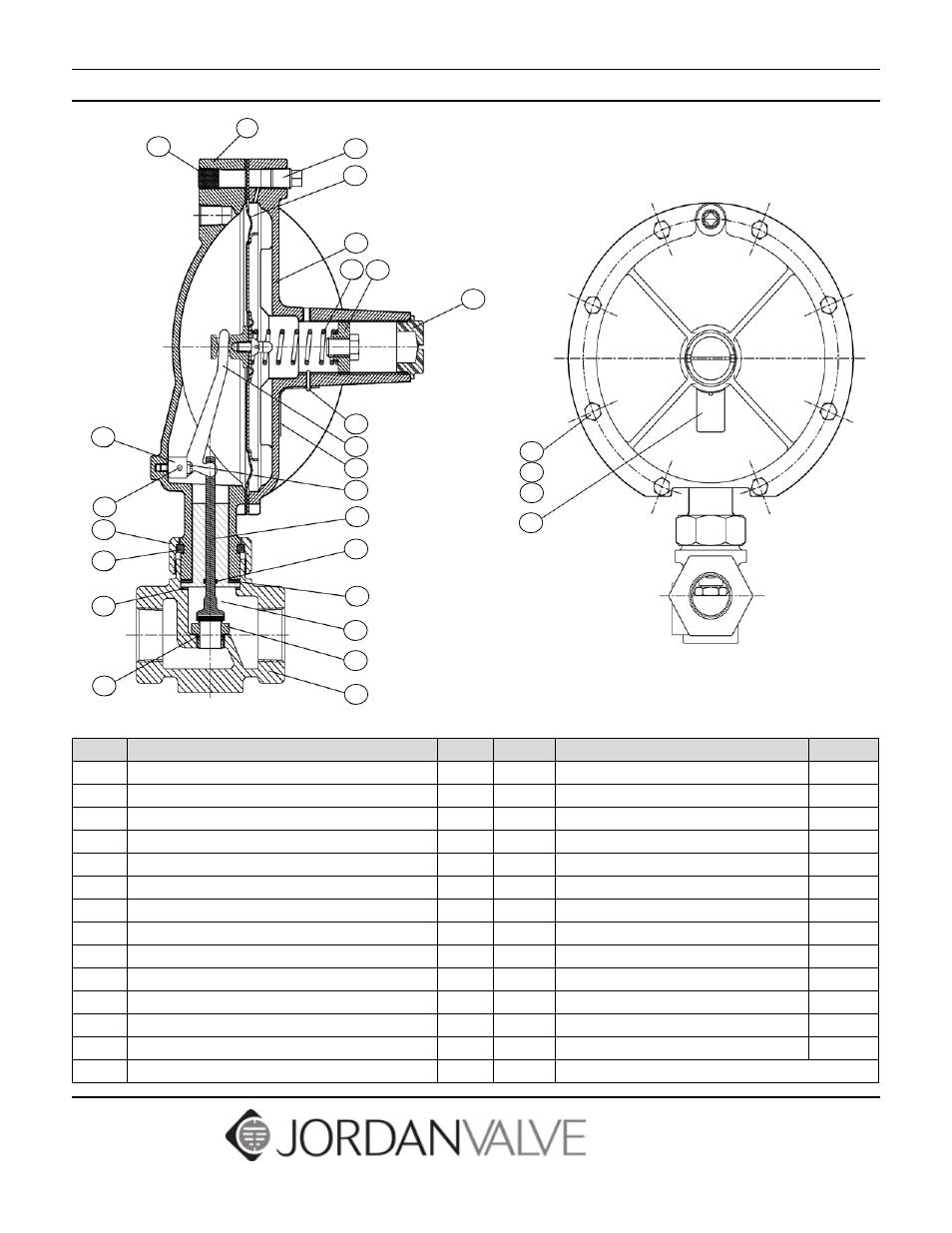

Illustration and Parts List
3170 Wasson Road • Cincinnati, OH 45209 USA
Phone 513-533-5600 • Fax 513-871-0105
[email protected] • www.jordanvalve.com
Bulletin IM-MK608BP-0611
Item
Description
Qty.
Item
Description
Qty.
1
Lower Diaphragm Case
1
19
Adjusting Screw S/A
1
2
Spring Housing
1
21
Cap
1
*3
Diaphragm S/A
1
22
Range Spring
1
7
Lever Arm
1
23
Stop Pin
1
8
Lever Arm Bracket
1
24
Union Nut
1
9
Screw (Lever Arm)
2
25
Retaining Ring
1
10
Dowel Pin
1
*26
Seat Insert
1
*11
Plug
1
27
Body
1
12
Guide for Balanced Plug
1
28
Name Plate
1
14
Vent Screen
1
*29
Gasket (Aspirator Tube Upper)
1
15
Pipe Plug
1
*30
Gasket (Aspirator Tube Lower)
1
16
Bolt
8
*31
Orifice O-Ring
1
17
Lockwasher
8
*32
Plug O-Ring
1
18
Nut
8
*
Recommended Spare Parts
28
18
17
16
19
22
2
3
15
1
14
10
8
29
32
11
9
28
7
23
21
24
25
30
31
27
26
12
