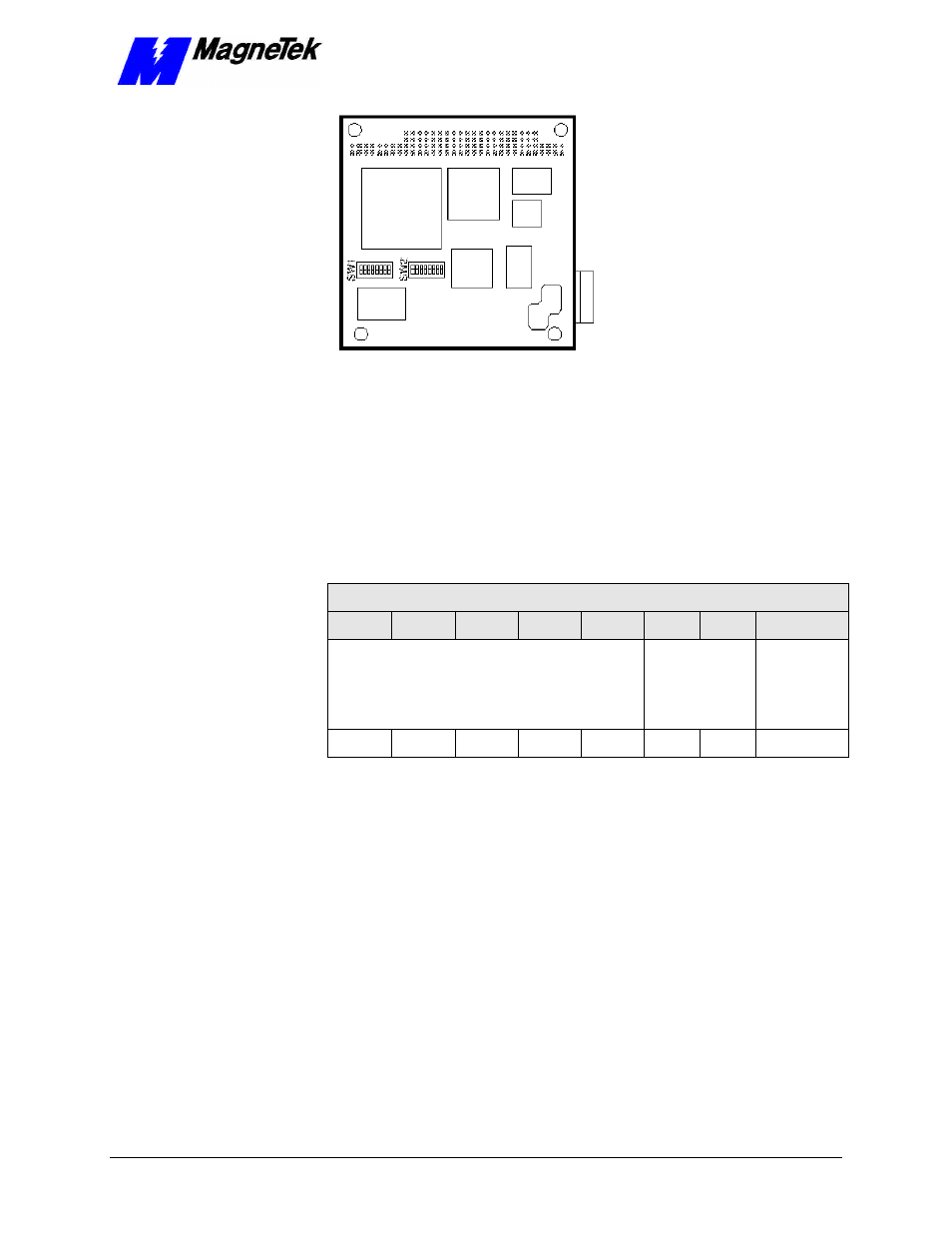

Figure 4. Genius Card Switch Locations (back of PCIM Card)
Switch SW2 positions 1-4 determine a 16 kilobyte Memory location used by the
Smart Trac Genius card.
Switch SW2 positions 5-7 determine the I/O Base Address for the application
software.
Switch SW2 position 8 determines whether the Watchog Timer is disabled
(default) or enabled.
0 = OFF 1 = ON
SW2 Default Settings
1 2 3 4 5 6 7 8
Serial Bus Addressing
Address CC00h
(Default)
I/O Port
Address
3E0h
(Default)
Watchdog
Timer
(Disabled)
0 1 1 0 0 0 1 1
Switch SW2 (Memory
Address, I/O Base
Address, Watchdog
Timer)
