Tire Size and Carrying Capacity Chart
Tire Size ............................ST215/75R14-C
GVWR ...............................7040 LB.
Carrying Capacity ..............5500 LB.
Axle....................................Disc Brake
Refer to the tire side wall for correct tire pressure.

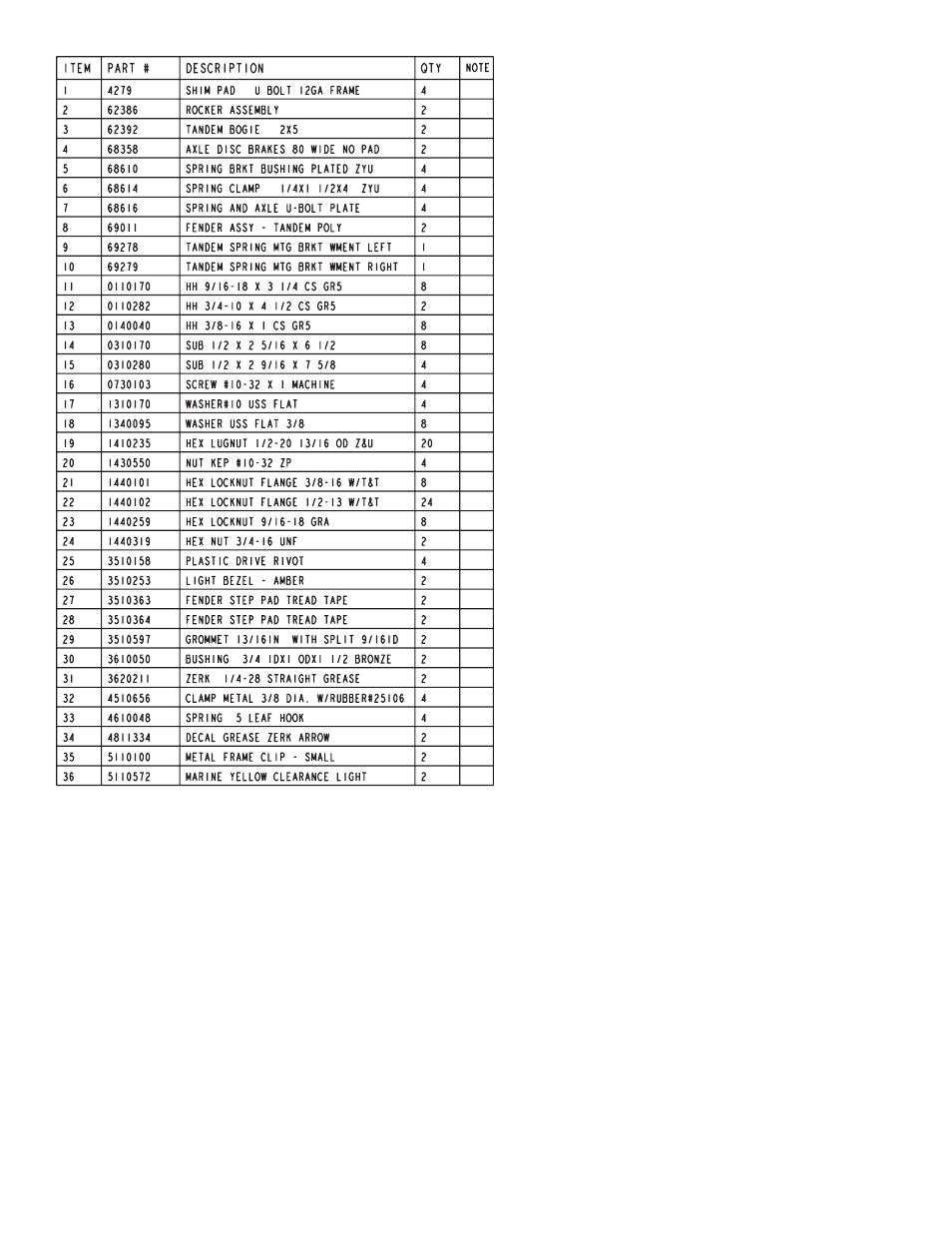

ITEM PART # DESCRIPTION QTY NOTE
1 4279 SHIM PAD U BOLT 12GA FRAME 4
2 62386 ROCKER ASSEMBLY 2
3 62392 TANDEM BOGIE 2X5 2
4 68358 AXLE DISC BRAKES 80 WIDE NO PAD 2
5 68610 SPRING BRKT BUSHING PLATED ZYU 4
6 68614 SPRING CLAMP 1/4X1 1/2X4 ZYU 4
7 68616 SPRING AND AXLE U-BOLT PLATE 4
8 69011 FENDER ASSY - TANDEM POLY 2
9 69278 TANDEM SPRING MTG BRKT WMENT LEFT 1
10 69279 TANDEM SPRING MTG BRKT WMENT RIGHT 1
11 0110170 HH 9/16-18 X 3 1/4 CS GR5 8
12 0110282 HH 3/4-10 X 4 1/2 CS GR5 2
13 0140040 HH 3/8-16 X 1 CS GR5 8
14 0310170 SUB 1/2 X 2 5/16 X 6 1/2 8
15 0310280 SUB 1/2 X 2 9/16 X 7 5/8 4
16 0730103 SCREW #10-32 X 1 MACHINE 4
17 1310170 WASHER#10 USS FLAT 4
18 1340095 WASHER USS FLAT 3/8 8
19 1410235 HEX LUGNUT 1/2-20 13/16 OD Z&U 20
20 1430550 NUT KEP #10-32 ZP 4
21 1440101 HEX LOCKNUT FLANGE 3/8-16 W/T&T 8
22 1440102 HEX LOCKNUT FLANGE 1/2-13 W/T&T 24
23 1440259 HEX LOCKNUT 9/16-18 GRA 8
24 1440319 HEX NUT 3/4-16 UNF 2
25 3510158 PLASTIC DRIVE RIVOT 4
26 3510253 LIGHT BEZEL - AMBER 2
27 3510363 FENDER STEP PAD TREAD TAPE 2
28 3510364 FENDER STEP PAD TREAD TAPE 2
29 3510597 GROMMET 13/16IN WITH SPLIT 9/16ID 2
30 3610050 BUSHING 3/4 IDX1 ODX1 1/2 BRONZE 2
31 3620211 ZERK 1/4-28 STRAIGHT GREASE 2
32 4510656 CLAMP METAL 3/8 DIA. W/RUBBER#25106 4
33 4610048 SPRING 5 LEAF HOOK 4
34 4811334 DECAL GREASE ZERK ARROW 2
35 5110100 METAL FRAME CLIP - SMALL 2
36 5110572 MARINE YELLOW CLEARANCE LIGHT 2
