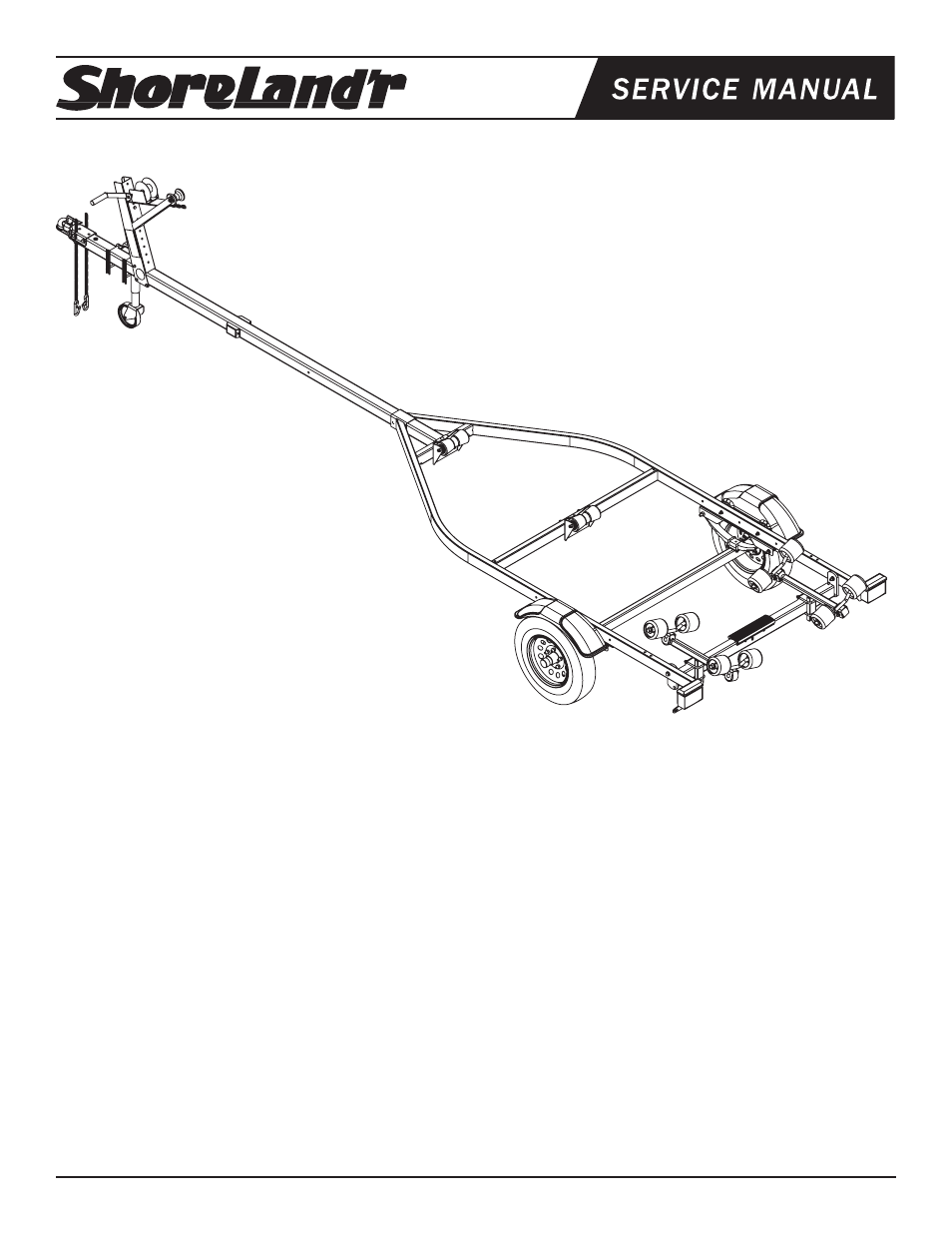

ShoreLand'r LUR14TL V.2 - Manual

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003766
Page 1 02/19/07
®
LUR14TL
BUNDLES REQUIRED
LUR14TL-03 Lund Trailer Fishing
62340 Literature Bag - Trailers
6875803 Hdwe Box - Roller - 56” Fishing Series
6924903 Frame Bundle - Lund 56” w/Fish Roller
*5.30 X 12C Tire/Mod Rim
6551603 Tongue Assy 3X3X10’
3310050 Jack 800 lb. Swivel
3310053 Jack Mounting Hardware Bag
6444903 Axle Assembly
TA0010 Bow Pad Support - Fishing
LUR14TL-39 Lund Trailer Fishing
62340 Literature Bag - Trailers
6875800 Hdwe Box - Roller - 56” Fishing Series
6924939 Frame Bundle - Lund 56” w/Fish Roller
*5.30 X 12C Tire/Mod Rim
6551600 Tongue Assy 3X3X10’
3310050 Jack 800 lb. Swivel
3310053 Jack Mounting Hardware Bag
6444900 Axle Assembly
TA0010 Bow Pad Support - Fishing
*Check with your dealer/customer service representative for current tire/rim assembly part number.
ShoreLand’r offers their product line a painted finish. When ordering
parts it is important that you specify the finish or color you have on
your product. The five (5) digit number along with a two (2) digit space
_ _, note the parts which can be purchased with various finishes.
When ordering these items use the five (5) digit number along with
a two (2) digit suffix for the proper finish.
03..........Black
39..........Galvanized w/Silver Plastic Components
Tire Size and Carrying Capacity Chart
Tire Size ............................5.30 X 12-C
GVWR ...............................2000 lb.
Carrying Capacity ............1400 lb.
Axle ...................................Non-Brake
Refer to the tire side wall for correct tire pressure.
NOTE: Brakes available as optional equipment.
Recommended carrying capacity is based on shipping weight
of the trailer with standard equipment. Adding optional equip-
ment may decrease the trailer’s carrying capacity.
