Final Assembly Instructions

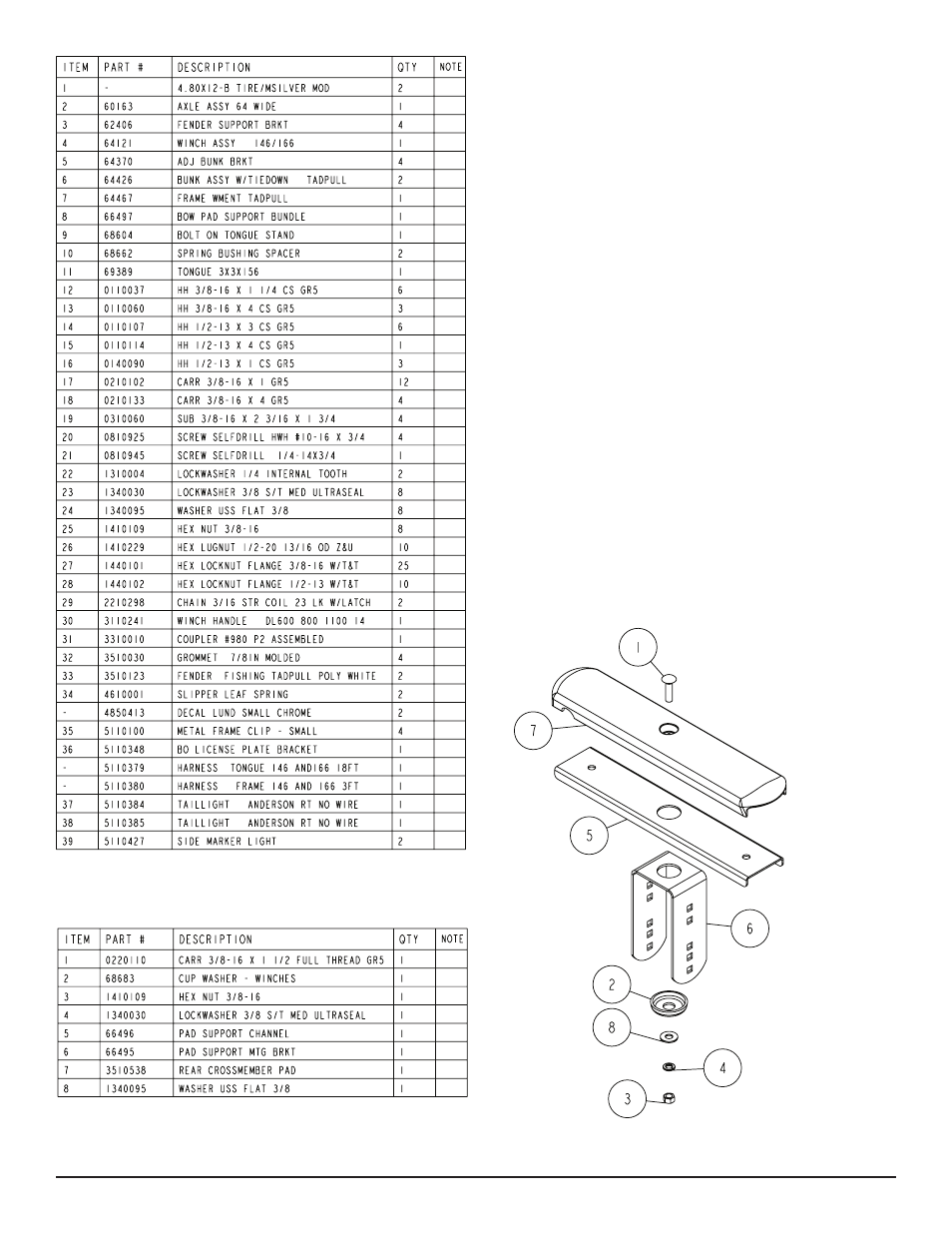

Remove the small parts from the frame by cutting the banding. Re-
move the bolt bag and sort all the nuts and bolts by size.
See Detail A
Side Marker Lights
Once the proper tongue is identified place it on the stands so it can
be prepared for installation into the frame. Locate the two amber
side marker lights shipped in the hardware box. Uncoil the wire and
insert the plug end into the larger, center hole that is drilled in the
side of the tongue. As the wire is inserted into the hole direct the wire
so that it will go to the forward end of the tongue. Pull the wire out
the front of the tongue. It will be connected to the tongue har¬ness
at a later time. Attach the light to the tongue using two (2) No. 10 x
3/4” self-tapping screws provided. Repeat this process on the other
light on the other side of the tongue.
Locate the tongue wire harness. Insert the end of the harness with
the small plug into the hole located in the top of the tongue. Pull the
wire backward through the tongue until the end comes out the rear
of the tongue. As the wire harness is inserted note that there are two
single bullet wires towards the front plug of the tongue wire harness.
Pull these wires forward as the wire harness is inserted into the
tongue. Plug the single wires from the side marker lights installed
earlier into the two single bullets of the tongue harness. Push the
additional back into the front of the tongue to keep it from damage
during use. Place a rubber grommet around the wire har¬ness and
in the hole in the top of the tongue to protect the wires from dam-
age during use.
Route the harness plug at the rear of the tongue through the hole
provided in the side of the tongue. Pull both the plug and the white
