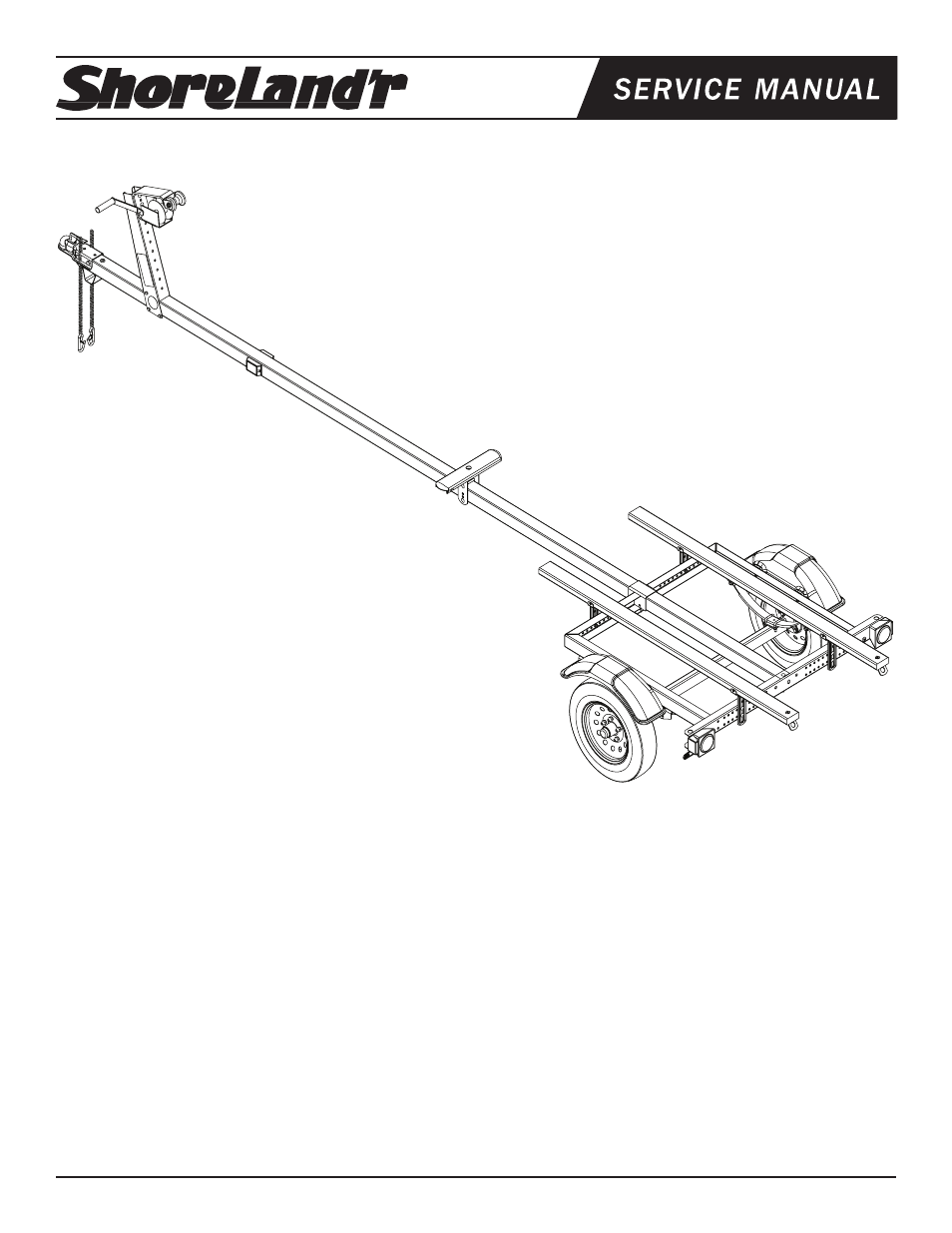

ShoreLand'r LUB7TSS V.1 - Manual

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003743
Page 1 Rev A 01/26/2009
®
LUB7TSS
BUNDLES REQUIRED
LUB7TSS-03 Lund Trailer Fishing - Tadpul
62340 Literature Bag - Trailers
4850413 Decal - Lund Small
6728003 Frame Bundle - Tadpul
*4.80 X 12B Tire/Mod Rim
6938903 Tongue Assy 3X3X13
3310050 Jack 800 lb. Swivel
3310053 Jack Mounting Hardware Bag
LUB7TSS-39 Lund Trailer Fishing - Tadpul
62340 Literature Bag - Trailers
4850413 Decal - Lund Small
6728039 Frame Bundle - Tadpul
*4.80 X 12B Tire/Mod Rim
6938900 Tongue Assy 3X3X13
3310050 Jack 800 lb. Swivel
3310053 Jack Mounting Hardware Bag
*Check with your dealer/customer service representative for current tire/rim assembly part number.
ShoreLand’r offers their product line in either galvanized or painted
finish. When ordering parts it is important that you specify the finish
or color you have on your product. The five (5) digit number along
with a two (2) digit space _ _, note the parts which can be purchased
with various finishes. When ordering these items use the five (5) digit
number along with a two (2) digit suffix for the proper finish.
03..........Black
39..........Galvanized W/Silver Plastic Components
Tire Size & Carrying Capacity Chart
Tire Size: 4.80 X 12
Load Range: B
Carrying Capacity: 780 lbs. per/tire
Refer to tire side wall for correct tire pressure.
Tongue Weight Adjustment
Approximate Tongue Weights for Best Towing. Slide the water
vehicle either forward or backward on the trailer until the proper
tongue weight has been achieved. The tongue weight should be 5%
to 7% of the total gross weight of the trailer and boat combined.
