ShoreLand'r LUB40TABBXLW V.3 User Manual
Page 12
Midwest Industries, Inc.
Ida Grove, IA 51445
800.859.3028
www.shorelandr.com
0003747
Page 12
REV B 12/14/2007
LU010 Lund Load Assembly Instructions
The
LU010 load guides are designed to fit on the Lund boat trail-
ers manufactured with 2 x 4 side frame tubing .The length of the
mounting U-bolts provided will accommodate this size tubing only.
Mounting on a smaller or larger side frame tube may not be pos-
sible because of the U-bolt length.
Remove all items from the box and sort by size.
Note that the arm weldments of the load guide are identical so there
is no right or left part.

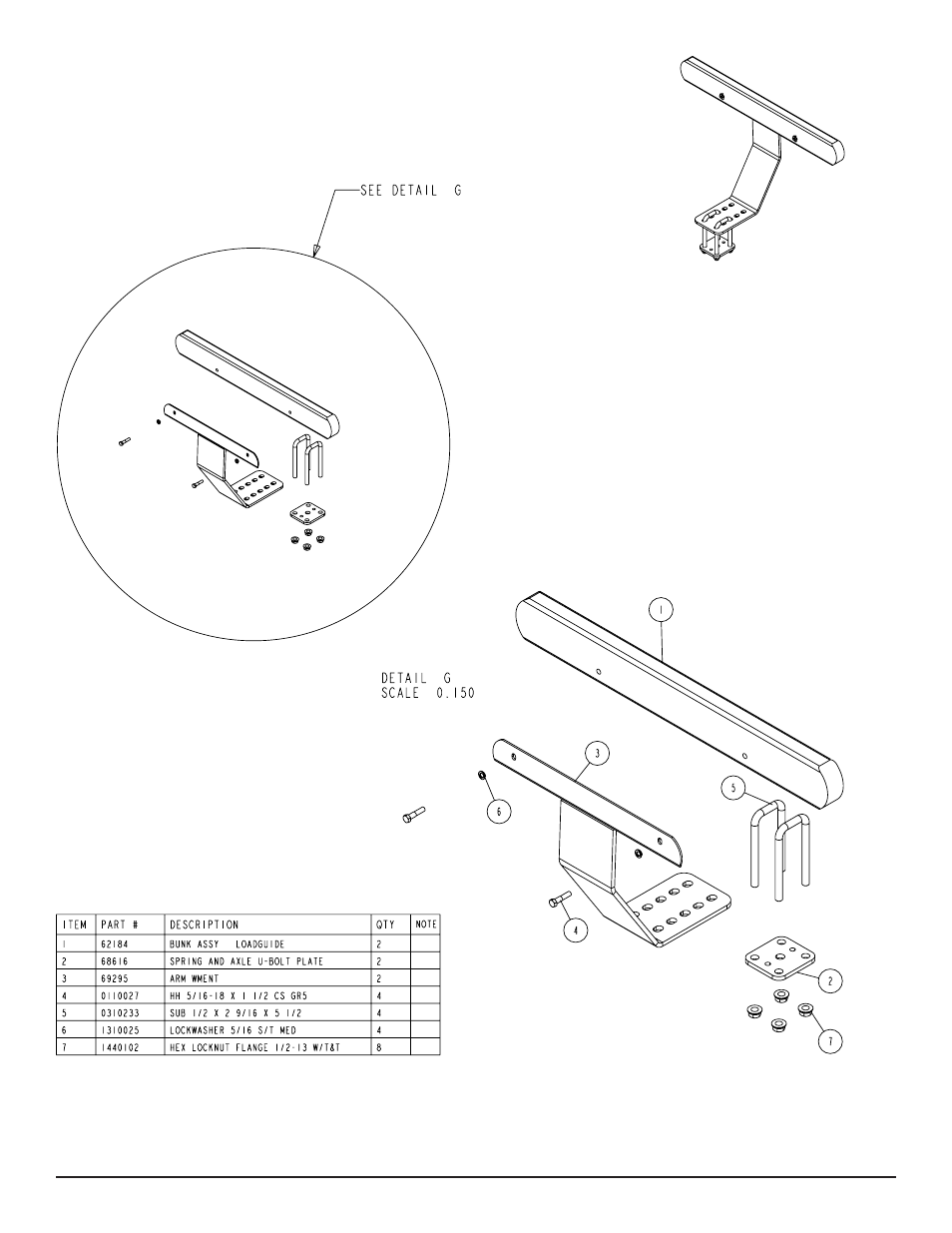

Locate the arm weldments and the carpeted bunks. Attach the car-
peted bunks to the arm weldments using the 5/16” x 1 ½” hex bolts
and lock washers provided. Tighten.
