FINAL ASSEMBLY INSTRUCTIONS
Remove all banded items and the hardware bag from the frame.

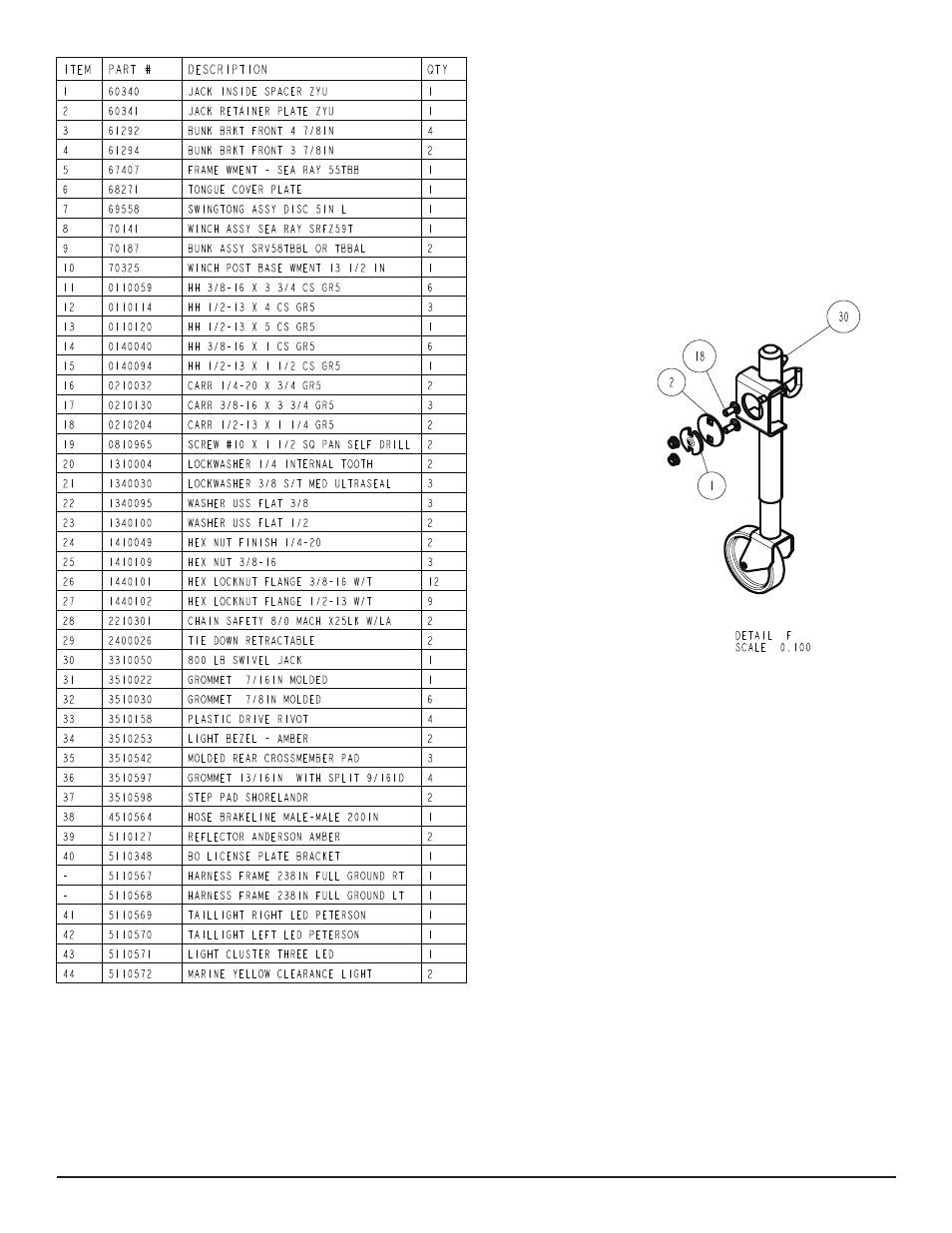

Remove the parts and sort by size.
TONGUE
Locate the tongue and install by sliding it in the front of the tongue
channel.
Line the holes in the tongue with the holes in the tongue channel.
Install the 1/2” x 4” hex bolt in the front cross hole and secure with
a 1/2” flange lock nut.
Remove the wire harness from the rear of the tongue. Place the
wire harness and the brake hose through the hole provided in the
tongue cover plate.
Secure the tongue cover plate in position with the same 1/2” x
1-1/2” hex bolt that secures the back on the tongue to the tongue
channel of the frame. Secure with a 1/2” lock nut. Tighten both bolts
just installed.
Plug the tongue wire harness ends into the frame harnesses by
matching colors and ends. Push the extra wire provided into the
rear of the tongue. The wire should be positioned so the only thing
exposed to the outside of the tongue and side frame is the black
wire loom.
TONGUE BRAKE HOSE CONNECTION
Locate the brass brake line coupling which is mounted to the end
