Place the bolt with chain attached through the hole provided in the
bottom front of the actuator mount on the tongue. Place the second
chain on the portion of the bolt extending through the other side
of the tongue. Place on another 1/2” flat washer and hex lock nut.
Tighten.
RETRACTABLE TIE DOWNS
Locate the two retractable tie downs. Next locate one of the 7/16”
x 1 ½” fine threaded bolts supplied with the retractable tie down.
Insert it into the bottom hole on the retractable tie down so the bolt
is pointing through the back side of the tie down. Insert the bolt
through the hole provided in the taillight bracket just inside the side
frame. Secure with the 7/16” flange lock nut. Tighten.
Repeat the above process on the other tie down.
WINCH POST ASSEMBLY
Your trailer may have come with the jack already installed on the
winch base. However, in the event that it did not, use the following
instructions to attach the jack to the winch base before it is installed
on the tongue.
WINCH POST INSTALLATION
The height that the bow eye is placed in your boat will determine
the length winch post required. Once this is determined, attach the
winch base to the tongue with three 1/2” x 4” carriage bolts and
lock nuts.
Align the holes in the Profile 2000 mounting channel with the holes
in the top of the winch base. Attach the front of the winch head
mounting channel to the base by placing a 1/2” x 4-1/2” hex bolt
through the hole closest to the front of the winch base. Secure with
a lock nut. Do not tighten.
Note that the winch head can now be rotated either up or down.
Identify the correct hole combination to use to position the bow eye
roller just above the bow eye of your boat. When determined, se-
cure in this position by placing the bushing as shown in Diagram D
inside the winch base so it aligns with the hole just identified for the
proper adjustment. Insert another 1/2” x 4-1/2” hex bolt through the
determined mounting hole in the mounting channel and winch base
making sure the bolt passes through the bushing as well. Secure
with a 1/2” lock nut. Tighten all bolts.

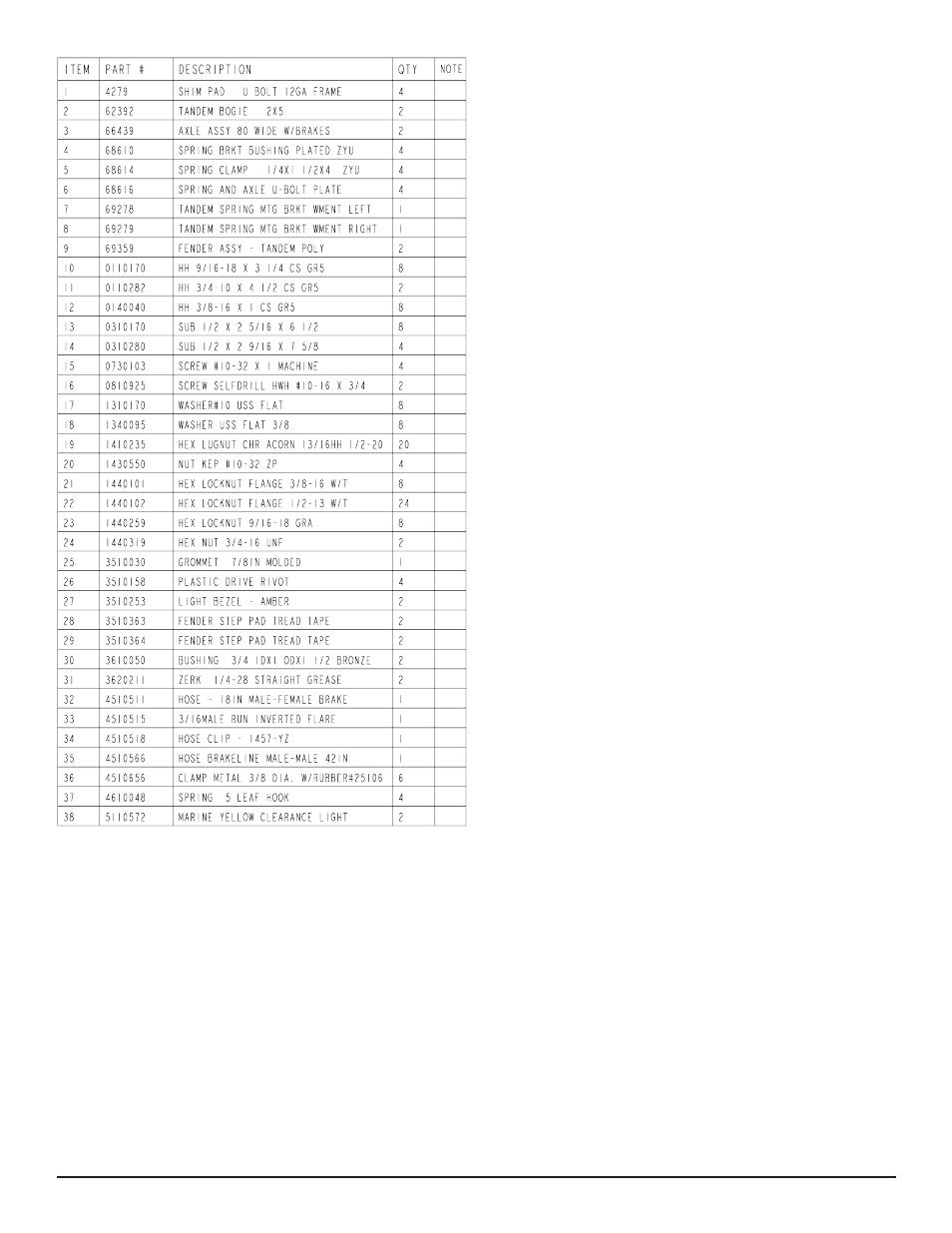

ASSEMBLY & MOUNTING INSTRUCTIONS
JACK - PROFILE 2000 WINCH BASE
The Profile 2000 winch base used on the 2” x 4” and 2” x 5” frame
trailers is formed so that the jack can be mounted directly to it elimi-
nating the need for other mounting hardware for attaching the jack
to the tongue. The jack required for mounting does not require the
mounting base or any of the original mounting hardware compo-
nents.
Assemble as follows:
The jack must be mounted to the winch base before it is installed
on the trailer tongue. If the winch base is already mounted on the
tongue, it will have to be removed for the jack installation.
Locate the hardware bag and sort all items by size.
Lay the Profile 2000 winch base on its side so the side that the jack
is going to be mounted on is up.
