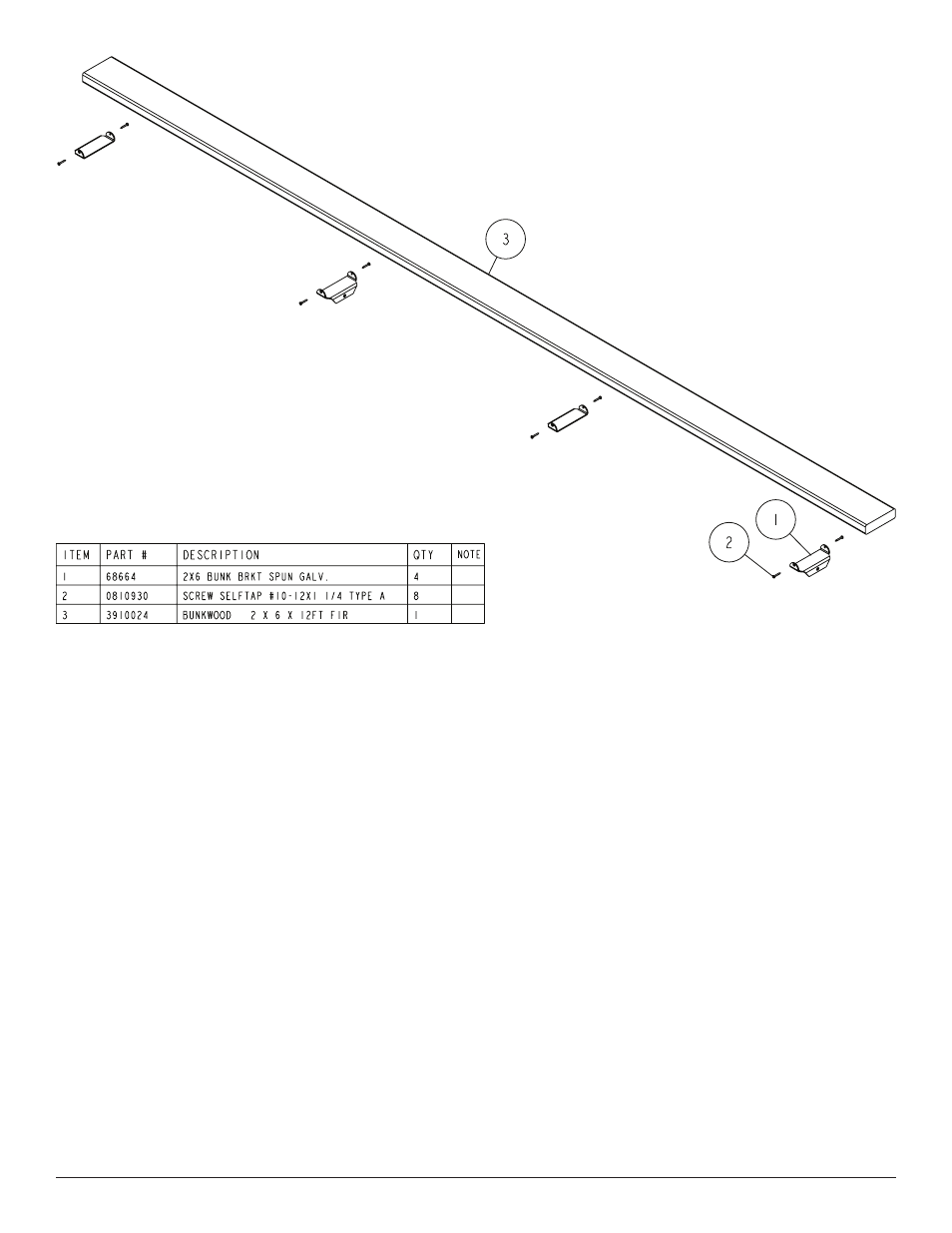

BUNKS
Locate the bunks. Position one of them so it is above the Equiload
arms on the trailer. Align the holes in the bunk brackets attached to
the bunk with the holes in the ends of the Equiload arms. Secure
with 3/8” X 1” hex bolts and lock nuts. Tighten but do not over tight-
en because the bunks must be able to rotate enough to conform to
the bottom of the boat.
Repeat on the other bunk.
POST LOAD GUIDES (See Diagram A - Detail C)
Locate the post load guides. Position one of them as shown on
the rear cross member of the trailer frame. Drop a 1/2” X 3-9/16” x
7-1/4” square U-bolt down through the holes in the load guide so
one leg of the U-bolt is on each side of the cross member. Pace on
an adjustable bunk bracket clamp so the legs of the bracket fit up
around the cross member. Place on one of the 1-1/2” wide X 5” long
straps over the legs of the U-bolt. Next place a cup washer onto the
U-bolt legs so the cup is down. Place on a 3” compression spring
on each leg of the U-bolt, then a second cup washer on each U-bolt
leg so the cup is up. Secure the parts on the U-bolt legs with 1/2
flange lock nuts. Tighten. Note that the load guide can be slid in out
from the center line of the trailer to accommodate for different width
boats. Adjust for width once the boat is on the trailer.
Repeat the above process on the other load guide.
