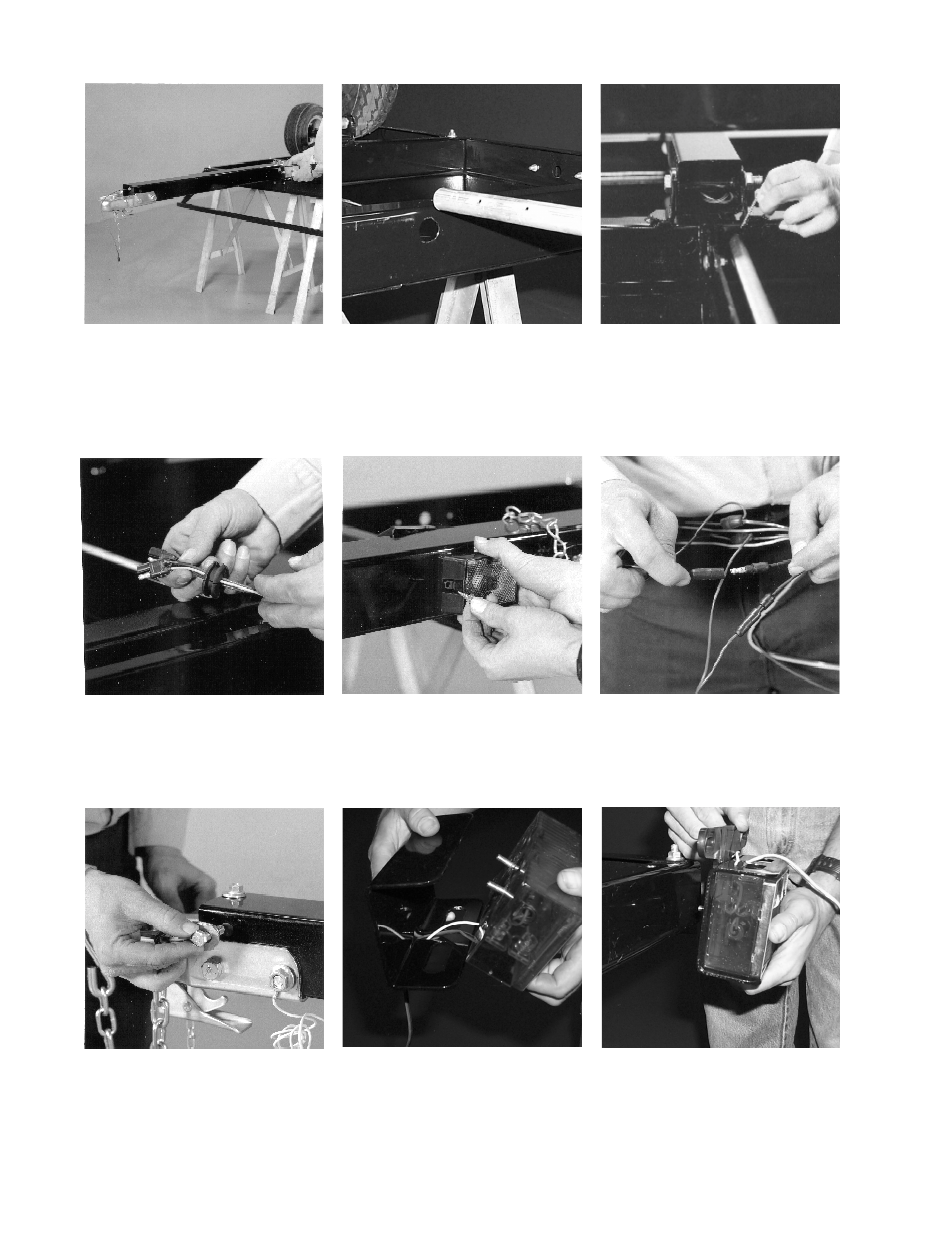

SS1181 Light Kit Assembly Instructions
Slide the wire tube (Ref.#3) into the rear
cross channel and through the chasis. Note
that the two pre-drilled holes on the wire
tube must be inserted in first as shown.
Thread the frame harness wires just
installed in the tongue into the wire tube.
Pull wires out the rear of the tube so that
the plugs are exposed. Run the frame harnesss wires through the
hole on the top side of the tongue when the
trailer is in it’s normal upright position. Push
the wires to the rear of the tongue and
thread the wires through the wire hole at
the top side of the tongue in it’s normal
upright position. Place grommets in both
wire holes.
Insert the side marker light wires through
the large pre-drilled hole in the side of the
tongue. Pull out the front of the tongue.
Mount the side marker light to the tongue in
the pre-drilled holes using #10-16 X 3/4”
self-drill screws (Ref.#9) as shown. Connect wires from the side marker light
to the plugs provided on the frame harness
- brown on brown.
Insert a 3/8” X 1-1/4” hex bolt with a 3/8”
flat washer and safety chain through the
lower hole on the front of the tongue.
Secure with a 3/8” flat washer and 3/8”
flange lock nut. repeat procedure on
opposite side of the tongue. Loosen and
remove the rear hex nut holding the coupler
to the tongue and place the white ground
wire on the bolt threads. Replace the nut
and tighten.
Insert two (2) 1/8” X 1-1/2” cotter key
(Ref.#14) through the pre-drilled holes on
the wire tube (Ref.#3) as shown. Separate
the legs of the cotter key to secure.
Install molded grommets over wires to
secure in the wires in hole next to the wire
tube.
Notice that the left taillight has the yellow
and brown wire. Slide the taillight into the
light channel. Install the license plate
bracket over the bolts on the taillight. Attach
to the rear crossmember and secure with
the hardware provided with the taillight. Place the taillight into the light channel with
the green/brown wiring and white ground-
ing wire fed through the wire hole as
shown.
