SETTING THE CONDITIONS
The C82310* interface card has two sets of DIP switches,
and five jumpers. These switches and jumpers are used
for selecting various interface operations.
Card layout

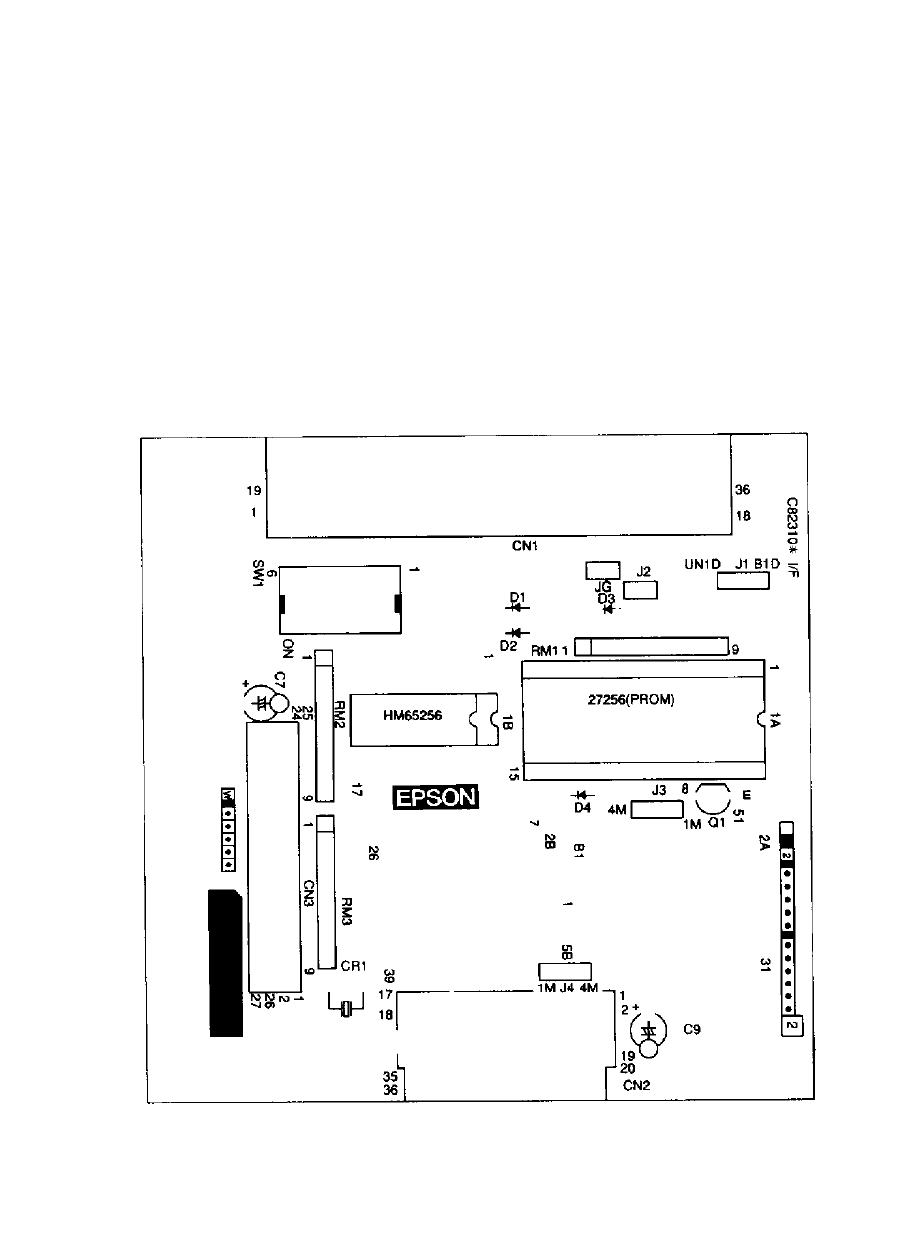

The figure below shows the layout of the C82310* card
and the locations of the DIP switches and jumpers.
Figure 2. Card layout
4
