Energy Tech Laboratories EDP70 User Manual
Page 31
MI00/10056 rev.1--05/2001-- page
31

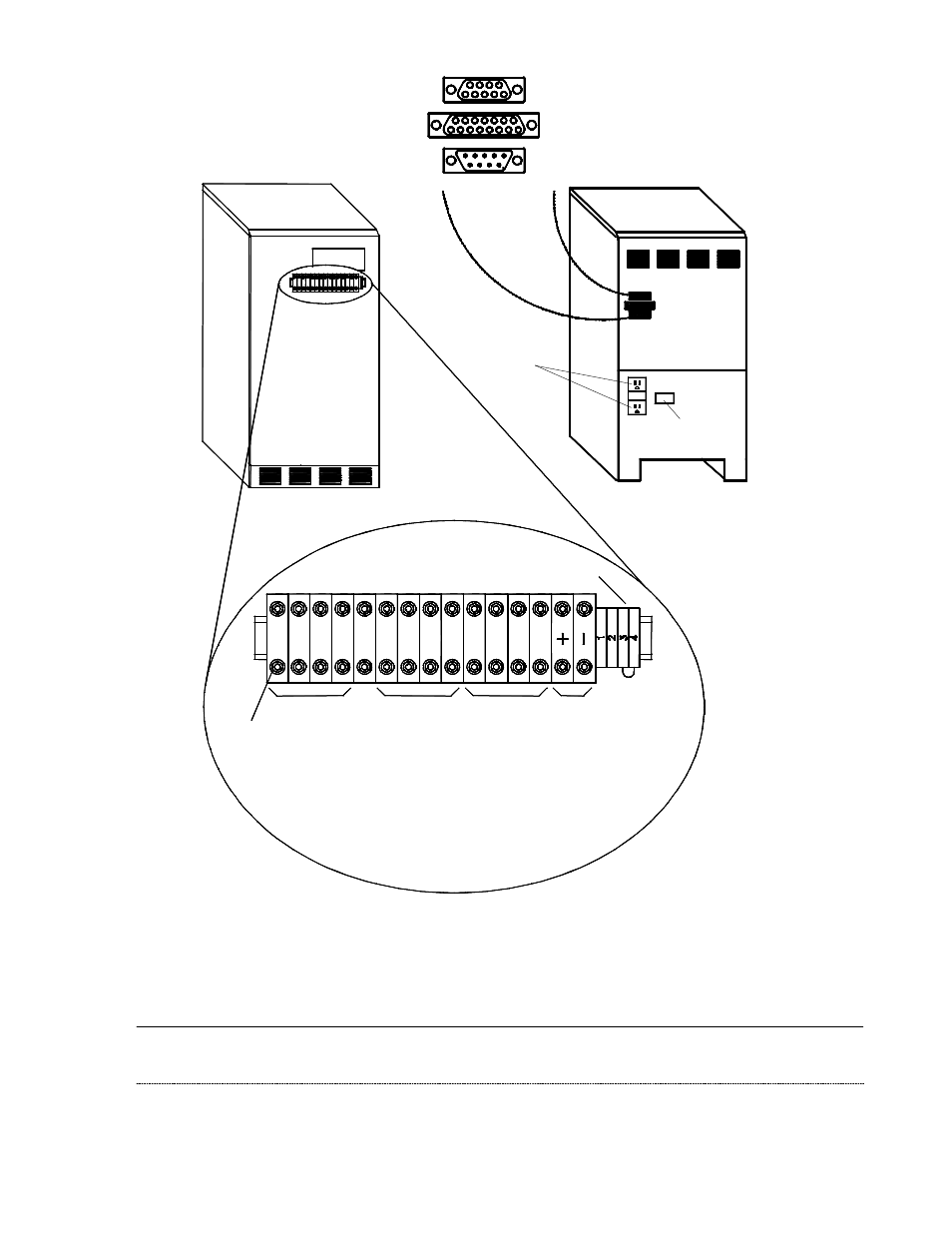

Figure 18 - 24 – 12/18/24kVA: Cable Connections
Modem and
Multicom
power supplies
V1
U1
W1N PE U V W N
V2
U2
N
W2
RESERVE
INPUT
GROUND
M6
sec. max 14 AWG
PRIMARY
INPUT
OUTPUT
EXTERNAL
BATTERIES
Battery Charger
Inhibited
E.P.O.
FRONT
Label
REAR
Computer relay
interface - FEMALE
RAU - FEMALE
RS232 - MALE
