Parts 7-4

CI-9111

7.2 REMOTE SET REGULATOR BASIC PARTS

Parts Referenced in Figure 7-3

Item

Description

Part Number


103 Diaphragm

383825-01-6

104 Ring,

Regulator

Exhaust

385389-01-9

105

Base, Pressure Regulator Ass’y.

342172-00-0

106 Spring,

Helical

Compression 307905-00-4

107

Screw, 10-32 x 1 SHCS

396400-01-9

108

Screw, 7/16 x 20 Pilot Retaining

297261-00-2

110 Plunger,

Regulator

307908-00-3

111 Diaphragm,

Ass’y.

Exhaust

396394-01-9

112 Spacer

297248-00-6

113 Block,

Regulator

390570-01-0

116 Diaphragm,

Regulator 385268-01-7

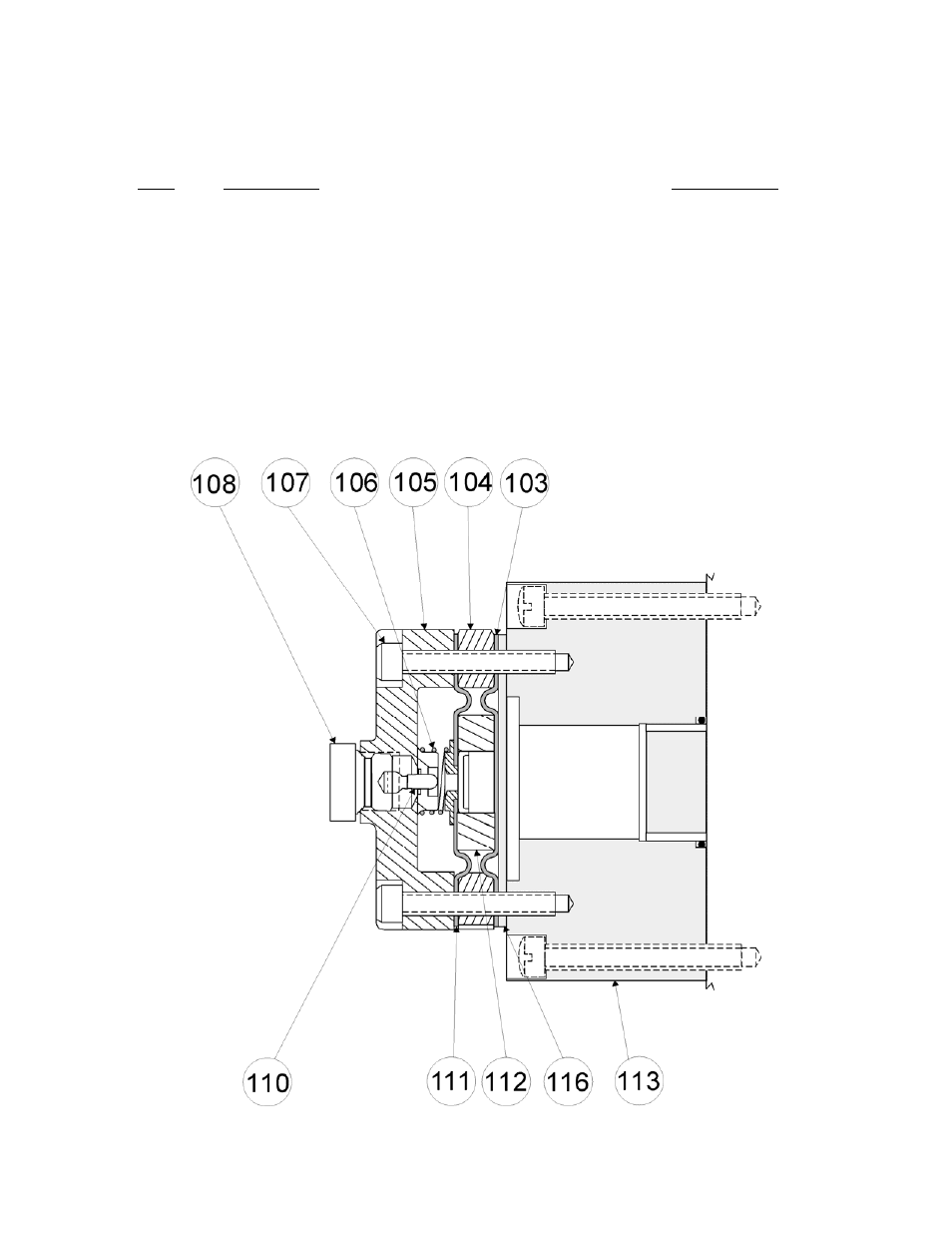

Figure 7-3 – Remote Set Regulator Assembly Basic Parts
