2-11
Touch Interface Connection
Yo ur touchmonitor comes with one of the following touchscreen connector cables: Serial (RS-232)
cable or USB cable. (For Wi ndows 98, 2000, Me and XP systems only.)
To set up this display, please refer to the following figures and procedures:
Serial or USB or both serial and USB Connection

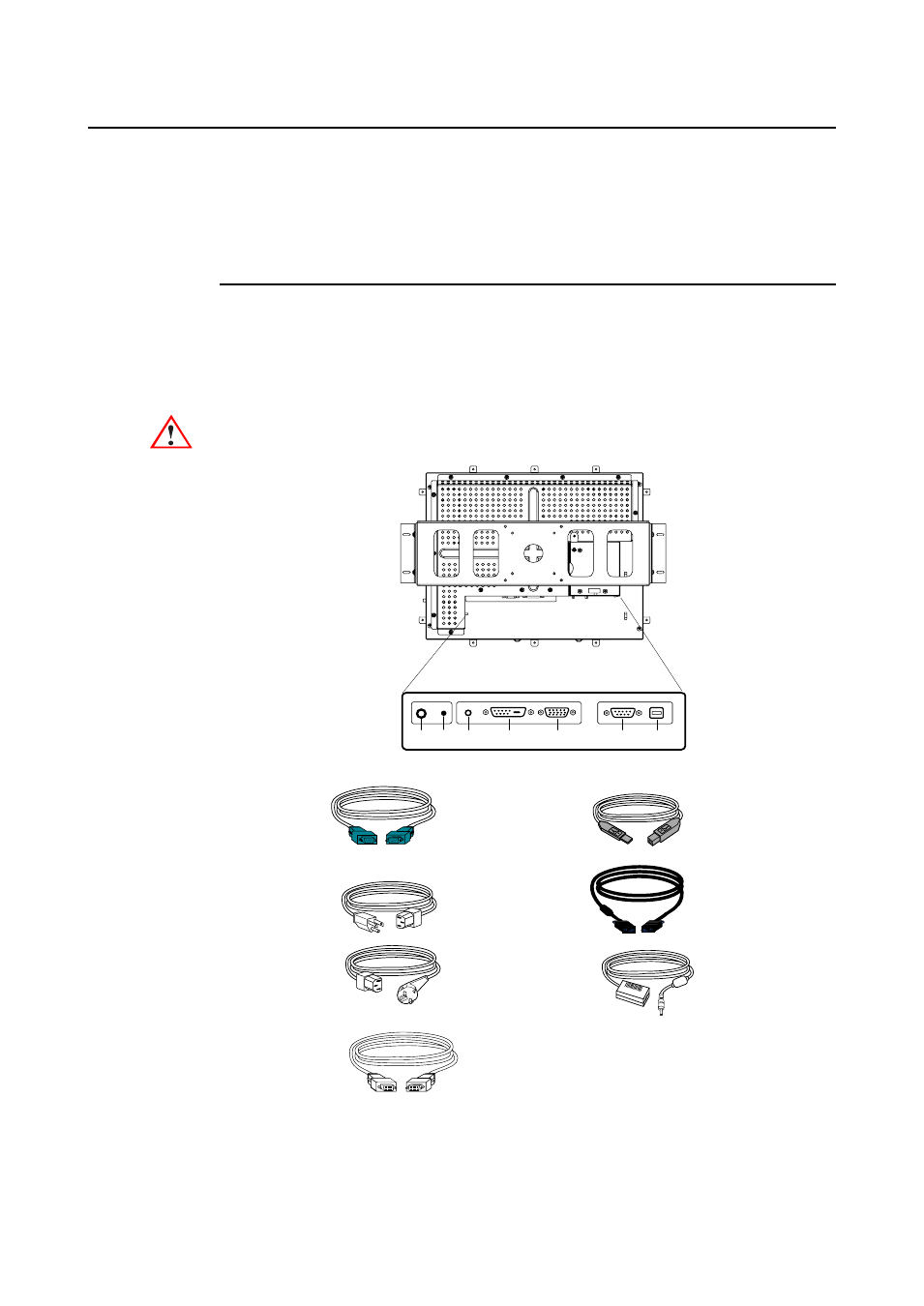

The following illustrations guide you step by step in connecting your touchmonitor using a serial or
USB or both serial and USB cable connection.
When both serial and USB cable are connected with PC and touchscreen at the same time, the touch
function is based on USB connection.
CAUTION Before connecting the cables to your touchmonitor and PC, be sure that the computer and
the touchmonitor are turned off.
European monitor
power cable
Monitor
power cable
(US/Canada)
Serial touchscreen
cable(optional)
Video cable
Adapter
USB cable
(optional)
POWER
SWITCH POWER FEMALE 9-PIN SERIAL
TOUCHSCREEN CONNECTOR
USB CONNECTOR FEMALE DVI-D
VIDEO CONNECTOR
CONNECTIONS ON UNDERSIDE
OSD
REMOTE
DVI-D video cable
FEMALE 15-PIN
VIDEO CONNECTOR
