Operation, cont’d
MAV Series Switchers • Operation
3-10
1
1
2
2
3
3
4
4
5
5
6
INPUTS
ENTER
OUTPUTS
6
7
7
8
9
10
11
PRESET VIEW
ESC
VIDEO
AUDIO
12
9
10
11
12
8
CONTROL
I/O
13
13
14
14
15
15
16
16
VIDEO
E
8
3
AUDIO
E
LED key: = off, = on
Press

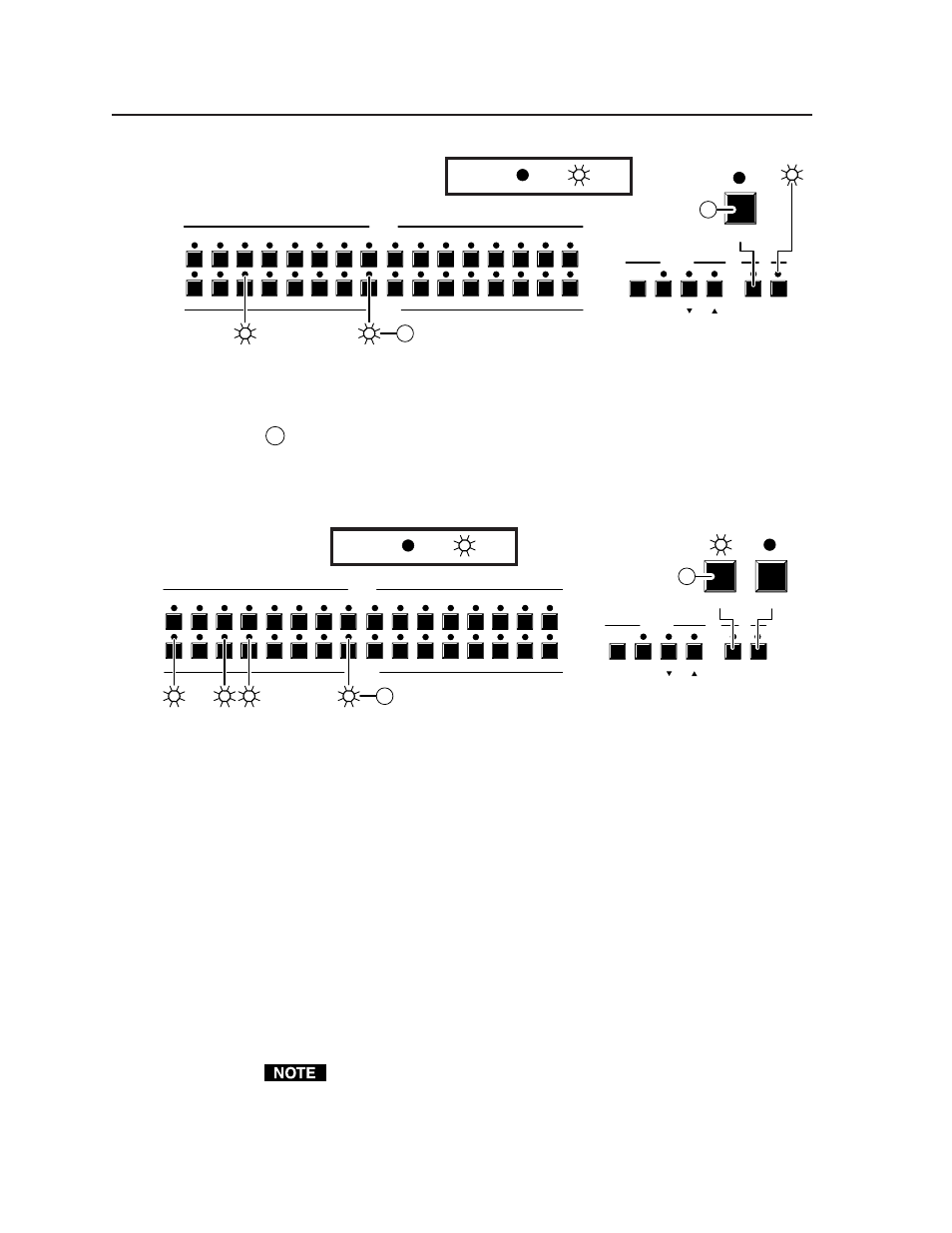

Figure 3-10 — Example 4, step E: Viewing the current configuration,
audio only
F
Press and release the Video and Audio buttons to toggle the Video LED on
and the Audio LED off (figure 3-11).
If video ties are established for input 5, the output LEDs for all video outputs
tied to input 5 light. If no ties are established for input 5, all output LEDs turn
off.
1
1
2
2
3
3
4
4
5
5
6
INPUTS
ENTER
OUTPUTS
6
7
7
8
9
10
11
PRESET VIEW
ESC
VIDEO
AUDIO
12
9
10
11
12
8
CONTROL
I/O
13
13
14
14
15
15
16
16
F
8
3
1
4
VIDEO
AUDIO
F
LED key: = off, = on
Press
Press
Figure 3-11 — Example 4, step F: Viewing the current configuration,
video only
Muting and unmuting video and/or audio
Individual outputs can be muted or unmuted by doing the following:
1
.
Press the Esc button to clear any input LEDs, output LEDs, or control LEDs
that may be on.
2
.
Press and release the View button.
3
.
Select video, audio, or both to mute or unmute by pressing the Video and/or
Audio buttons.
4
.
One at a time, press and hold the output button(s) for the desired output(s)
for approximately 2 seconds. The output LED(s) for the selected output(s)
blink to indicate the mute or return to their previous state to indicate the
unmute.
5
.
Press and release the View button to return to normal switcher operation.
1.
You can mute video and audio, video-only, or audio-only outputs.
Pressing and releasing the Video and Audio buttons toggles each selection
on and off.
