Operation, Operation, cont’d, Front panel controls and indicators – Extron Electronics MAV Series User Manual

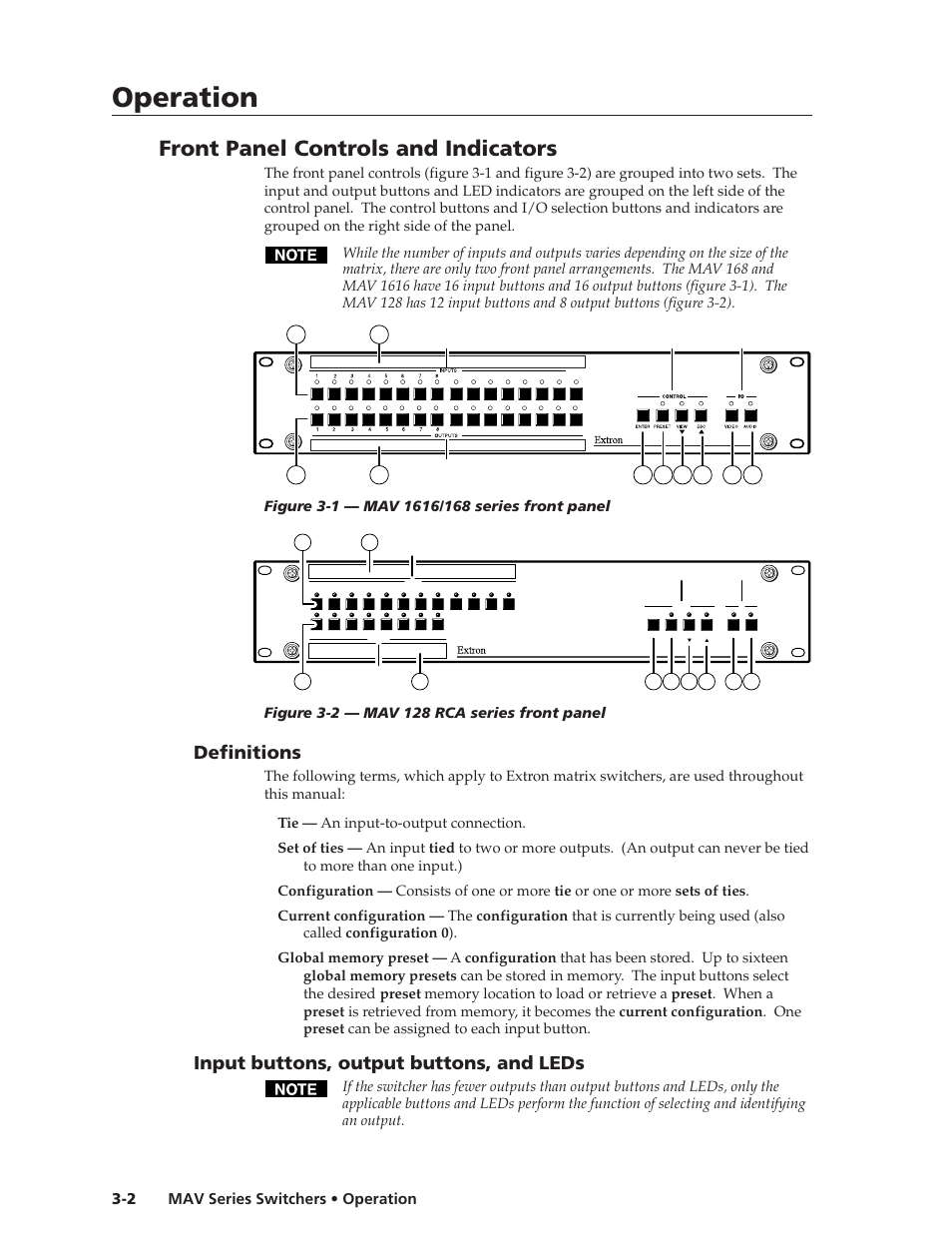

Page 26: Definitions, Input buttons, output buttons, and leds, Mav series switchers • operation 3-2
