Grass Valley Trinix Back-Up Power Supplies Nov 16 2012 User Manual
Page 38
Trinix — Installation and Service Manual
38

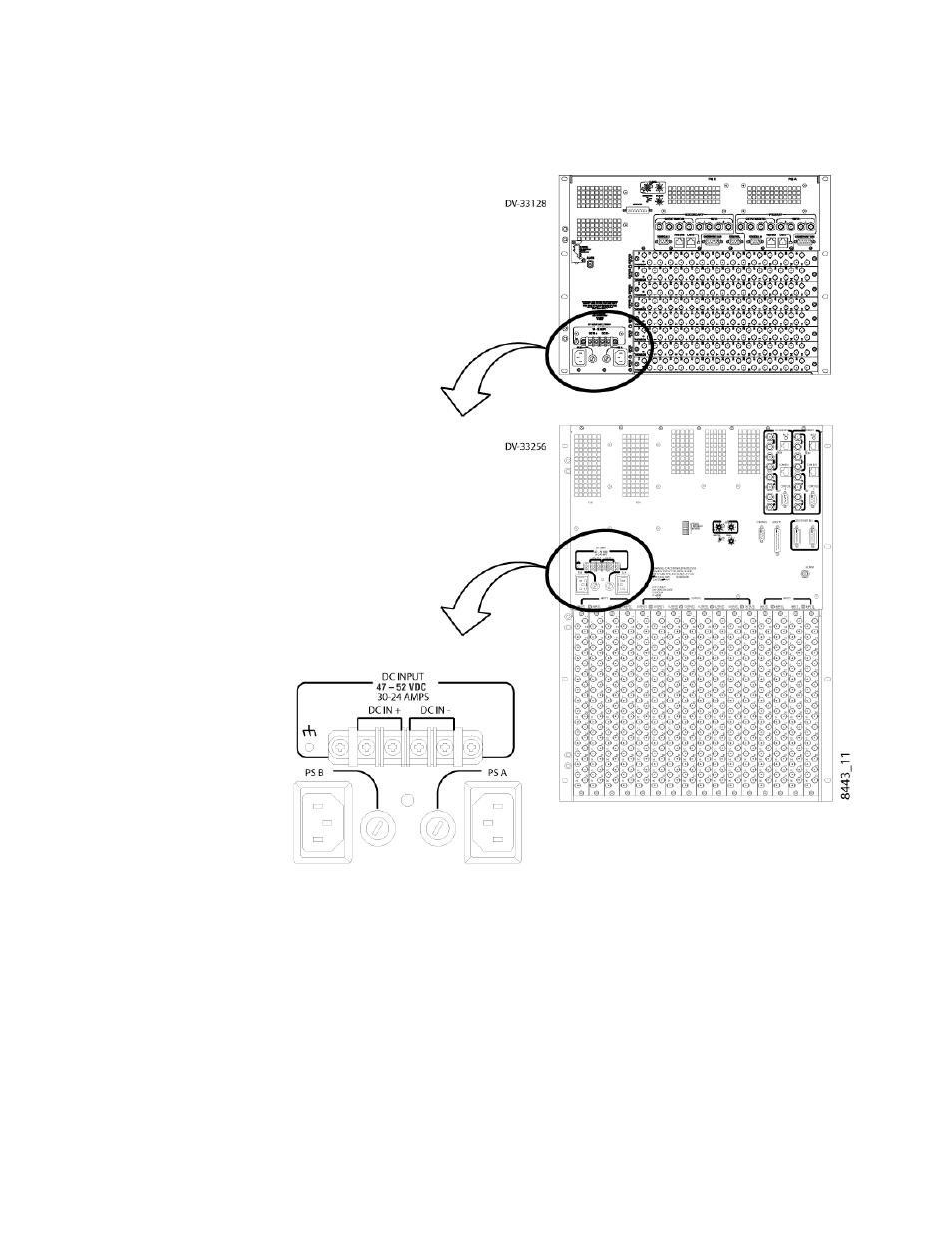

Figure 1. Location of DV-33128 and DV-33256 Power Supply Connections
Installation Procedure - DV-33128 and DV-33256 Units
1.
Install the supplied 1RU Power supply rack-power supply frame:
a.
Install the external power supply frame in a suitable 19-inch
equipment rack.
