T2 ― User Manual ― Remote Control(SP1) ― 7
Functions
3 R1-Remote mode
On R1, T2 works as a device (slave) and receives commands sent from •
external controllers.(Supports AMP protocol only.)
* For details on AMP commands, see "AMP" on page 13.
The Remote settings in Config only take effect on VTR controls. They •
don't take effect in the R1-Remote mode.
4 GPI input
Via the GPI input port (6 pins), T2 can be controlled. •
Input settings can be specified on the setting dialog, displayed by
pressing the Config button and choosing GPI.
* The procedures in the Workstation mode are explained here.

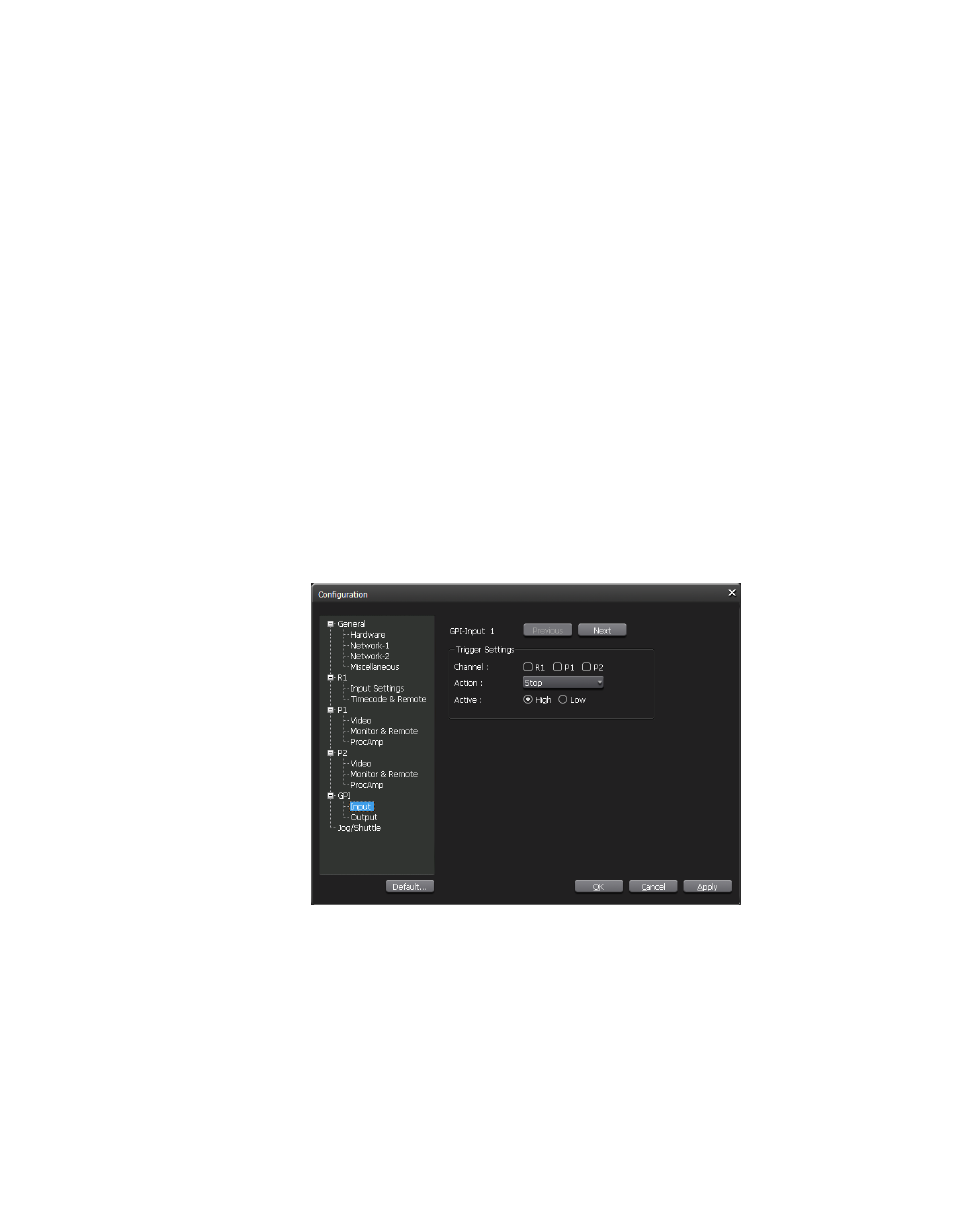

GPI Input settings
* See the "T2 User Manual – Workstation mode –" for details.
Trigger channel (R1, P1, P2) : Multiple channels can be simultaneously •
chosen.
Trigger Action •
play •
stop •
record •
