85
Misc. Topics
Chapter 8 provides the following.
Topics
LCD Buttons
The 16 LCD buttons have 3 lines of text, 8 characters each. The buttons can be of 7 colors in 4
brightness levels: high, medium, low, and off. “Off” is not quite black
—
you can read black text
on the “off” background.
The following is an approximate representation of the button colors:

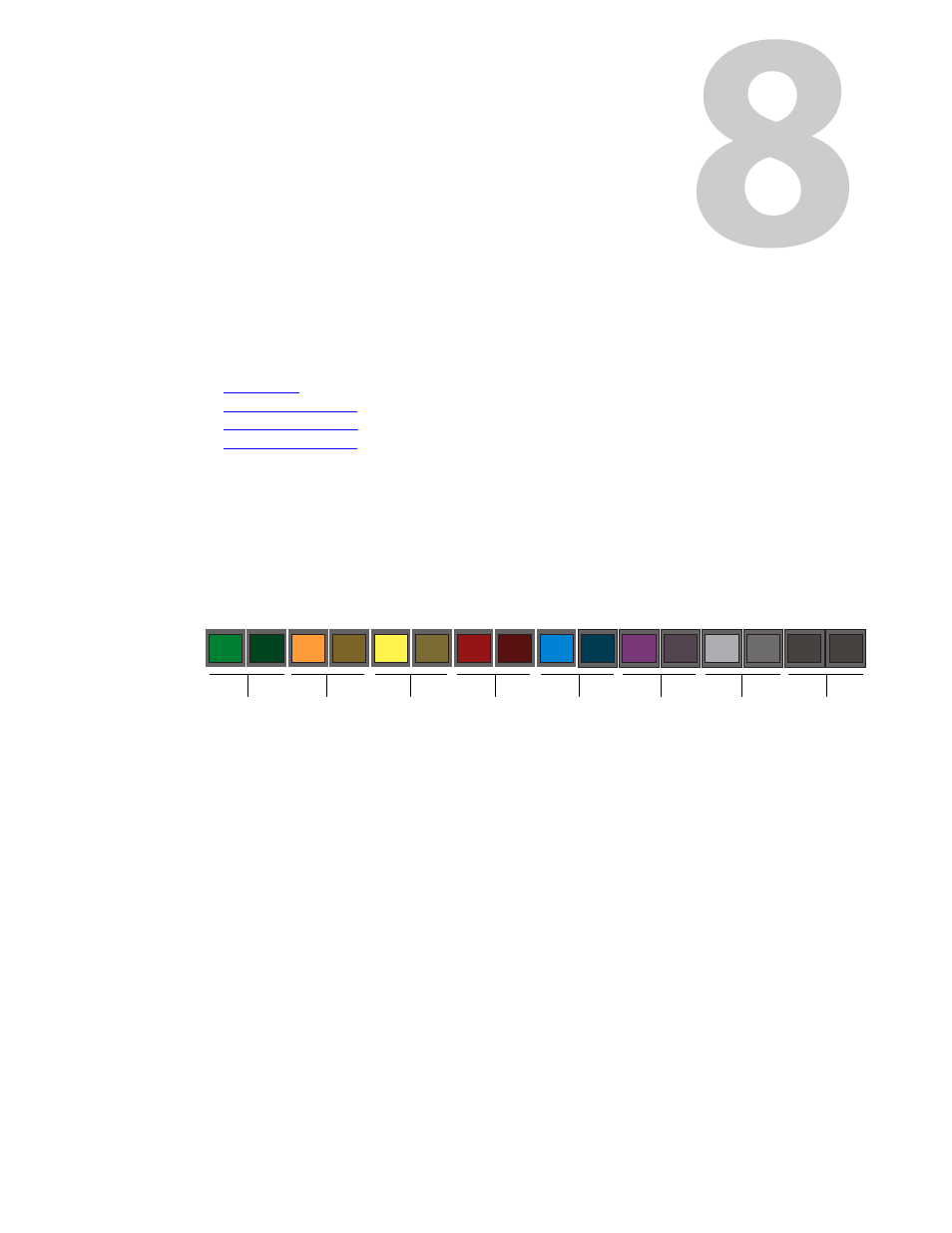

Fig. 8-1: Button Colors
The best way to view this illustration is on a computer monitor. A color printer cannot represent
these colors nor can a black and white printer.
Each color is represented in Figure 8-1 as a (high-tally, low-tally) pair.
The colors of the up and down buttons are fixed. When they are off, they are white. When they
are on, they are said to be “amber.” This amber is not the same as for the LCD buttons: it is pale
and almost yellow.
The buttons are 24.5mm × 23.5mm with the LCD portion about 20mm × 16.5mm. The button
legend appears in a 64×32 pixel matrix.
Scroll Button Legends
You can create legends for the two up/down scroll buttons. Use a desktop publishing program
to create your own button legends. The legends should be transparent and no larger than
0.40”× 0.40” (10mm square). A 3/8” (9.5mm) square insert will allow a little clearance.
The clear plastic material used for overhead transparencies is suitable for printing legends.
Green
Amber
Yellow
Red
Blue
Purple
Grey
Off (Dark)
