1) Local Area Network (LAN)
The Broadband router’s 4 LAN ports are where you connect your LAN’s PCs, printer servers, hubs and switches etc.
2) Wide Area Network (WAN)

The WAN port is the segment connected to your xDSL or Cable modem and is linked to the Internet.

3) Reset
The Reset button allows you to do one of two things.

1) If problems occur with your router, press the router’s reset button with a pencil tip (for less than 4 seconds)

and the router will re-boot itself, keeping your original configurations.


2) If problems persist or you experience extreme problems or you forgot your password, press the reset button

for longer than 4 seconds and the router will reset itself to the factory default settings (warning: your original
configurations will be replaced with the factory default settings)


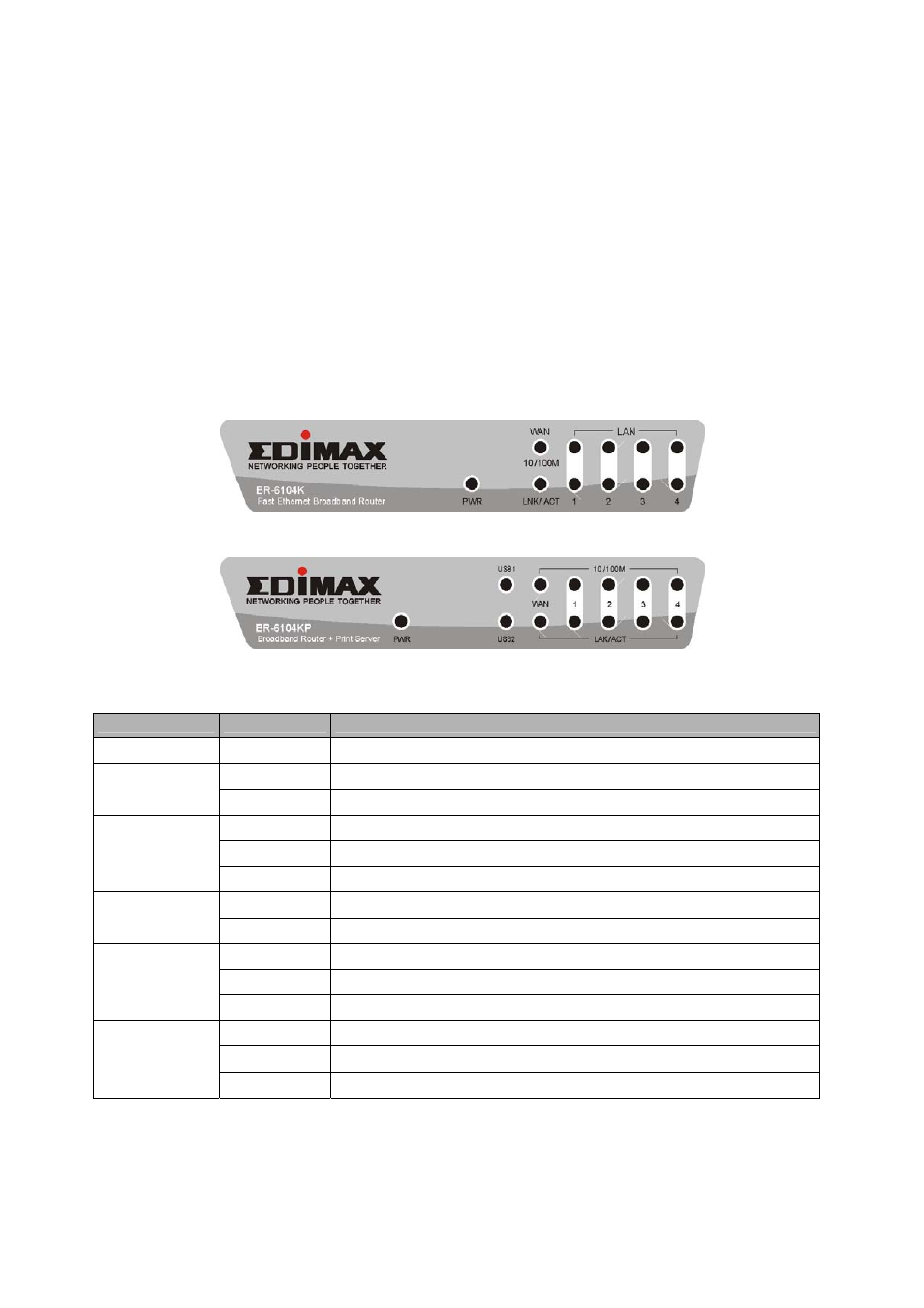

Front Panel


On the router’s front panel there are LED lights that inform you of the router’s current status. Below is an explanation of
each LED and its description.

BR-6104K

BR-6104KP

LED

Light Status

Description

PWR

ON

Router’s power supply is on

ON

WAN port 100Mbps is connected

WAN 10/100M

Off

WAN port 10Mbps is connected

ON

WAN is connected

Off

No WAN connection

WAN LNK/ACT

Flashing

WAN port has Activity (ACT), data being sent

ON

LAN port 100Mbps is connected

LAN 10/100M

(Port 1-4)

Off

LAN port 10Mbps is connected

ON

LAN is connected

Off

No LAN connection

LAN LNK/ACT

(Port 1-4)

Flashing

LAN port has Activity (ACT), data being sent

ON

Printer is connected

Off

No Printer connection

USB 1-2

(BR-6104KP only)

Flashing

Printer is activity

5
