September 23, 2008 Lx0 RAID/Open SAN Instructions 7
Bind disks

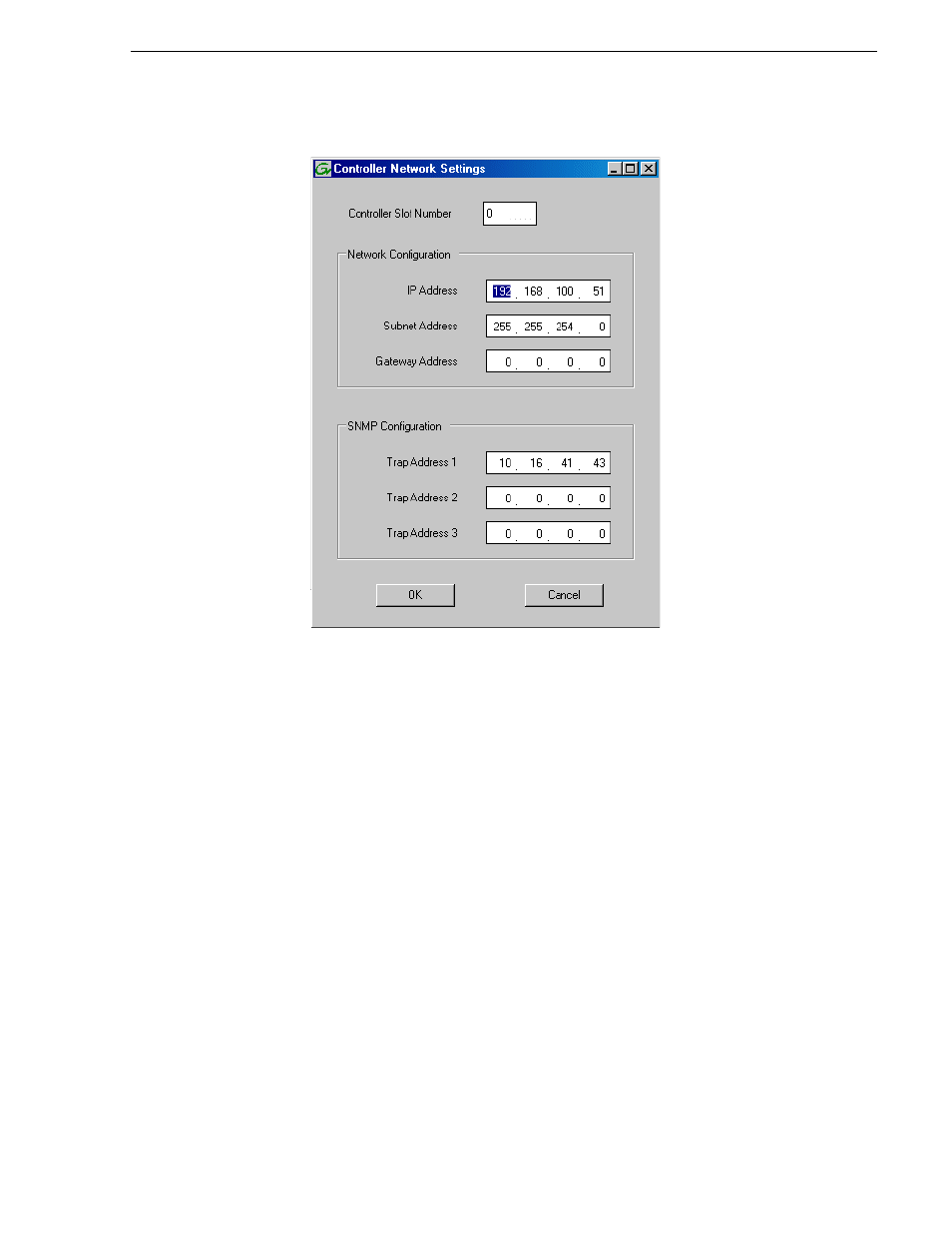

3. In the Controller Slot Number field enter 0 and then press Enter . The settings from
controller 0 are loaded into the Controller Network Settings dialog box and are
available for you to modify.
4. Enter the control network IP address and other network settings.
5. You want SNMP trap messages go to the NetCentral server PC, so for SNMP
Configuration enter the IP address of the NetCentral server PC. You can also enter
IP addresses for other SNMP managers to which you want to send SNMP trap
messages.
6. For the RAID chassis with two controllers, in the Controller Slot Number field
enter 1 and then press Enter . The settings from controller 1 are loaded into the
Controller Network Settings dialog box and are available for you to modify. Repeat
the previous steps to configure controller 1.
7. Click OK to save settings and close.
8. Continue with the next procedure “Bind disks” .
Bind disks
1. If you have not already done so, open Disk Utility as instructed in the earlier
procedure.
2. In Disk Utility, click View | Refresh .
