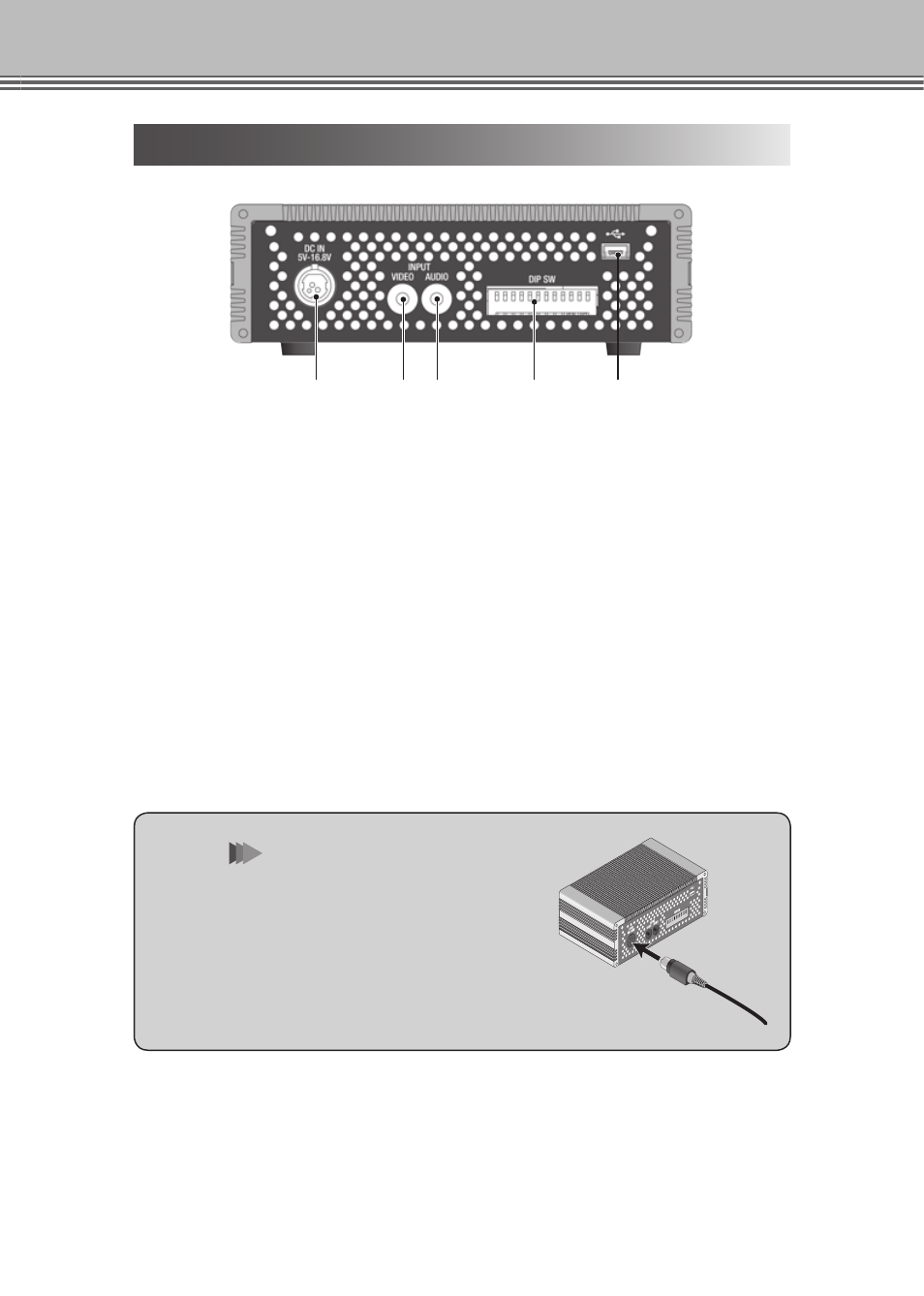

3.2 Rear panel
(1) (2) (5)
(1) Power connector
Connects to the DC plug of the accompanying AC adapter.
(2) VIDEO INPUT MODE switch
Use the switches to choose the video input. See page 8 for details.
(3) AUDIO INPUT MODE switch
Use the switches to choose the audio input. See page 8 for details.
(4) DIP switches
Use the switches to choose input/output settings. See page 6 for
details.
(5) USB port
Used for firmware update.
Note To connect the DC plug to the
ADVC G1, check the direction of
the power plug, and set it in the
proper direction.
(4) (3)
