Grass Valley ADVC G1 - Manual (Page 15)

3
3 Part Name and Functions

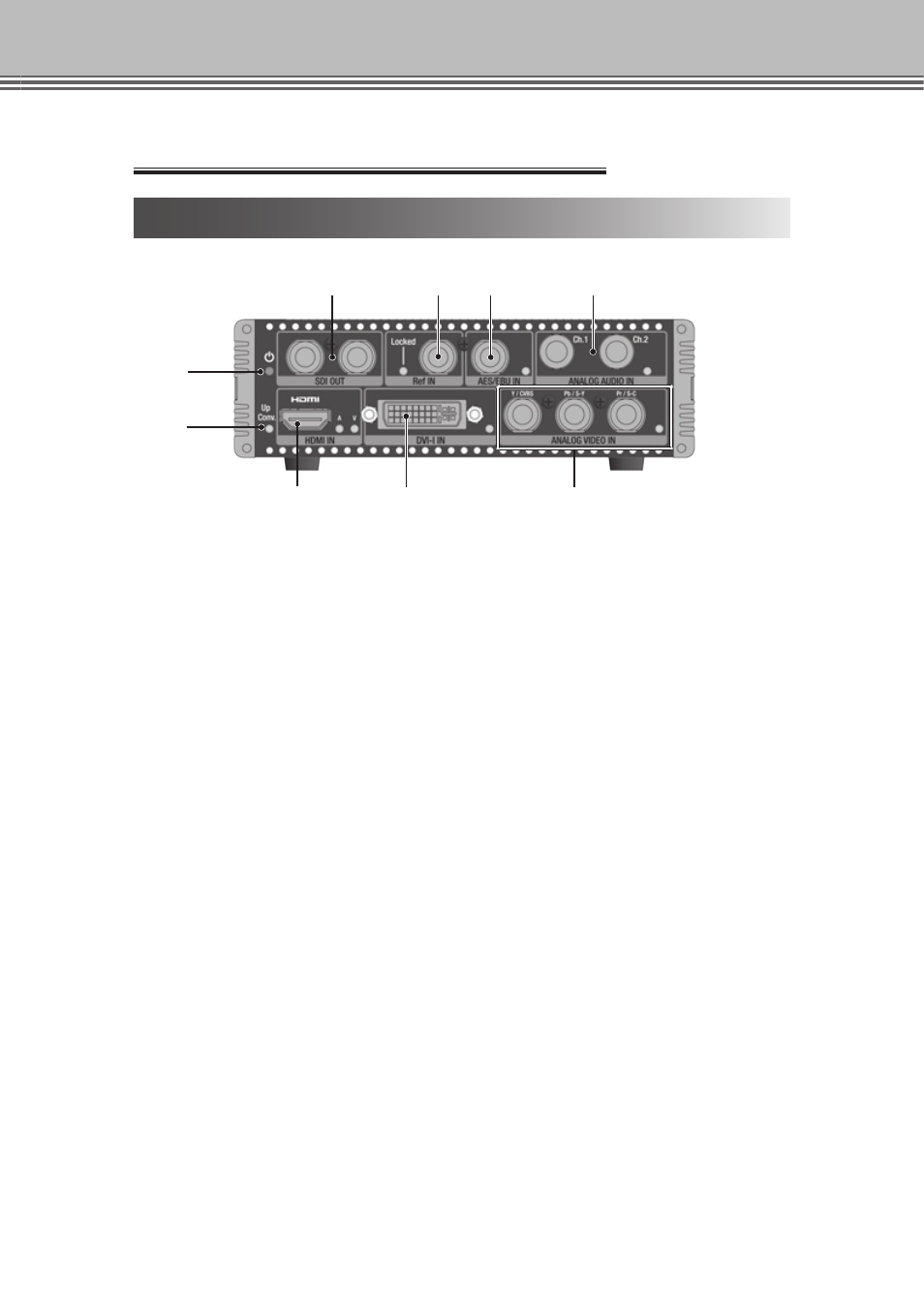

3.1 Front panel
(6)
(2)
(1) Power LED
Lights when the ADVC G1 is operating.
(2) Up Conv. LED
Lights in up-conversion mode.
(3) SDI OUT
3G/HD/SD-SDI output ports.
(4) Ref IN
Reference signal input port. The LED is lit when REF is selected
for reference signal source, and if the reference signal input via
Ref IN can be synchronized.
* The setting of the reference signal source can be configured with DIP SW3.
(5) AES/EBU IN
AES/EBU digital audio input port. The LED is lit when AES/EBU
digital is selected for audio input.
(6) ANALOG AUDIO IN (1/4” TRS 2ch)
Balanced audio input ports. The LED is lit when balanced analog
is selected for audio input.
(7) (8) (9)
(5) (4) (3)
(1)
