8945EDA and 8945EDA-D Instruction Manual 9
Installation
Installation
The front and the rear modules are delivered together as a set.
Installation of the 8945EDA or 8945EDA-D module is a process of:
• Placing the rear module in a rear frame slot,
• Placing the front module in the corresponding front slot, and
• Cabling signal ports.
The 8945EDA and 8945EDA-D modules can be plugged in and removed from a
Gecko Flex frame with power on, without disrupting operation on adjacent running
modules. When power is applied to the module, LED indicators reflect the initial-
ization process (see Power Up
on page 12 ).
Local Configuration
Local configuration of the 8945EDA and 8945EDA-D consists of several switches
as shown in
Figure 2 .

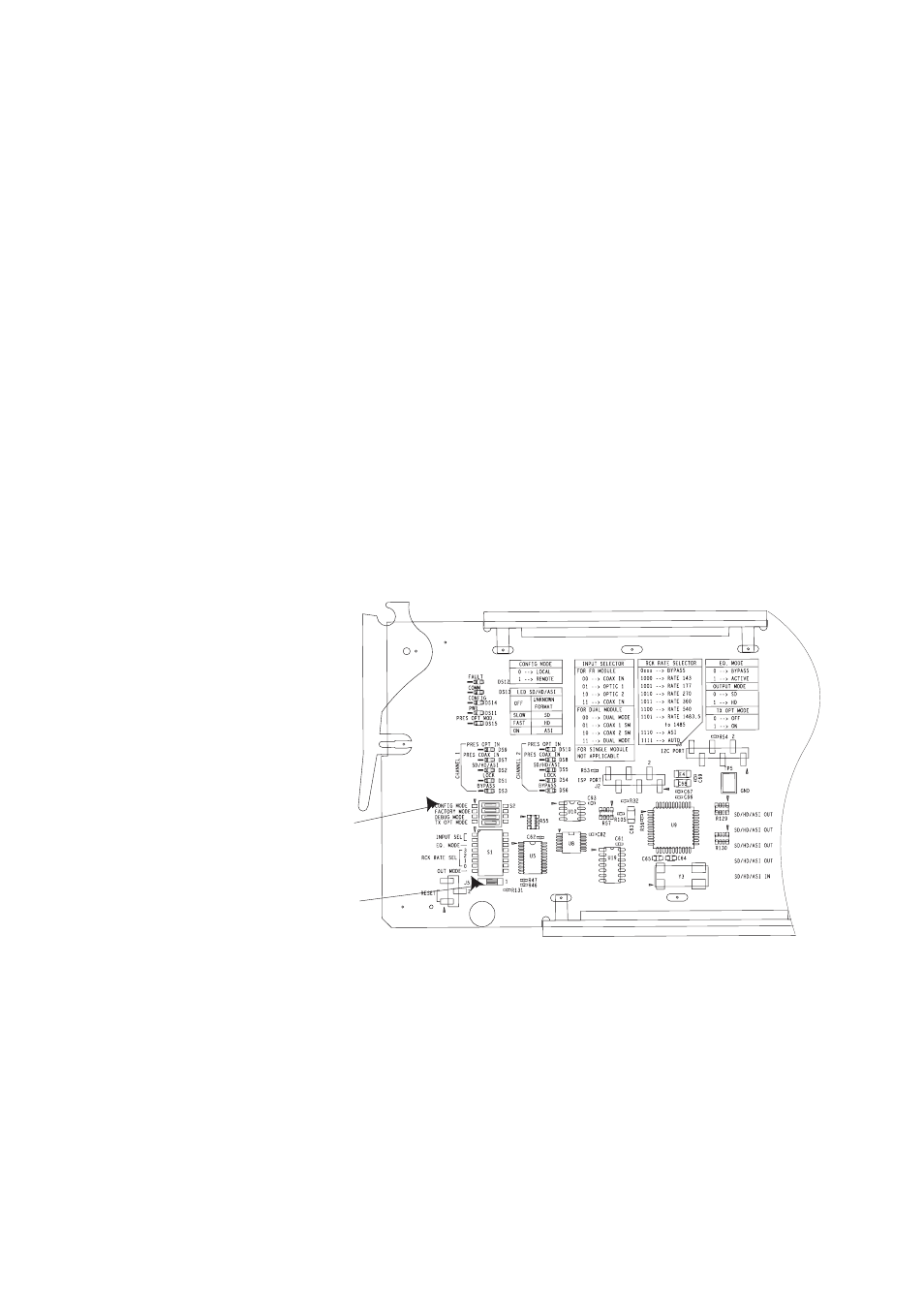

Figure 2. Switches On 8945EDA Module
The Config Mode Switch may be on Remote (1) or Local (0).
When the switch is on the 0 position, the other switches must be manually posi-
tioned.
When the switch is on the 1 position, the other parameters are positioned by the
web page via the NetConfig application.
Config Mode
8436-02 Switch position
