Installation
Module Placement In Frame
8901, 8902, and 8906 Analog Video DA modules can be installed in Gecko
8900 frames and also older version (legacy) 8500 or 8800 Grass Valley
frames.
Remote monitoring is available only with an 8906 module installed in a
Gecko 8900TFN-V or 8900TFN video frame (with an 8900NET module
installed).
Note 8900 Analog Video DA modules installed in 8500 frames require a trace cut
as shown in
Figure 4 on page 14 .
Gecko 8900 Frame
There are ten cell locations in the 8900 video frame to accommodate mod-
ules. These are the left ten locations (
Figure 2 ).
The two cells on the right are allocated for the power supplies. For addi-
tional information concerning the Power Supply module, refer to the 8900
Power Supply manual.
The third cell from the right is allocated for the Frame Monitor or 8900NET
Network Interface module. These modules provide health monitoring and
control options for modules with remote monitoring and control capability.

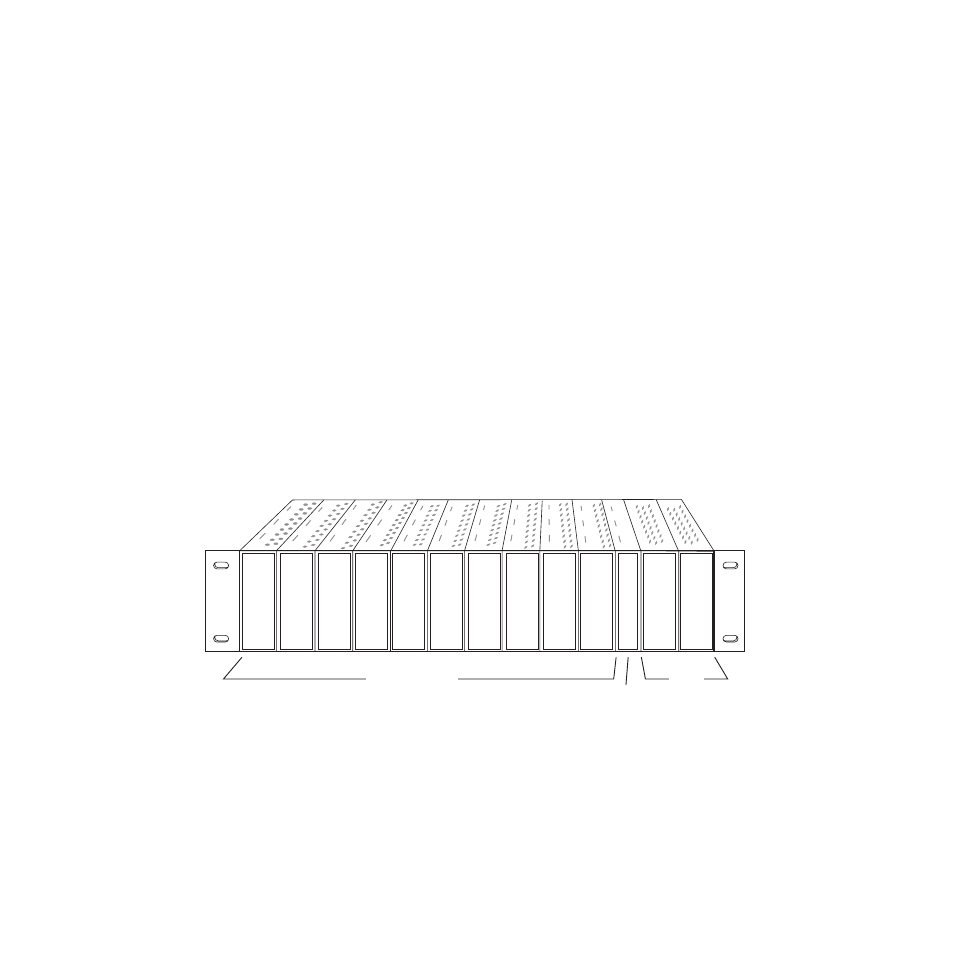

Figure 2. Gecko 8900 Series Frame
Frame Controller or
8900NET Network
Interface Module
Any 8900 Module Power
Supplies
(only)
8271_04
