9 9 9 9 9 Installing the hood
Ceiling Support Structur Ceiling Support Structur Ceiling Support Structur Ceiling Support Structur Ceiling Support Structures es es es es
• This vent hood is heavy.
‘Adequate structure and support must be
provided in all types of installations.
• At the hood location, install 2"x 4" cross framing
between ceiling joists as shown. (2"x 4" are
required to support the weight of the hood.)
• Arrange cross framing in the ceiling to suit the
existing structure.
• Your ceiling joists will be like one of the following
examples.
49-80406 Printed
Italy
04-06
JR
emplate
8-1/2
Dia.
Cut Dia. Wire Access
Cut Dia. Wire Access
Drill3/16”
Pilot Approx.1 1/2” Deep
Drill3/16” Pilot Approx.1 1/2”
Deep
10 1/4” to Centerline
8 1/4” to Centerline
FRONTOFHOOD
8 1/4” to Centerline
NOTE: NOTE: NOTE: NOTE: NOTE: Do not cut the duct opening shown on
the template for the recirculating installation.
IMPOR IMPOR IMPOR IMPOR IMPORT T T T TANT ANT ANT ANT ANT
Framing must be capable of supporting 150lbs. Framing must be capable of supporting 150lbs. Framing must be capable of supporting 150lbs. Framing must be capable of supporting 150lbs. Framing must be capable of supporting 150lbs.
10-1/16"
Install cross-framing
symmetrically over
duct/cooktop
centerline
2x4 cross
framing
Cooktop
outline
7 1/16" 8" duct
Align duct
to center
of cooktop

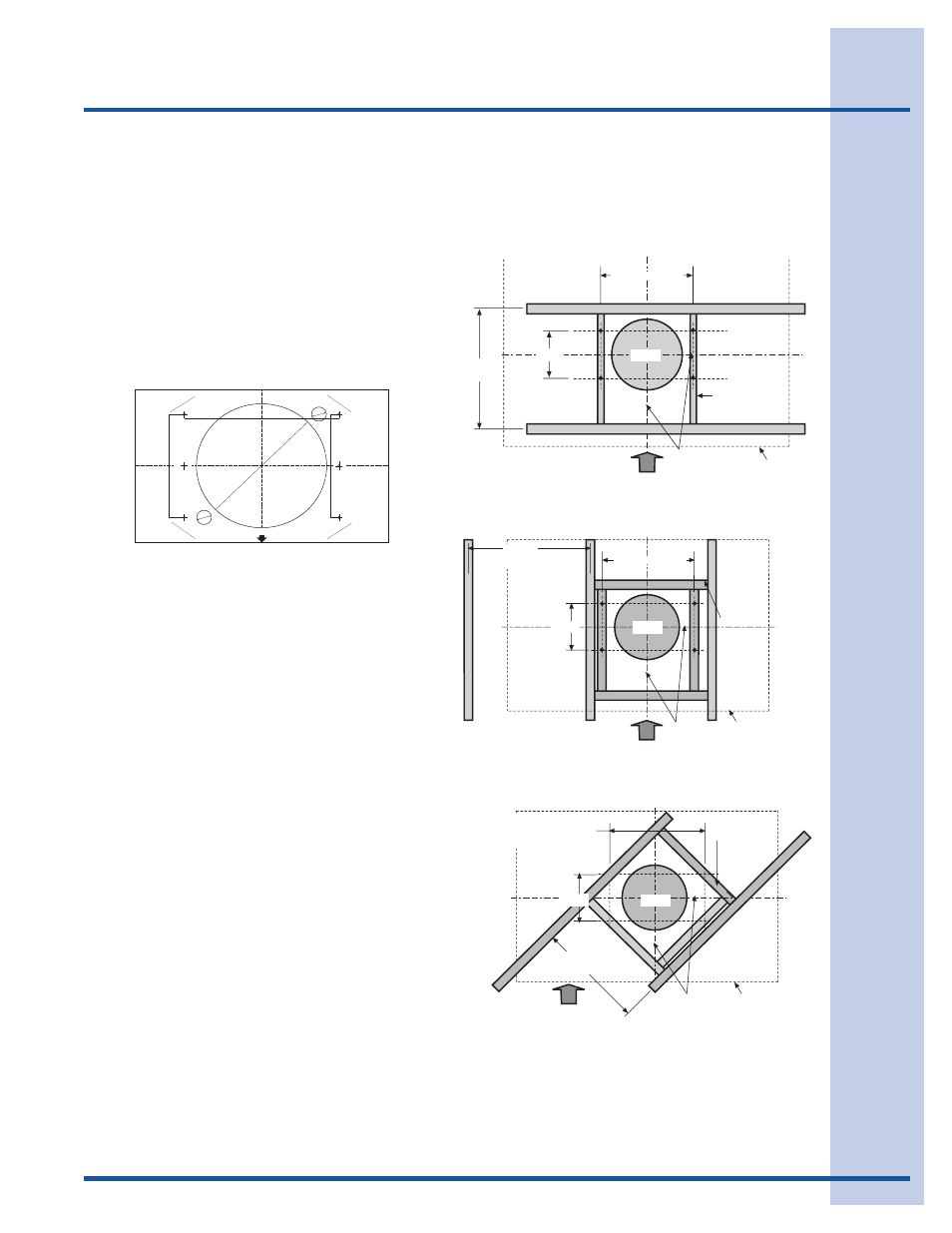

EXAMPLE A
Top view–ceiling joists parallel to front of hood
Front
of hood
8" duct
2x4 cross
framing
10-1/16"
Install cross-framing
symmetrically over
duct/cooktop
centerline
7 1/16"
16" joist
spacing
EXAMPLE B
Align duct
to center
of cooktop
Cooktop
outline
Front
of hood
Front
of hood
16" joist
spacing
Cooktop
outline
Align duct
to center
of cooktop
7 1/16" 8" duct
10-1/16" Install cross-framing
symmetrically over duct/cooktop
centerline
2x4 cross
framing
EXAMPLE C
Top view–ceiling joists run perpendicular to front of hood
Top view–ceiling joists at angle to front of hood
16" joist
spacing
