10 10 10 10 10

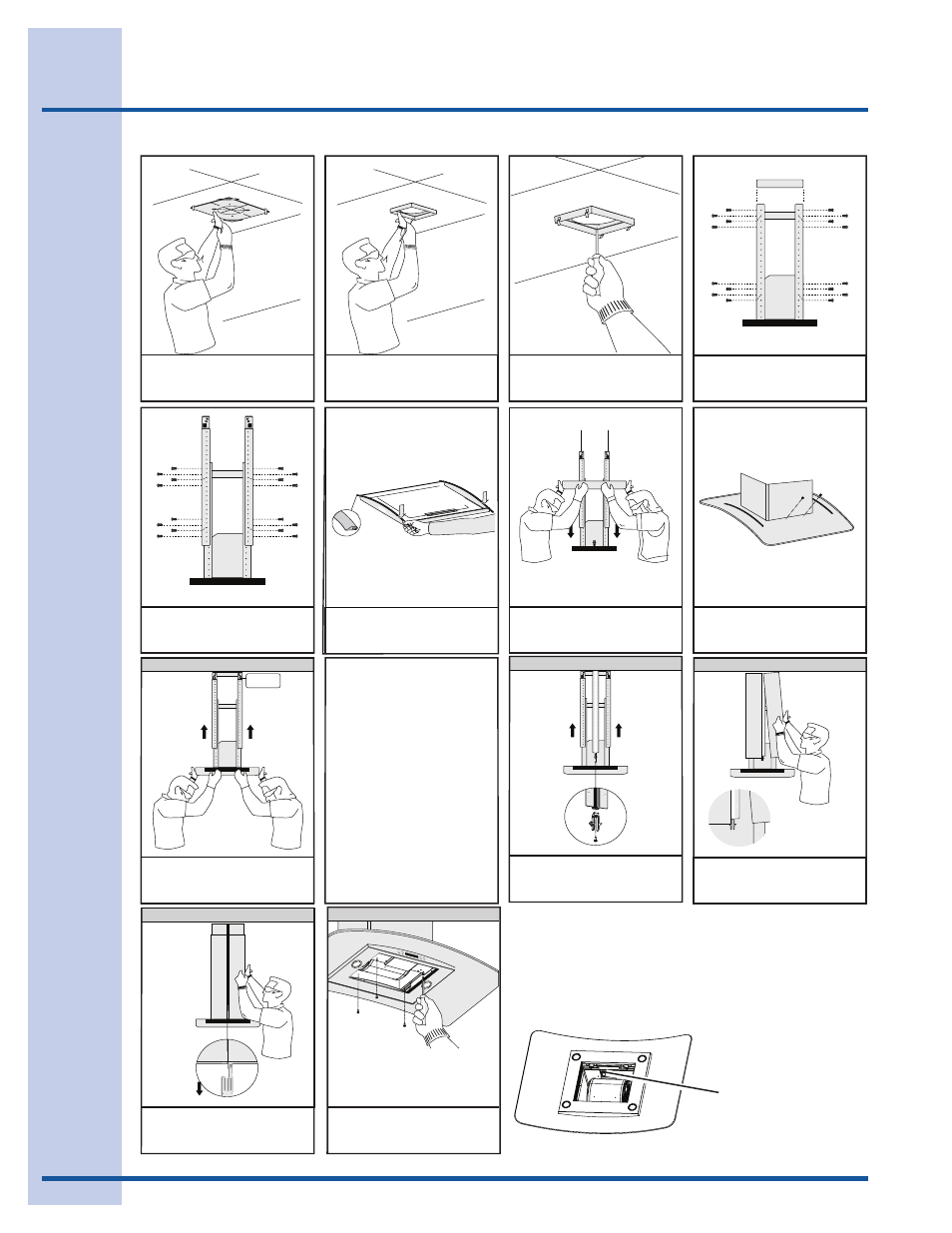

Place the template in the ceiling
considering the instructions for
ceiling support structures.
Mark with a pencil the hole
locations for screws and duct in
the ceiling (see also next page)
Fix the upper horizontal
support with 4 wood screws.
4 wood screws
Attach the vertical supports (inf)
(A) to the hood. Then attach
horizontal support (B) (inf)
(B)
(A)
16 assembly screws
8 assembly
screw
Attach a second vertical
support set to adjust the
vertical distance.
16 assembly screws
2 /side
Place glass brackets using 2
screws by side.
The lower duct cover shall
be secured to rangehood by
4 screws.
Place lower duct covers
using one plastic bracket at
each vertex. (4 needed)
All version:
Perform the electrical
connection.
Vent hood ONLY
Perform the ductwork
connection.
Installation with optional
recirculation kit.
Install the recirculation kit and
connect air deflector to transition
Attach the vertical duct cover
supports using 4 screws. Place
each spring using a screw by side.
click !
Attach the assembly to the
support fixed on the ceiling
Assure with screws (16)
Insert the plastic gaskets on
each side of the hood.
(rear and front)
Place the Glass Canopy onto
the hood. 2 people are
recommended to do this.
SEE NEXT PAGES
FOR FURTHER DETAIL
Place upper duct covers
sliding through until spring
sounds “click”. Then verify
Installing the hood
Instal the grease filter and turn power on at service
panel. Check operation of the hood.
IMPORTANT: If the hood doesn’t switch ON, before
calling for service, check if the internal General ON/
OFF Pushb-utton Switch is switched ON.
General ON/OFF
Push button Switch
Back side of the hood
Frontside of the hood
