14

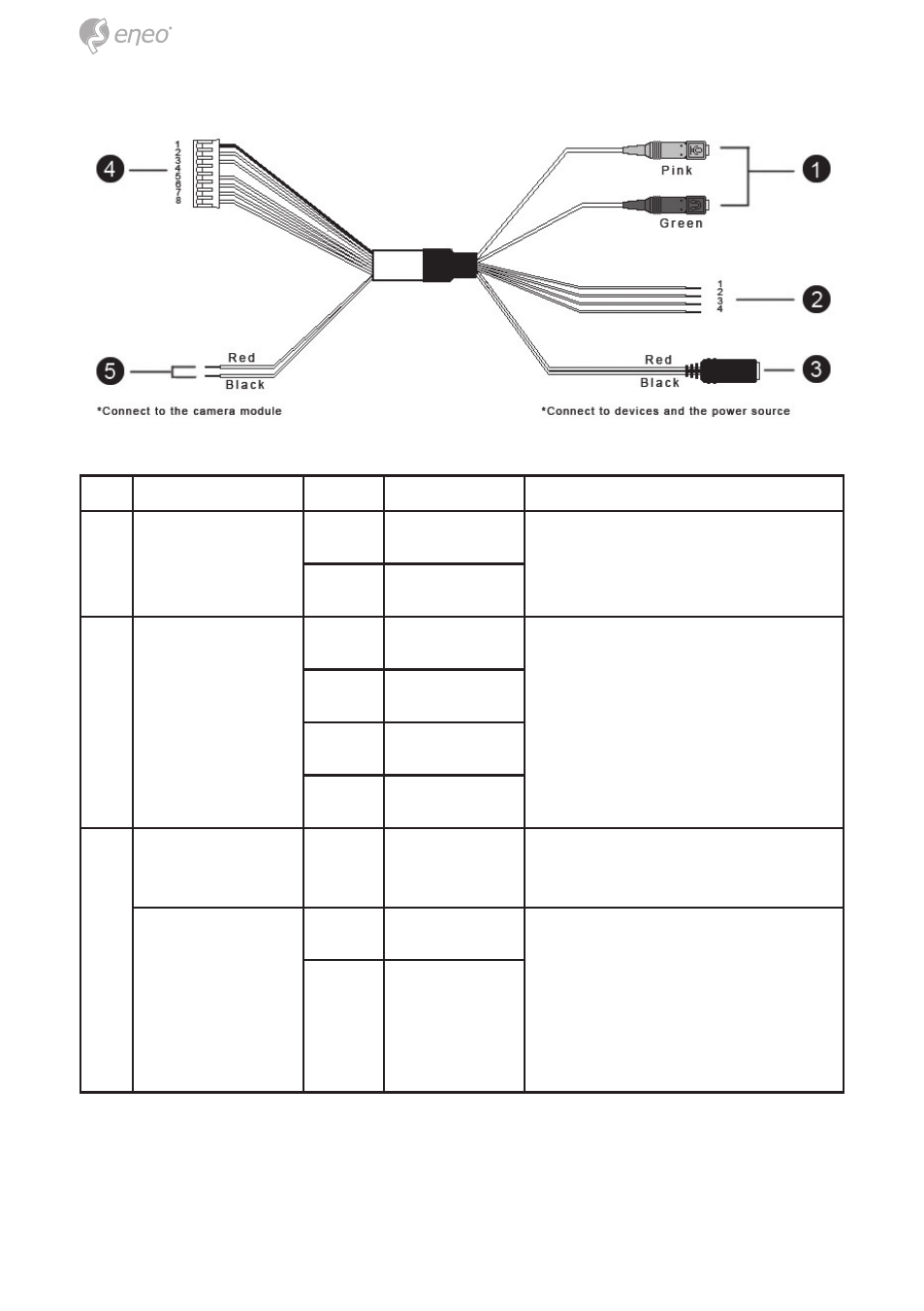

No. Connector Pin Definition Remarks
1 Audio I/O Pink Line In Two-way audio transmission
Green Line Out
2 Alarm (4-Pin
Terminal Block) 1 ALM_IN – Alarm connection
2 ALM_IN +
3 ALM_OUT –
4 ALM_OUT +
3 Power DC Jack - DC 12V Power connection (Tip: +, sleeve:
-)
Power Wires Red AC 24V (+) Remove DC Jack connector
head, and apply AC 24V with
Red and Black wires.
Please refer to the section of
Cable Definition in User’s Ma-
nual.
Black AC 24V (–)
