PAS A
rticulAting
H
edge
c
liPPer
A
ttAcHment
O
PerAtOr
'
S
m
AnuAl
7
1. CUTTING BLADES - Double reciprocating blades mounted to a blade support bar. Double sided blades, are ca-
pable of cutting on either side of the blade.
2. LOWER DRIVE ShAFT ASSEMBLy - Includes the Gear Housing assembly, Flexible Drive Cable, Blade and
Safety Decals.
3. FLEXIBLE DRIVE CABLE - Cable end fits into upper drive shaft coupler. Lubricate drive cable every 25 hours
with ECHO
®
LUBE TM grease.
4. FRONT DRIVE ShAFT GRIP - Cushioned hand grip for gripping drive shaft assembly.
5. hAND GUARD / BLADE LOCK - Locks blade in place for travel / storage. Always assure blade cover is installed
when locking blade.
6. BLADE ADJUSTMENT hANDLE - Provides secure hand grip for adjusting cutting blade angle.
7. BLADE INDEXING RING- Pull ring out and turn 1/4 turn to lockout position when adjusting blade angle.
8. BLADE COVER - Used to cover blades during transport and storage. Remove blade cover before operating unit.

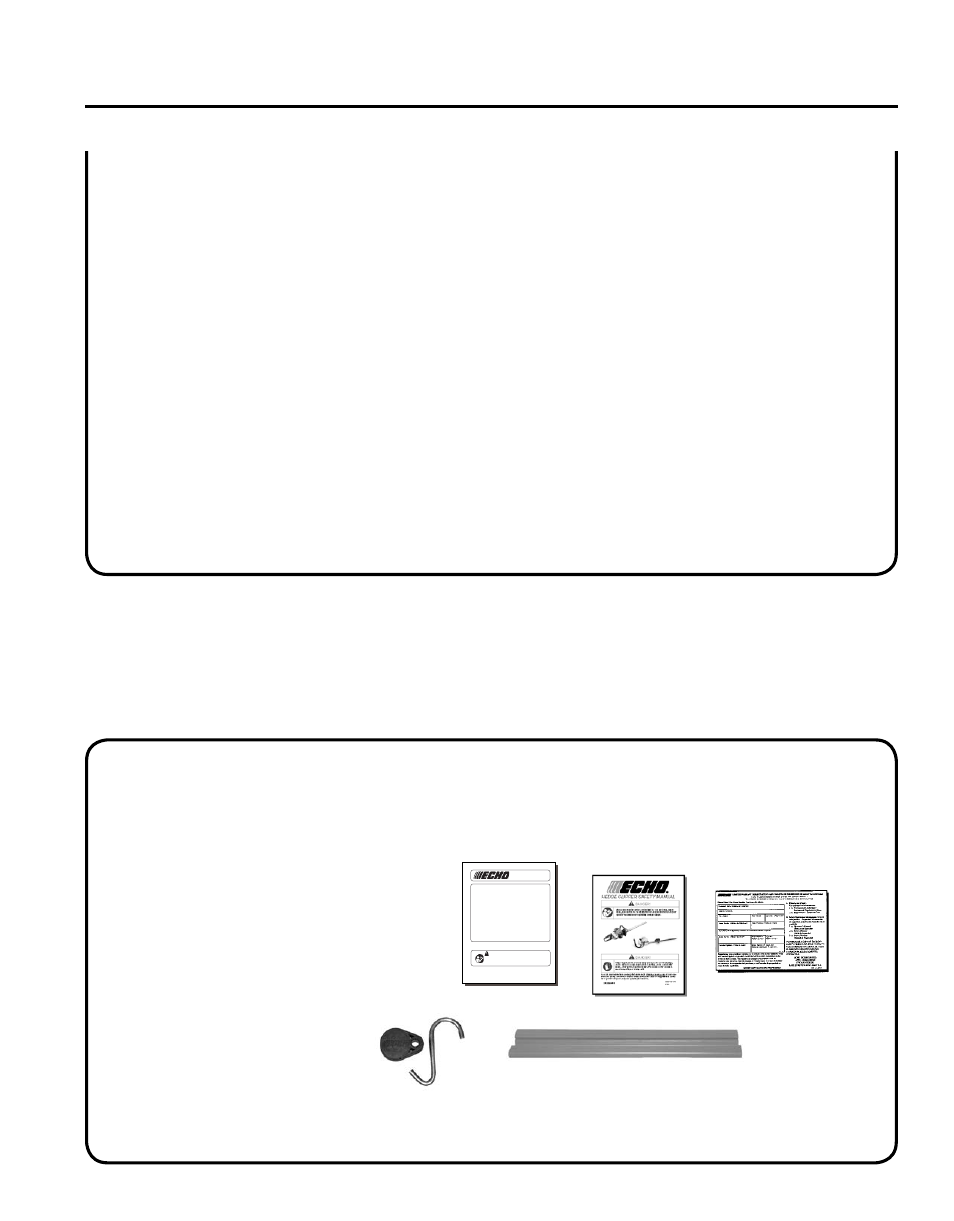

C
onTenTs
The ECHO product you have purchased has been factory pre-assembled for your convenience.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
_____ 1 - Articulating Hedge Clipper Attachment
_____ 1 - Operator's Manual
_____ 1 - Safety Manual
_____ 1 - Warranty Registration Card
_____ 1 - Blade Cover
_____ 1 - Storage Hook Assembly
PAS A RTICULATING H EDGE C LIPPER A TTACHMENT O PERATOR ' S M ANUAL 1
PAS Articulating Hedge Clipper Attachment
Operator's Manual
MODEL 99944200595
FOR MODELS: SRM-2100SB/2400SB
SRM-210SB/211SB
SRM-225SB
SRM-260SB/261SB
PAS-2100/2400
PAS-210/211
PAS-230/231
PAS-260/261
PAS-2601
PAS-265
X7532095603 X753001923 01/09
WARNING Read rules for safe operation and instructions carefully. ECHO provides an
Operator's Manual and a Safety Manual for Pro Attachment Series power source or
Split Boom Trimmer. Those manuals and this manual must be read and understood
for proper and safe operation, otherwise serious personal injury may result.
