PAS A

rticulAting

H

edge

c

liPPer

A

ttAcHment

O

PerAtOr

'

S

m

AnuAl

13

6mm (.25 in.) Radius

A

A

45

º

IMPORTANT

Flat edge of washer (D) must be against drive shaft.

C

A D

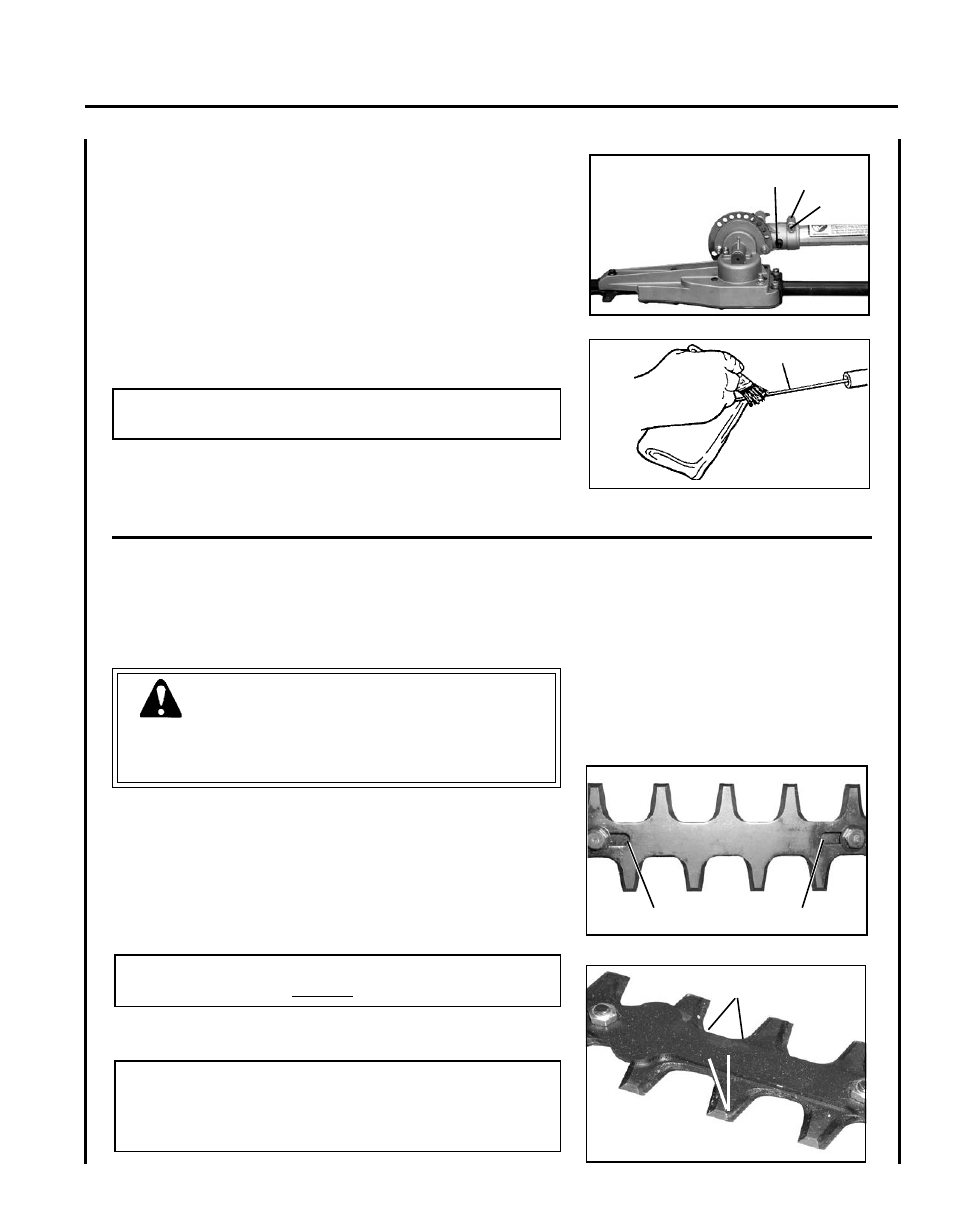

1. Carefully remove locating screw (A) and loosen clamping screw

(B). Remove the flex drive shaft assembly from the gear housing.

2. Pull the drive shaft (C) from the drive shaft assembly, and wipe

clean. Re-coat with a thin coating [1/2 oz. (15 ml)] of grease.

3. Slide the flex shaft back into the drive shaft assembly, being careful

not to get dirt on the flex shaft.

4. Align the locating screw hole in gear case with the locating hole

in drive shaft assembly, install and tighten locating screw (A), and

tighten clamping screw (B).

B

1. Move stop switch to stop position.

2. Disconnect spark plug wire.

3. Slide blades to allow file clearance using slots (B) on bottom of

blade. Do not pry against cutting edges.

4. File each edge carefully. Follow the original shape of the blade.

IMPORTANT

If a power grinder is used DO NOT allow blade to over heat.

5. Lubricate blades (see “Lubrication instructions”).

IMPORTANT

Blades should only be removed and reinstalled by an Authorized

ECHO Servicing Dealer, otherwise premature wear or internal

damage may occur.

sharpenIng

blades

Level 2.

WARNING

Hedge Clipper blades are very sharp. Touching them may lead to

severe personal injury. Avoid touching blades whenever possible,

and always wear gloves to protect hands.
