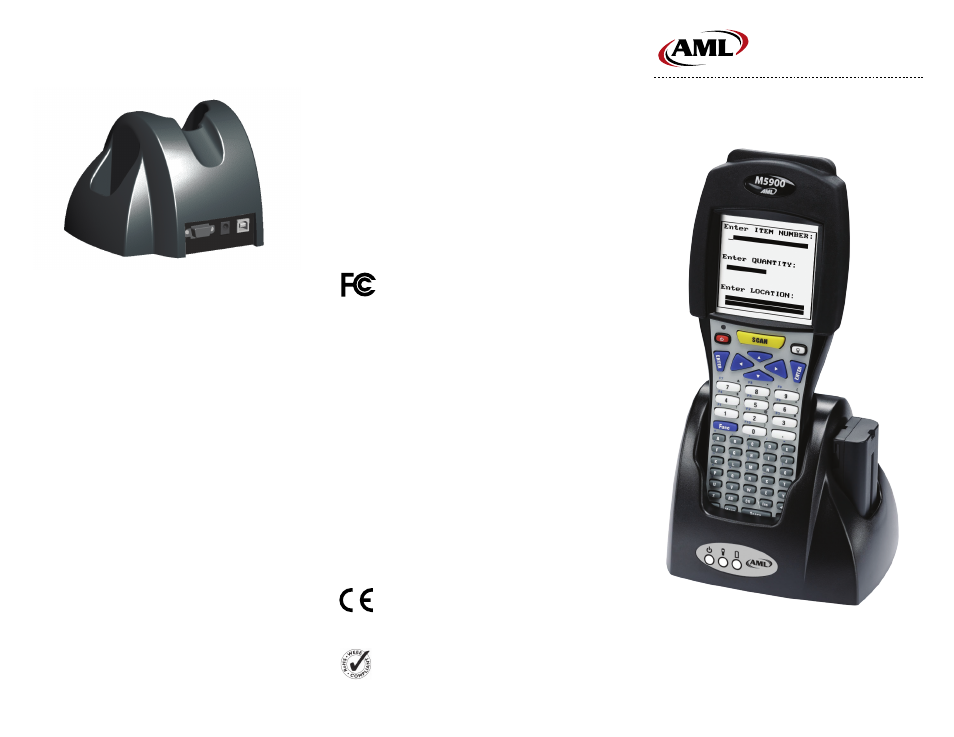

AML ACC-5925 Charging Cradle - Manual

User’s Guide
ACC-5925
Terminal Charger
Regulatory Information
All American Microsystems, Ltd. devices are designed to be compliant with
rules and regulations in locations they are sold and will be labeled as required.
Any changes or modifications to American Microsystems, Ltd. equipment, not
expressly approved by American Microsystems, Ltd., could void the user's
authority to operate the equipment.
Power Supply
Use only an American Microsystems, Ltd. approved Power Supply, output rated
5 VDC and minimum 2.8A. The Power Supply is certified to EN60950.
Disclaimer
American Microsystems, Ltd. reserves the right to make changes in specifica-
tions and other information contained in this document without prior notice,
and the reader should in all cases consult American Microsystems, Ltd. to
determine whether any such changes have been made. The information in this
publication does not represent a commitment on the part of American
Microsystems, Ltd.
American Microsystems, Ltd. shall not be liable for technical or editorial errors
or omissions contained herein; nor for incidental or consequential damages
resulting from the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by
copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated into another language without the prior written
consent of American Microsystems, Ltd.
FCC Declaration of Conformity
Product Name: Terminal Charger
Model Number: ACC-5925
Radio Frequency Interference Requirements
This equipment complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) This equipment may not cause harmful
interference, and (2) this equipment must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a residential environment. This equipment generates
uses and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If you determine the equipment does cause
harmful interference to radio or television reception (this may be determined
by monitoring the interference while turning the equipment off and on), you
are encouraged to try to correct the interference by one of the following
measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
· Consult the dealer or an experienced radio or TV technician for help.
Radio Frequency Interference Requirements - Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
Marking and European Economic Area (EEA)
Products intended for sale within the European Union are marked
with the CE mark which indicates compliance to applicable
Directives and European Normes (EN), as follows. Amendments to
these Directives or EN’s are included.
· Electromagnetic Compatibility Directive 89/336/EEC
· Low Voltage Directive 73/23/EEC
Communication Ports
The Terminal Charger also has 2 communication ports: RS-232 (DB-9) and USB
(Type II). The Terminal Charger uses a standard RS-232 (DB-9 Male – DB-9
Female) cable with a length of 3 Meters or less.
Both communication connectors on the back of the universal terminal charger
are wired “straight through”. This means that the communication settings on
the handheld terminal will determine the settings on the terminal charger. The
Terminal Charger has no internal or external settings that can be changed.
The full-speed USB or RS-232 communication port can be used for uploading
and downloading of data files to the handheld terminal. These ports can also
be used to load a new or updated operating system into the handheld
terminal.
DB-9 Pin out (RS-232)
1 – DCD (Data Carrier Detect) 6 – DSR (Data Set Ready)
2 – RXD (Receive Data) 7 – RTS (Request To Send)
3 – TXD (Transmit Data) 8 –CTS (Clear To Send)
4 – DTR (Data Terminal Ready) 9 – NC (No Connection)
5 - GND (Signal Ground)
