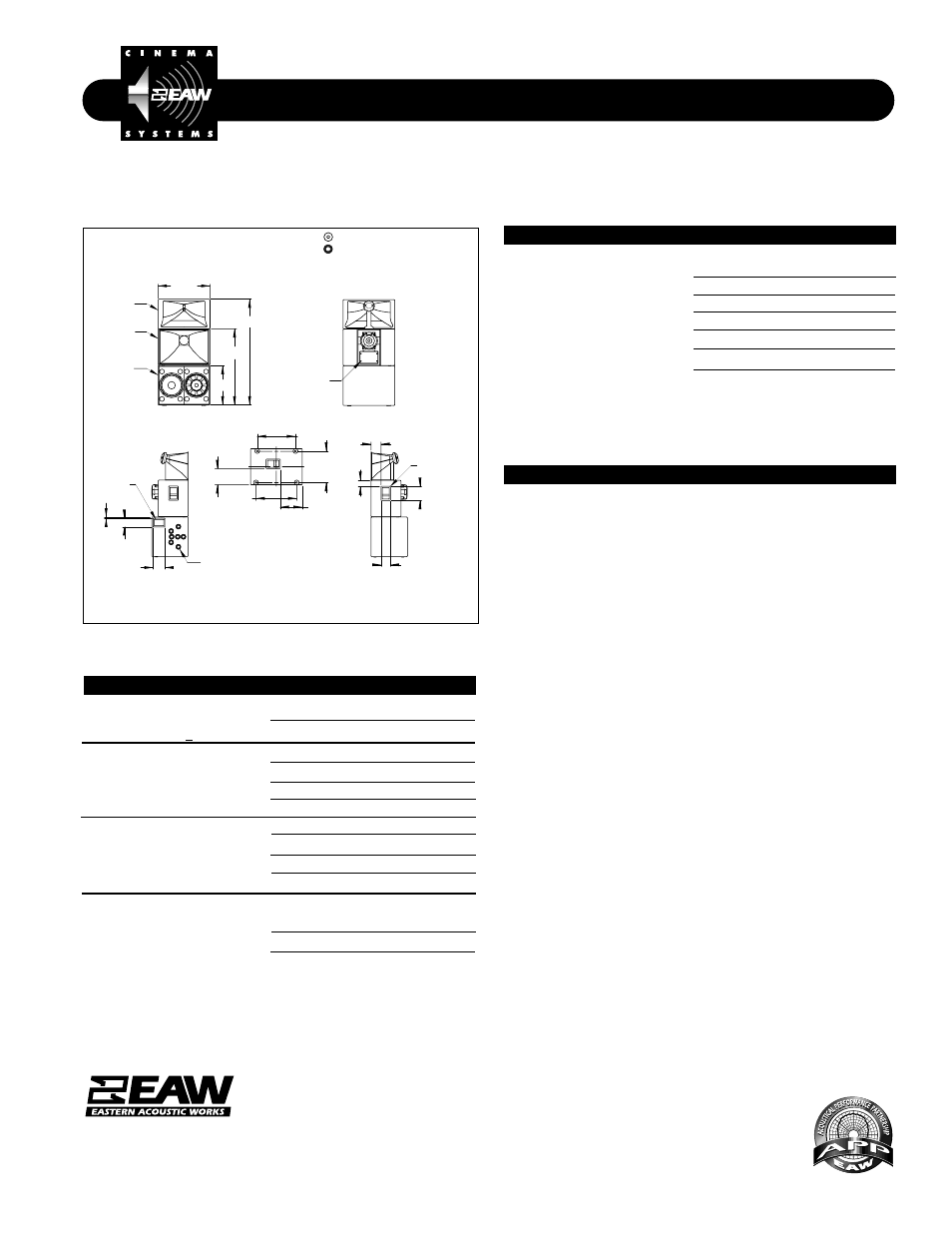

TECHNICAL SPECIFICATIONS CSC723
997164 (A)
exp 05/26/00 dpm
CSC723
ACCESS
PANEL
BACK
LEFT SIDE
INPUT
2X .88
7.28
5.28
MOUNTING POINTS
FOR 2 WAY
CONFIGURATION
6.14
3.69
3X HANDLE
8.75
5.84
RIGHT SIDE
CL
CL
10.08
13.60
19.48
23.71
25.25
BOTTOM
FRONT
47.25
24.50
EAW 997157
CSC-LF
EAW 997159
CSC-HF
65.50 EAW 997158
CSC-MF
32.00
INDICATES RUBBER FOOT.
INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE RIVNUT.
NOMINAL DATA
NOMINAL DATA continued
COMPONENTS & CONSTRUCTION
Frequency Response
+3 dB 35 Hz to 18 kHz
Sensitivity (dB SPL, 1 Watt @ 1m)
LF 101
MF 108
HF 114
Impedance (Ohms)
LF 4
MF 8
HF 12
Power Handling, (AES Standard, Watts)
LF 1000
MF 350
HF 120
Calculated Maximum Output (dB SPL)
LF Peak 136
MF Peak 139.4
HF Peak 140.8
LF Long Term 130
MF Long Term 133.4
HF Long Term 134.8
All external components feature a textured, non-reflective, black
finish to eliminate the reflection of light through perforated cinema
screens.
