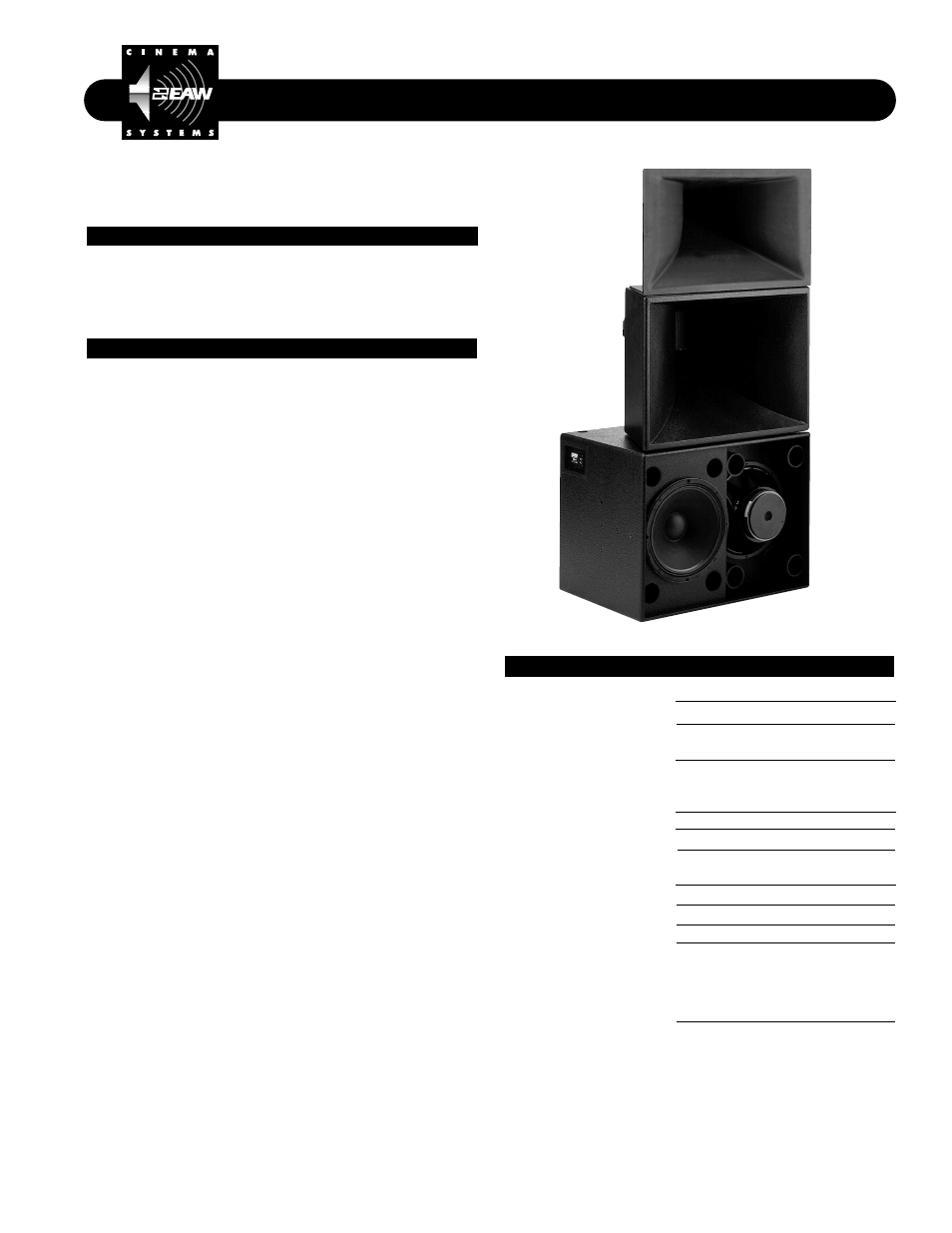

EAW Cinema Screen Channel Speaker CSC723 User Manual
Technical specifications csc723, Cinema systems

TECHNICAL SPECIFICATIONS CSC723
CINEMA SYSTEMS
DESCRIPTIVE DATA
Part Number
997164
LF Subsystem
2x15-in vented, push pull configuration
MF Subsystem
1x10-in horn-loaded cone, Radial
Phase Plug™
HF Subsystem)
1x2-in exit/75 mm voice coil
compression driver on 2 Axis
Asymmetrical horn
Configuration
3-way, full range
Powering Mode
Tri-amplified
System Crossover
250/1000 Hz recommended
CX300-CSC723
Enclosure Materials
Baltic birch plywood
Finish
Wear-resistant textured black paint
Connectors
2x2-terminal barrier strip
Dimensions
inches
millimeters
Height
65.5 in
1663.7
Width
32.0 in
8128
Depth
22.5 in
5715
Weights
pounds
kilograms
Net
204.0 lb
92.53 kg
Shipping
224.0 lb
101.47 kg
• For large cinema screen channel application
The CSC723 represents a major advancement in cinema screen
channel speaker design. Incorporating many new EAW engineering
breakthroughs, the CSC723 is designed to provide optimal coverage
in all cinemas, especially “stadium” seating auditoriums, where
front-to-back coverage provides a difficult challenge for even the
best conventional systems.
The three-way CSC723 features a multicomponent modular design
whcih allows quick installation, with no assembly required on site.
The mid-range and high frequency horns feature an unusual asym-
metrical flare design, which provides a narrow pattern at the rear of
the room, and a wider pattern at the front of the room. This design
minimizes energy radiated at the side walls, while concentrating
sound in the seating area. The high frequency horn is coupled to a
2-in exit driver, and also features a controlled collapsing pattern at
the very highest frequencies, which compensates for the screen’s
effect of widening the dispersion, thus resulting in a constant pat-
tern in a seating area.
The single 10” mid-range cone driver is housed in its own subenclo-
sure and is coupled to EAW’s patented Radial Phase Plug™. The
unique design of the Radial Phase Plug™ significantly reduces throat
distortion and frequency “time smear”, resulting in noticeably
clearer, more natural sounding dialog.
The low frequency sections incorporate EAW’s “push-pull” driver
arrangement. The drivers are out of phase relative to each other both
physically and electrically, yet their product is acoustically in phase,
substantially lowering mechanically induced distortion.
