Physical description – ACTi TCD-2100 User Manual
Page 7
TCD-2100 Hardware Manual

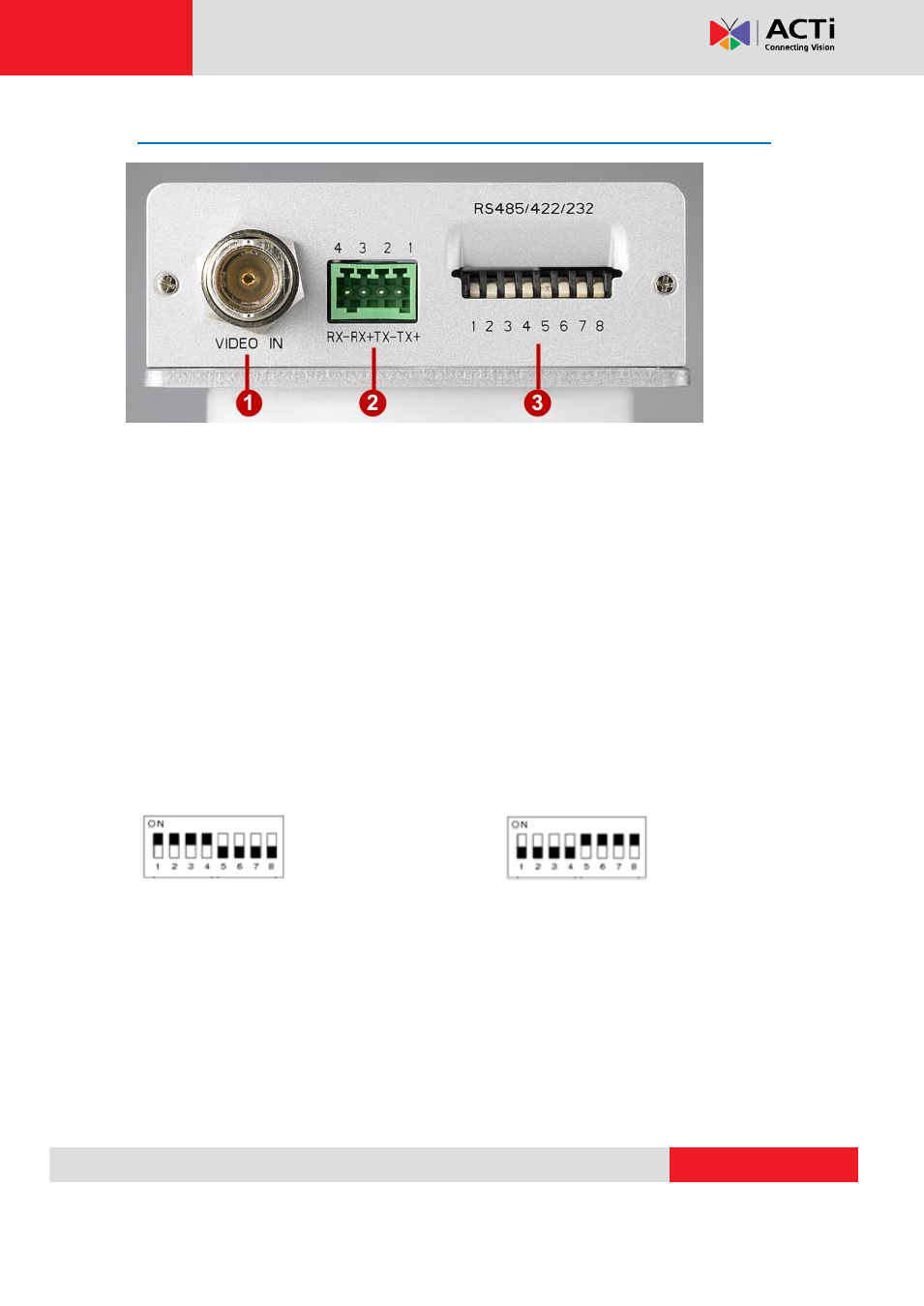

Physical Description
1) Video Input
Connect an analog camera using BNC connector.
2) Serial Port Connection via Terminal Block
Connect a serial port device to the supplied terminal block. See
page 11 for connection details.
3) DIP Switch for Serial Port Configuration
The same terminal connections can be used for different protocols. Select which protocol to
use via this DIP Switch.
RS-485 or RS-422 (Default is RS-485) RS-232 pin define
