VLAN Mode
Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is
possible to create a VLAN across devices from different switch venders. IEEE
802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag
contains a VLAN Identifier (VID) that indicates the VLAN numbers. Please notice
that this page is only for Tag Based VLAN.

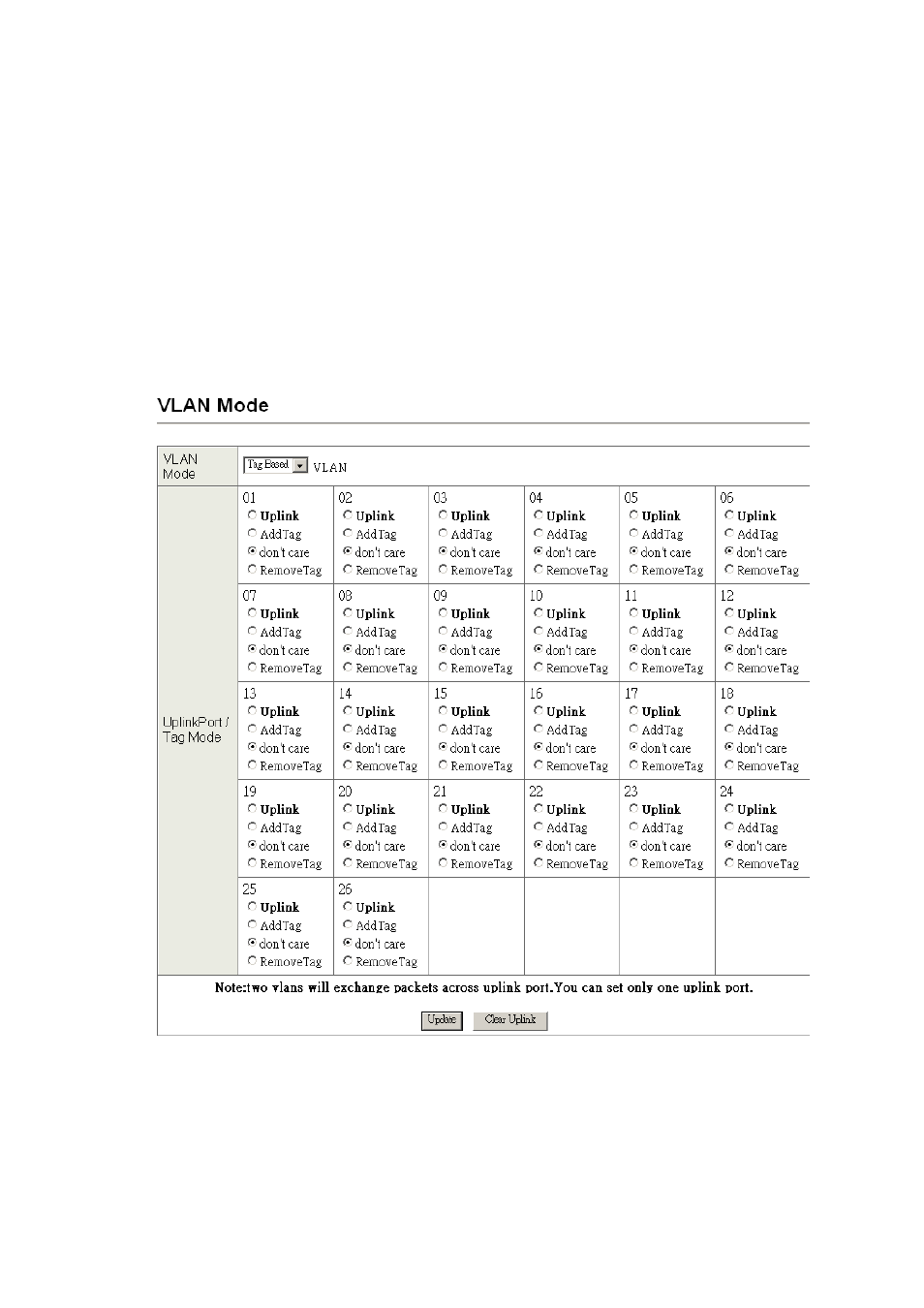

VLAN Mode interface
VLAN Mode: Displays VLAN mode.
UplinkPort/Tag Mode: There are four radio buttons—Uplink, AddTag, don’t
