34
VIDEO INPUT
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
Press POINT DOWN button to move a red arrow pointer to Input
3 and then press SELECT button. Source Select Menu will
appear.
1
2
Move a pointer to source and
press SELECT button.
Source Select Menu (VIDEO)
Move a pointer to source that you want to select and then press
SELECT button. 3
When video input signal is connected to VIDEO jack,
select Video.
Video
When video input signal is connected to S-VIDEO jack,
select S-Video.
S-Video
When video input signal is connected to VIDEO/Y, C
jacks, select Y/C.
Y/C
When connecting to those equipment, select a type of Video
source in SOURCE SELECT (VIDEO) Menu.
WHEN SELECT INPUT 3 (AV TERMINAL )
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
Move a pointer to "Y, Pb/Cb, Pr/Cr" and then press SELECT
button.
1
3
When connect component video output (Cr, Y, Cb or Pr, Y, Pb) from
video equipment to R/Pr, G/Y and B/Pb jacks.
WHEN SELECT INPUT 2 (5 BNC SLOT )
Input 2
INPUT MENU
Move a pointer to
Y, Pb/Cb, Pr/Cr and press
SELECT button.
INPUT Menu icon
Move a pointer (red arrow) to
Input 2 and press SELECT
button.
Source Select Menu
Input 3
INPUT MENU
INPUT Menu icon
Move a pointer (red arrow) to
Input 3 and press SELECT
button.
Press POINT DOWN button to move a red arrow pointer to Input
2 and then press SELECT button. Source Select Menu will
appear. 2

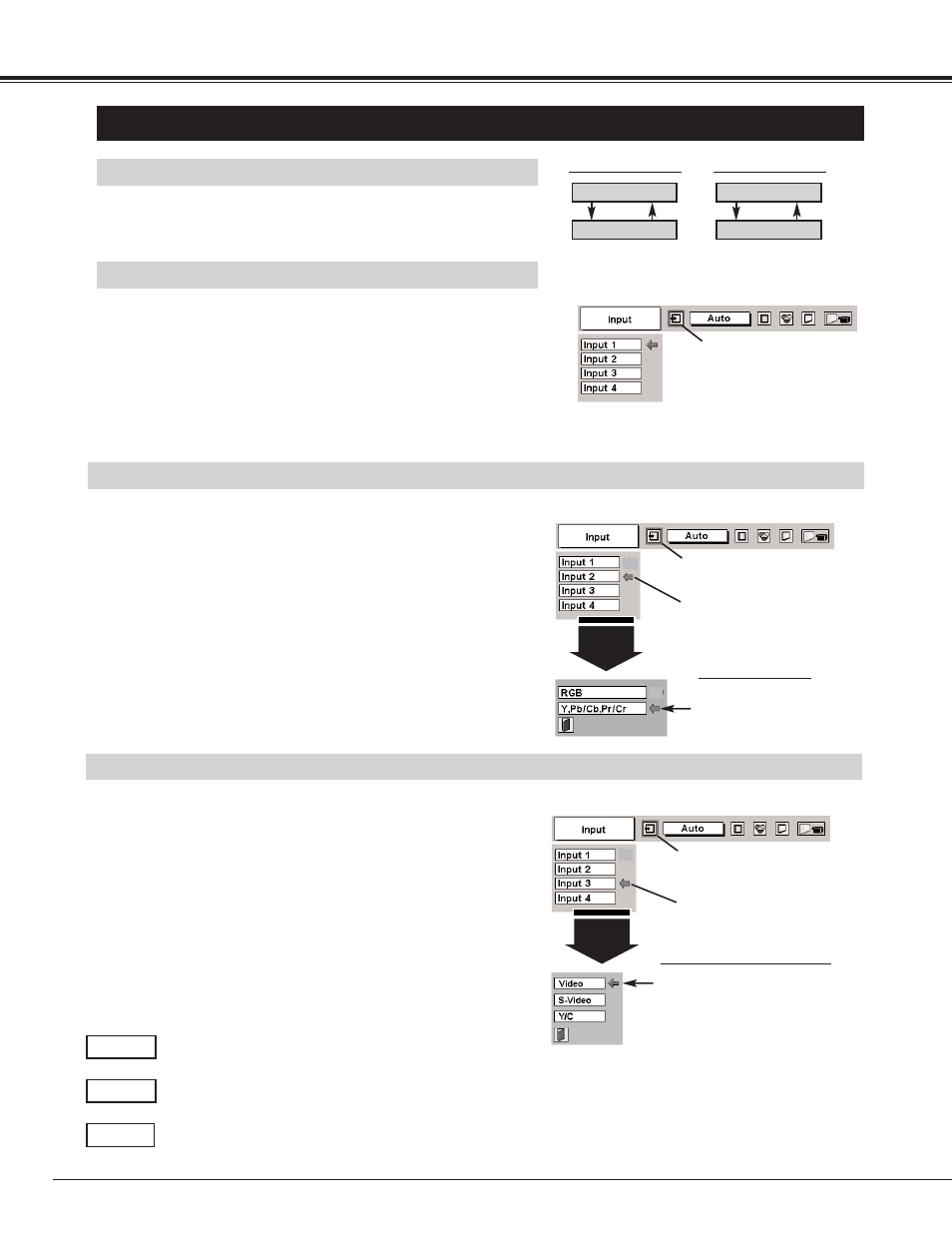

SELECTING INPUT SOURCE
MENU OPERATION
DIRECT OPERATION
Select INPUT source by pressing INPUT 1/2, INPUT 3/4 or
INPUT 1 - INPUT 4 buttons on Side Control or on Remote
Control Unit.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to select Input and press SELECT
button. Another dialog box INPUT SELECT Menu will appear. 1
INPUT 1/2 button
INPUT 1
INPUT 2
INPUT 3/4 button
INPUT 3
INPUT 4
INPUT Menu icon
Press POINT DOWN button to move arrow to INPUT source that
you want to select, and then press SELECT button. 2
