34
or fake ground. This will boost the tracer tone, and may pro-
vide an adequate trace. The strongest trace will be obtained
when using the grounded method and the clips (as described
above), but if the hint works, the user won’t have to open
the modular jack housing to gain access to the wires.
TRIPLETT
TONE
HI
LO
CONTINUITY TALK
WARBLE
OFF / LINE POLARITY
STRONG
TONE
OPEN FAULT
WEAK TONE

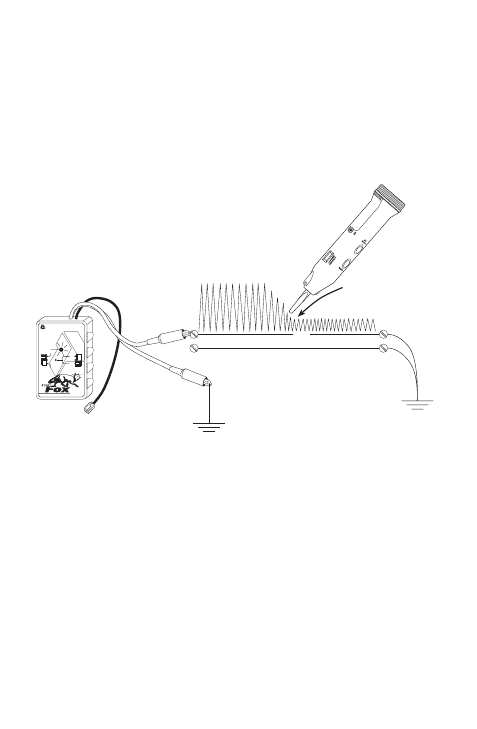

Figure 6
Locating an Open
8.1.4.4: Coaxial Cable:
Coaxial cable, like that used for cable TV, satellite TV, closed
circuit TV, early LAN systems, etc. is often connected to other
cables through splitters, combiners, or amplifiers. In order
to trace the cable, it must be disconnected from these
“loads”. Since coaxial cable is self-shielding, the floating
method usually does not work well when tracing the cable.
