Tiffen Lowel eXchange System Lamphead - Manual (Page 2)

Lamp/Beam Data
Lamp Code Volts Watts °K Avg Life FC(lux) 5' FC(lux) 10'
For Rifa eX 44 – Maximum 300w
E1-27 120 27 5500 8000 hr 10 (108) 3 (30)
E1-27E 230 25 5500 8000 hr 11 (114) 3 (31)
For Rifa eX 55 – Maximum 500w
E1-27 120 27 5500 8000 hr 9 (92) 3 (31)
E1-27E 230 25 5500 8000 hr 9 (97) 3 (32)
For Rifa eX 66 – Maximum 750w
E1-27 120 27 5500 8000 hr 10 (113) 3 (32)
E1-27E 230 25 5500 8000 hr 11 (120) 3 (34)
X1-65 120 65 5500 8000 hr 28 (303) 8 (83)
For Rifa eX 88 – Maximum 1000w
E1-27 120 27 5500 8000 hr 10 (113) 3 (32)
E1-27E 230 25 5500 8000 hr 11 (120) 3 (34)
X1-65 120 65 5500 8000 hr 34 (365) 10 (104)
For Lowel SoftCore
E1-27 120 27 5500 8000 hr 8 (91) 3 (29)
E1-27E 230 25 5500 8000 hr 9 (97) 3 (31)
E1-80 120 80 5500 8000 hr 23 (246) 7 (77)
E1-80E 220 80 5500 8000 hr 23 (251) 8 (81)
Lamp/Beam Data (with all 3 Lamps Lit)
Lamp Code Volts Watts °K Avg Life FC(lux) 5' FC(lux) 10'
For Rifa eX 44 – Maximum 300w
E1-27 120 27 5500 8000 hr 23 (250) 6 (69)
E1-27E 230 25 5500 8000 hr 25 (265) 7 (73)
For Rifa eX 55 – Maximum 500w
E1-27 120 27 5500 8000 hr 22 (233) 7 (78)
E1-27E 230 25 5500 8000 hr 23 (252) 8 (85)
X1-65 120 65 5500 8000 hr 64 (696) 18 (199)
E1-80 120 80 5500 8000 hr 60 (653) 18 (190)
E1-80E 220 80 5500 8000 hr 71 (763) 21 (225)
For Rifa eX 66 – Maximum 750w
E1-27 120 27 5500 8000 hr 27 (293) 8 (85)
E1-27E 230 25 5500 8000 hr 29 (309) 8 (89)
X1-65 120 65 5500 8000 hr 67 (722) 18 (196)
E1-80 120 80 5500 8000 hr 58 (623) 17 (186)
E1-80E 220 80 5500 8000 hr 71 (763) 21 (225)
For Rifa eX 88 – Maximum 1000w
E1-27 120 27 5500 8000 hr 28 (307) 8 (88)
E1-27E 230 25 5500 8000 hr 29 (318) 9 (93)
X1-65 120 65 5500 8000 hr 77 (833) 22 (235)
E1-80 120 80 5500 8000 hr 66 (715) 20 (215)
E1-80E 220 80 5500 8000 hr 81 (874) 24 (26)
For Lowel SoftCore
E1-27 120 27 5500 8000 hr 23 (247) 7 (77)
E1-27E 230 25 5500 8000 hr 24 (256) 7 (81)
E1-80 120 80 5500 8000 hr 59 (632) 18 (189)
E1-80E 220 80 5500 8000 hr 61 (656) 18 (194)

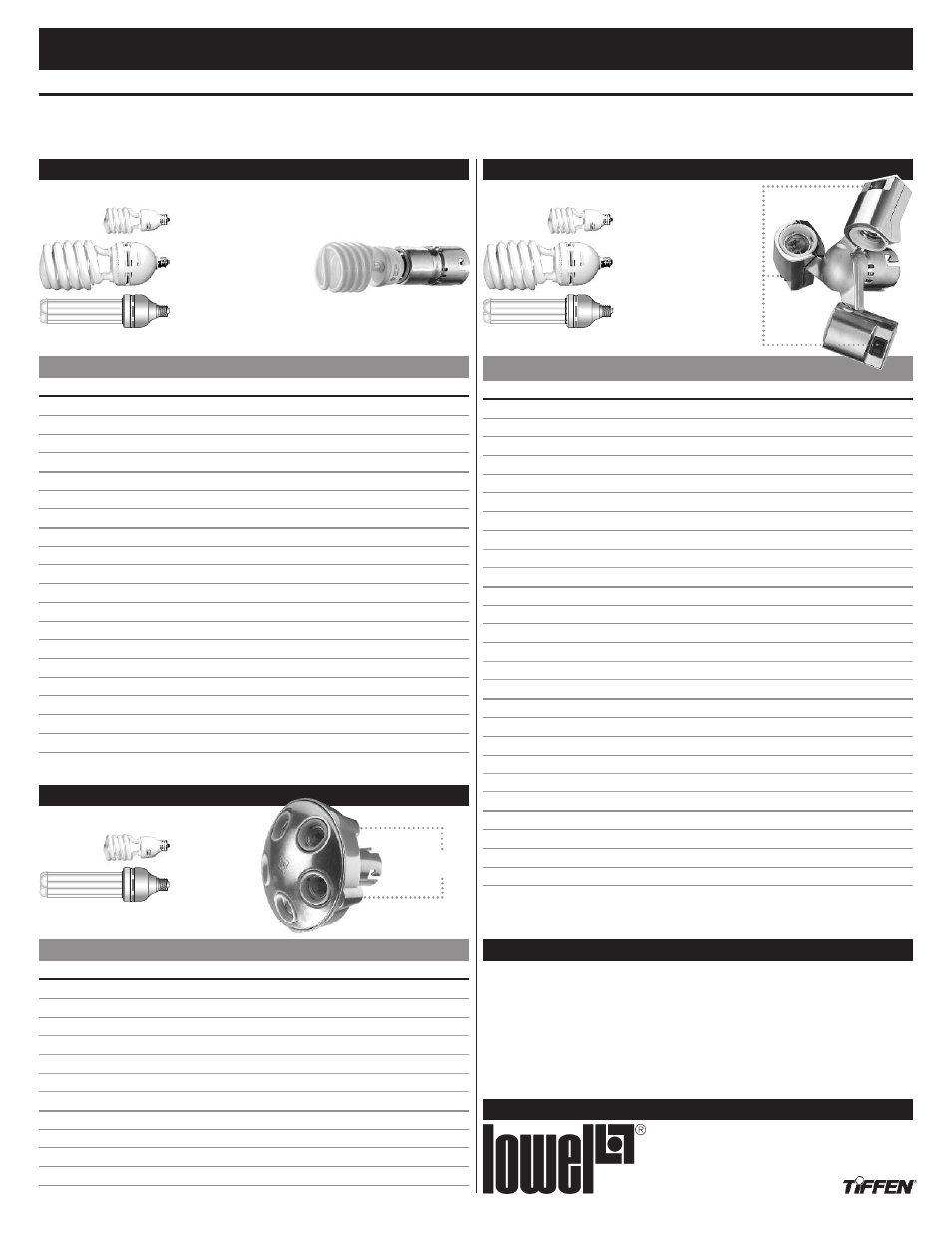

Lowel eXchange System Lamphead Instructions
FLO-X1 For all Rifa eX models & SoftCore FLO-X3 For all Rifa eX models & SoftCore
Daylight Lamps
Fluorescent (or Low Wattage Incandescent), Edison Screw-thread
FLO-X fluorescent lampheads are for use with all Rifa eX models (except FLO-X5 - see below), and SoftCore with appropriately
sized softboxes. Choose softboxes that are large enough to have space between lamps & front diffuser when head & lamps
are installed.
Note: the below readings for SoftCore were taken with a Chimera Video Pro Medium Softbox attached.
E1-27
X1-65
Individually
switched
lamps
Daylight Lamps
Fluorescent, Edison Screw-thread
