Chapter 3 Operational Instructions
3.1 Front Panel

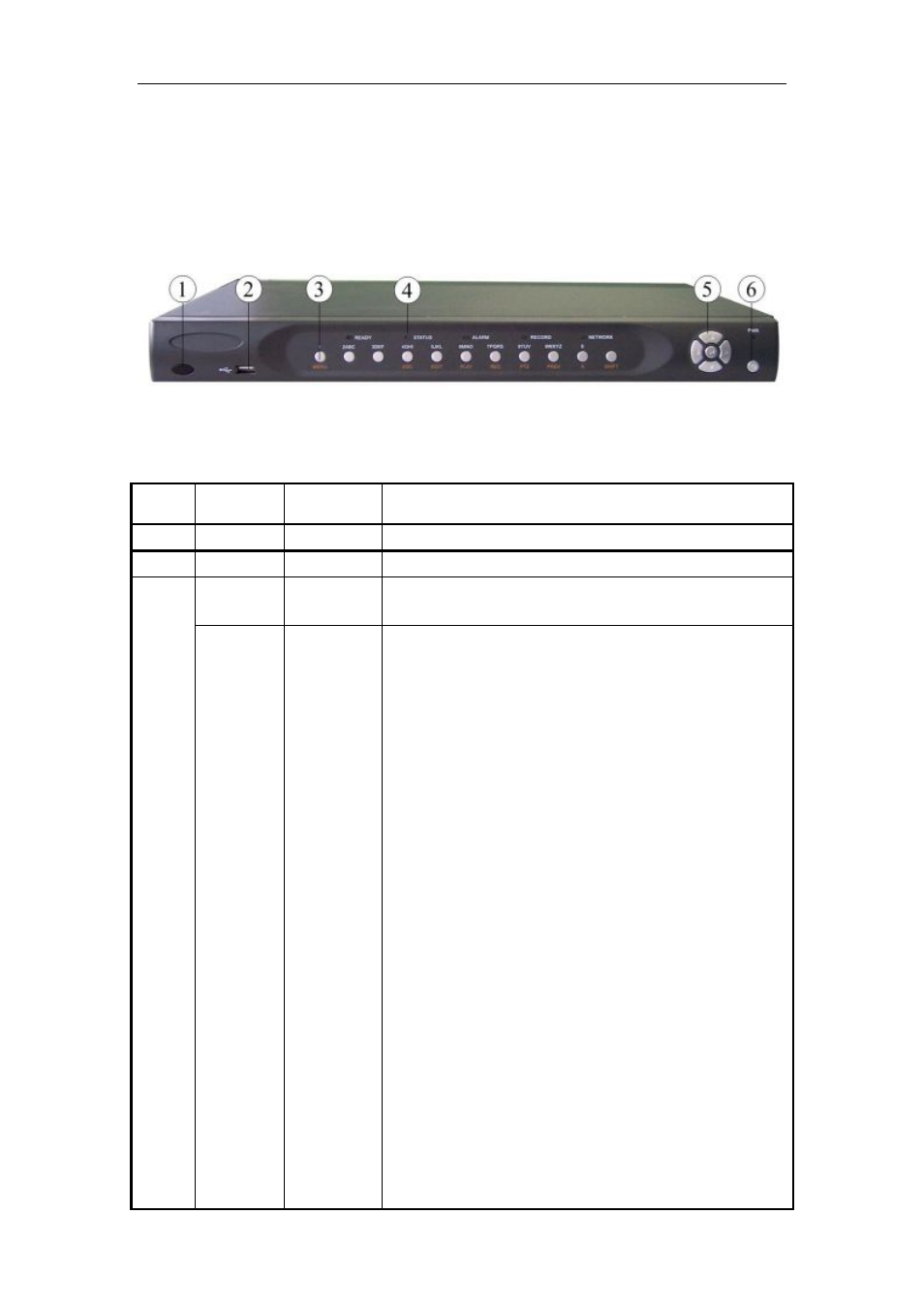

Fig 3-1 Front Panel
Form 3-1 Items on Front Panel
Index
Type
Name
Description
1
Light
IR receiver for remote control.
2
USB
USB Port
3
Numeric
Keys
Input number, lower case, upper case character and
symbols.
Function
Keys
MENU
2
3
ESC
EDIT
PLAY
REC
PTZ
PREV
A
1. Switch preview mode into menu;
2. Brush control short key
【WIPER】.
3. Press
【MENU】for more than 5 seconds to cancel
button beep sound.
【ZOOM-】in PTZ control.
【ZOOM+】in PTZ control.
Cancel and back to parent menu.
1. In edit state, delete the current cursor character;
2.
【IRIS+】in PTZ control;
3. Select ü or
旚 to enable or disable.
1. Local playback;
2.
【AUTO】in PTZ control.
1. Manual record;
2.
【SHOT】in PTZ control (adjust preset).
1. Enter into PTZ control mode;
