Teletronics FX04 - Manual (Page 2)

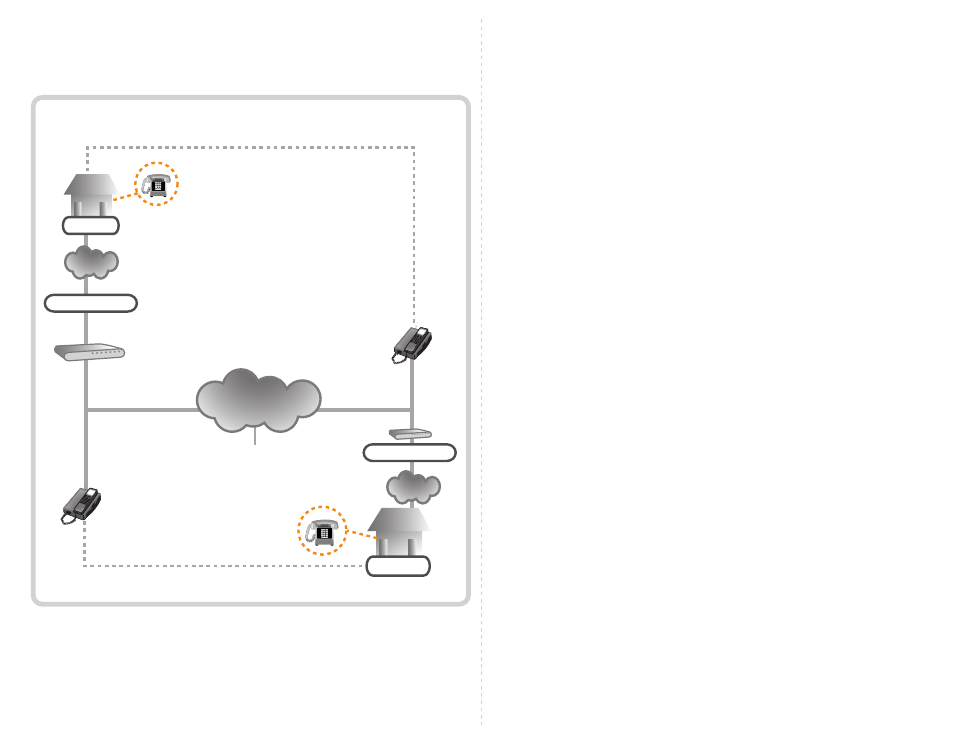

Sample Application Diagram
PLEASE VISIT OUR WEBSITE AT WWW.TELETRONICS.COM FOR MORE INFORMATION
Initial Set-Up Guide
1. Using the Ethernet
Using the Ethernet cable provided, connect the LAN, DSL or Cable modem to the
Ethernet port on the back of the FX04.
2. Power on the FX04
Power on the FX04 by using the power cord provided.
3. Connect your PSTN Lines
Connect your PSTN Lines (L1-L6) to the PSTN Ports on the back of the FX04.
4. Optional Set-up:
Connect the FX04 Ethernet port to your Router instead of DSL or Cable modem.
Teletronics recommend places the FX04 in front of Router to maximize the
voice quality.
5. Configuring from Web Browser:
FX04 LAN IP: 10.1.1.3
Web IP Address: http://10.1.1.3
User ID: root
Password: (No Password/Leave it blank)
Please Note:
Please download FX04 User Manual at www.teletronics.com/User Manuals.html
FX04
VoIP PROXY
ANALOG
PHONE
ANALOG
PHONE
VoIP PHONE
VoIP PHONE
INTERNET
LOCAL PHONE CALL INSTEAD OF LONG DISTANCE OR
INTERNATIONAL CALLS
LOCAL PHONE CALL INSTEAD OF LONG DISTANCE OR
INTERNATIONAL CALLS
FX04
PSTN
PSTN
4 ANALOG LINES
4 ANALOG LINES
HOUSE
HOUSE
