SPECIFICATIONS
GENERAL SPECIFICATIONS OUTPUT SPECIFICATIONS
Input Voltage 38V~55V Voltage Set Point Typical Vin/n
Switching
2
Typical 150 KHz V48SB120 8.9V~13.75V Total Output Range
Isolation Voltage In/Out 2250V V48SB9R6 6.8V~11V
Isolation Minimum 10M Ohms Load Regulation Typical 390mV
MTBF Load Limits Bellcore TBD Typical 120% of load
Size Ripple & Noise (1.30”Ч0.90”Ч0.37”) 33.0x22.8x9.5mm Typical 150 mV
OTP Typical , at hotspot 131°C
PART NUMBERING SYSTEM
V R F 48 S B 9R6 16 N A
Type of
Product
Input
Voltage
Number of
Outputs
Product
Series
Output
Voltage
Output
Current
ON/OFF
Logic
Pin Length Option
Code
V - 1/16th
Brick
38V~55V S - Single B - Bus
Converter
120 - 12V 13 - 12.8A N - Negative R - 0.170” F- RoHS 6/6 A - Standard
(Lead Free) 9R6 - 9.6V 16 - 16A Functions
MODEL LIST
Part Number INPUT OUTPUT Eff. @ 100% LOAD
V48SB12013NRFA 38V~55V 3.8A 12V 12.8A 95.2%
V48SB9R616NRFA 38V~55V 3.8A 9.6V 16A 95.2%

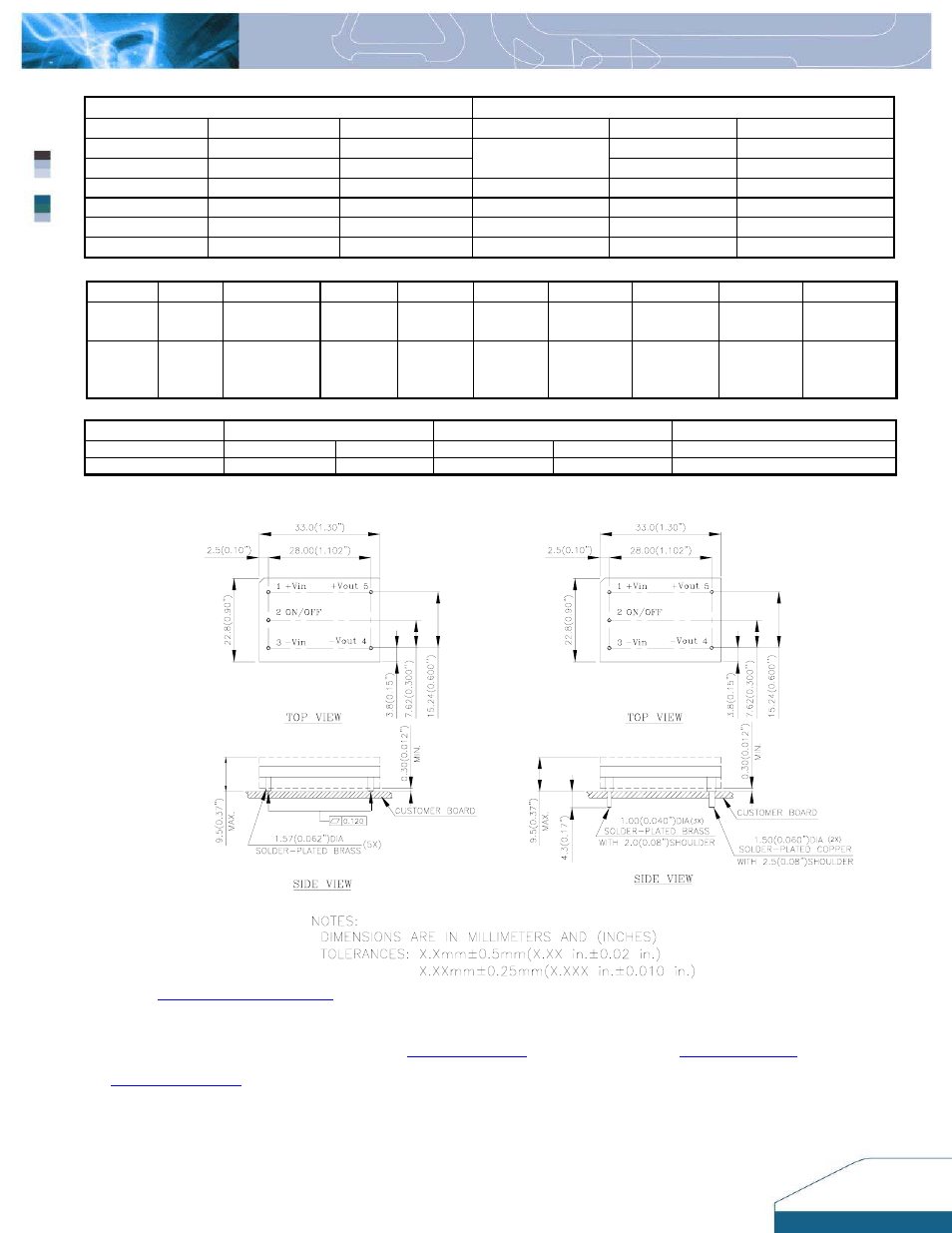

MECHANICAL DRAWING
Surface-mount module Through-hole module
CONTACT : www.delta.com.tw/dcdc
USA: Europe: Asia & the rest of world:
Telephone: Phone: +41 31 998 53 11 Telephone: +886 3 4526107 ext 6220
East Coast: (888) 335 8201 Fax: +41 31 998 53 53 Fax: +886 3 4513485
West Coast: (888) 335 8208
Fax: (978) 656 3964
Email:
[email protected]
Email: [email protected] Email: [email protected]
WARRANTY
Delta offers a two (2) year limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any
infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent
or patent rights of Delta. Delta reserves the right to revise these specifications at any time, without notice.
