5.2 SMT148-FX comport firmware
The SMT148-FX uses a Xilinx Spartan 3 FPGA to drive most of the Comports
between the different sites.
Each TIM site has 6 Comports.
Four of these are connected directly to the Spartan 3 FPGA. These are Comports 0,
1, 3 & 4.
Comports 2 & 5 are connected between TIM sites in a pipe configuration as follows;
All the Spartan firmware are available in the directory:
$\Program Files\Sundance\SMT6002\Firmware\Smt148FX\SPARTAN
A firmware has been developed for the DVIP system, that one allows you to use all
the hardware capabilities and load all the bitstreams from the root.
“com.sundance.smt148-fx.sc3s1500.usb_default.DVIP.app”
Use the
SMT6002 to change the Spartan firmware at the address 0x0.
TIM SITE 2 TIM SITE 3
TIM SITE 1
SMT362
TIM SITE 4
SMT339
3
3
0
1 3
Fx2lp
Usb cable
0
0
3
4
4
4 1
1
Implementation in the
bitsream entitled
“default_DVIP”
CPLD
FPGA
SMT148-FX
1
5
No connections with and
between the others TIMs
The comport link CP1-CP5 is only
used to configure the FPGA. The
Comport link used to configure the
SMT148FX FPGA is not available for
data transfers after the configuration.
TIM SITE 2 TIM SITE 3
TIM SITE 1 TIM SITE 4
5
2
2
2 5
5
5
PCB Comport connections
between TIM sites
2

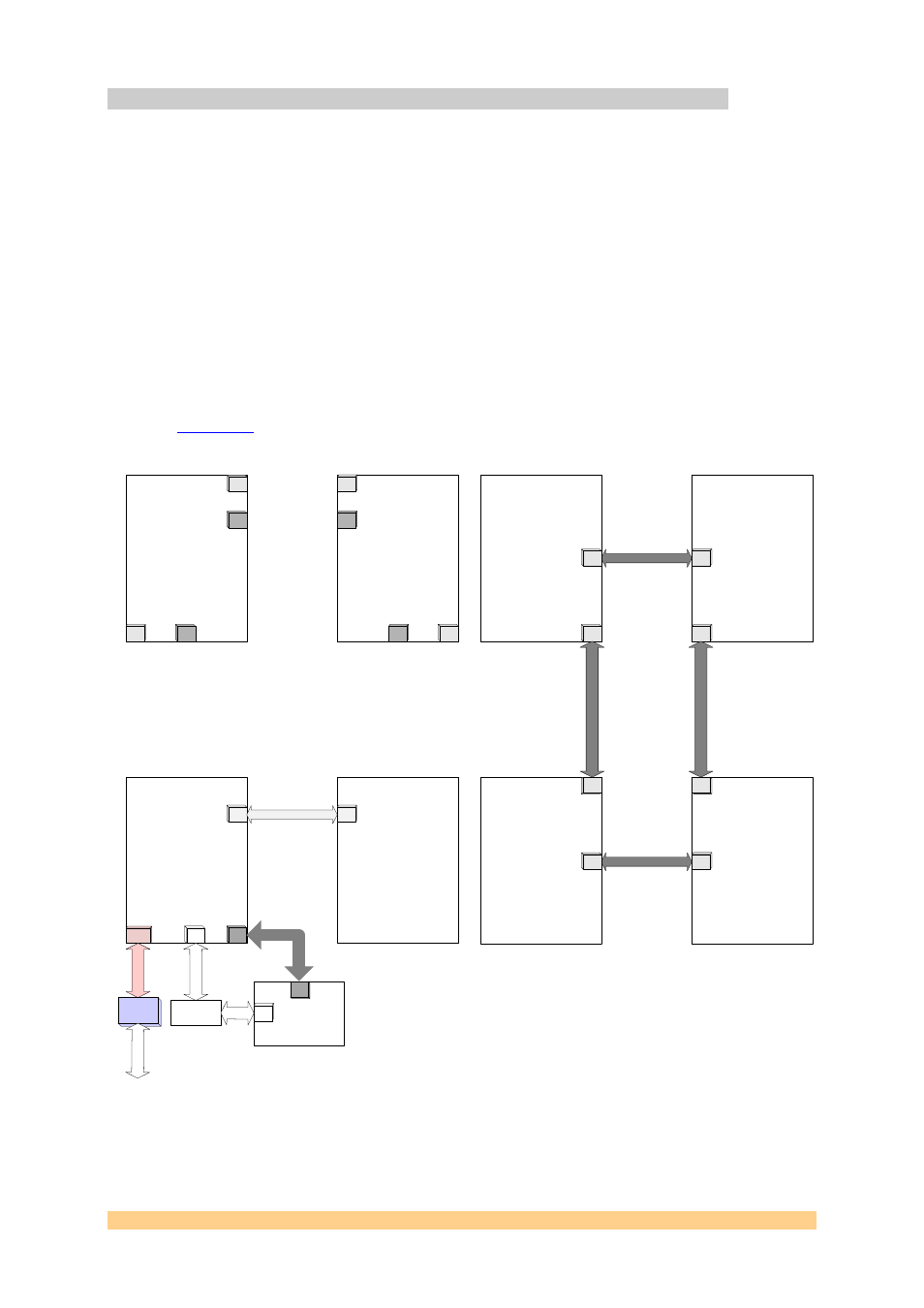

Figure 9 : DVIP bitstream comport configuration
