15
12. Deassembly of the REEL TABLE, IDLER
PLATE TOTAL ASS’Y (Fig. 3.16)
a. Remove the POLY WASHER ! and separate the
IDLER PLATE TOTAL Ass’y @ from the mainbase.
b. Remove the REEL TABLE $ from the REEL TABLE
POST # of the MAINBASE.
13. Deassembly of the REEL BRKT TOTAL ASS’Y,
CONNECT PLATE (Fig. 3.17)
a. Turn over the DECK MECHANISM and remove the 2
screw !.
b. Remove the REEL BRKT TOTAL Ass’y @ from the
MAINBASE.
c. Separate the CONNECT PLATE # from the MAIN-
BASE by pushing to the direction of the arrow.
DEASSEMBLY AND REPLACEMENT (CONTINUED)
CAUTION:
• Take care not to deform the IDLER PLATE TOTAL
Ass’y @ when assembling and deassembling. CAUTION:
• In deassembly of the REEL BRKT TOTAL Ass’y, take
care REEL BELT and REEL FELT not to be stained
with Grease, Oil or Foreign substance.
• Deassembly of the IDLER Ass’y should be precede the
deassembly of the REEL BRKT TOTAL Ass’y.
• Check the operation of the REEL BRKT TOTAL Ass’y
before assembly.
• Check the operation of FF/REW, PLAY, CUE and
REVIEW work well and existence of noise during the
mode operation.

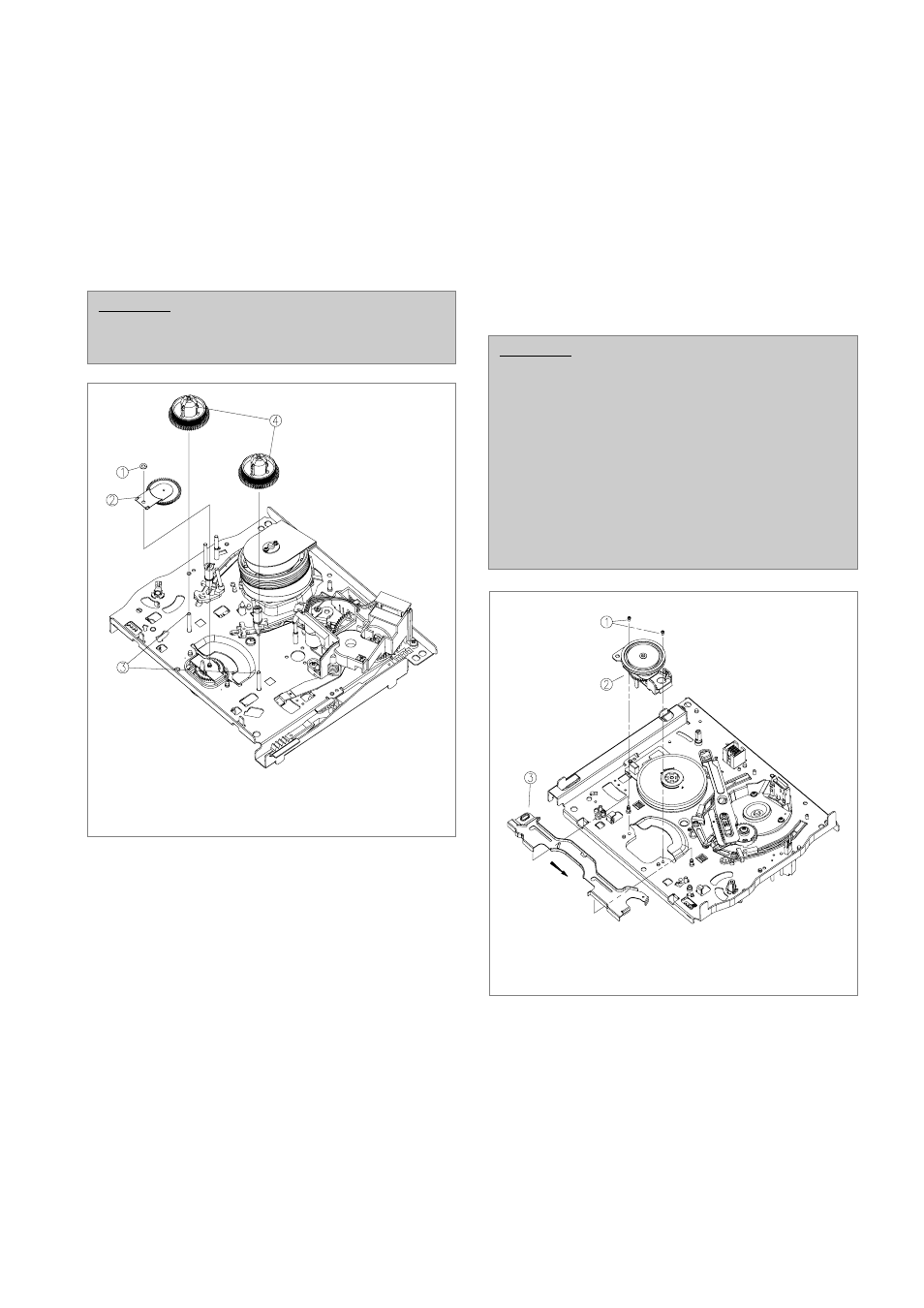

FIg. 3.16 Deassembly of the REEL TABLE and the IDLER
PLATE TOTAL ASS’Y
FIg. 3.17 Deassembly of the REEL BRKT TOTAL ASS’Y
and the CONNECT PLATE
