4. Deassembly of LOADING RACK, LOADING
ASS’Y, S/T SLANT POLE ASS’Y (Fig. 3.7, 3.8)
a. Turn out the DECK MECHANISM and remove the
LOADING RACK@ after unscrewing the SCREW !.
b. Disintegrate the R LOADING AS # and L LOADING
AS $.
c. Disintegrate the S SLANT POLE AS % and T SLANT
POLE AS ^ by moving those part in arrow direction.
5. Deassembly of the A/C HEAD ASS’Y (Fig. 3.9)
a. Remove the CONNECTOR @ from the AC HEAD
Ass’y, watch out that there is no damage in the HEAD
connecting PIN.
b. Separate the AC HEAD Ass’y ! after unscrewing the
screw #.
DEASSEMBLY AND REPLACEMENT (CONTINUED)
CAUTION:
• Take care GUIDE ROLLER of S/T SLANT POLE AS
and SLANT POLE not to be stained with grease during
assembly.
• Refer to Fig. 3.8 in assembly.

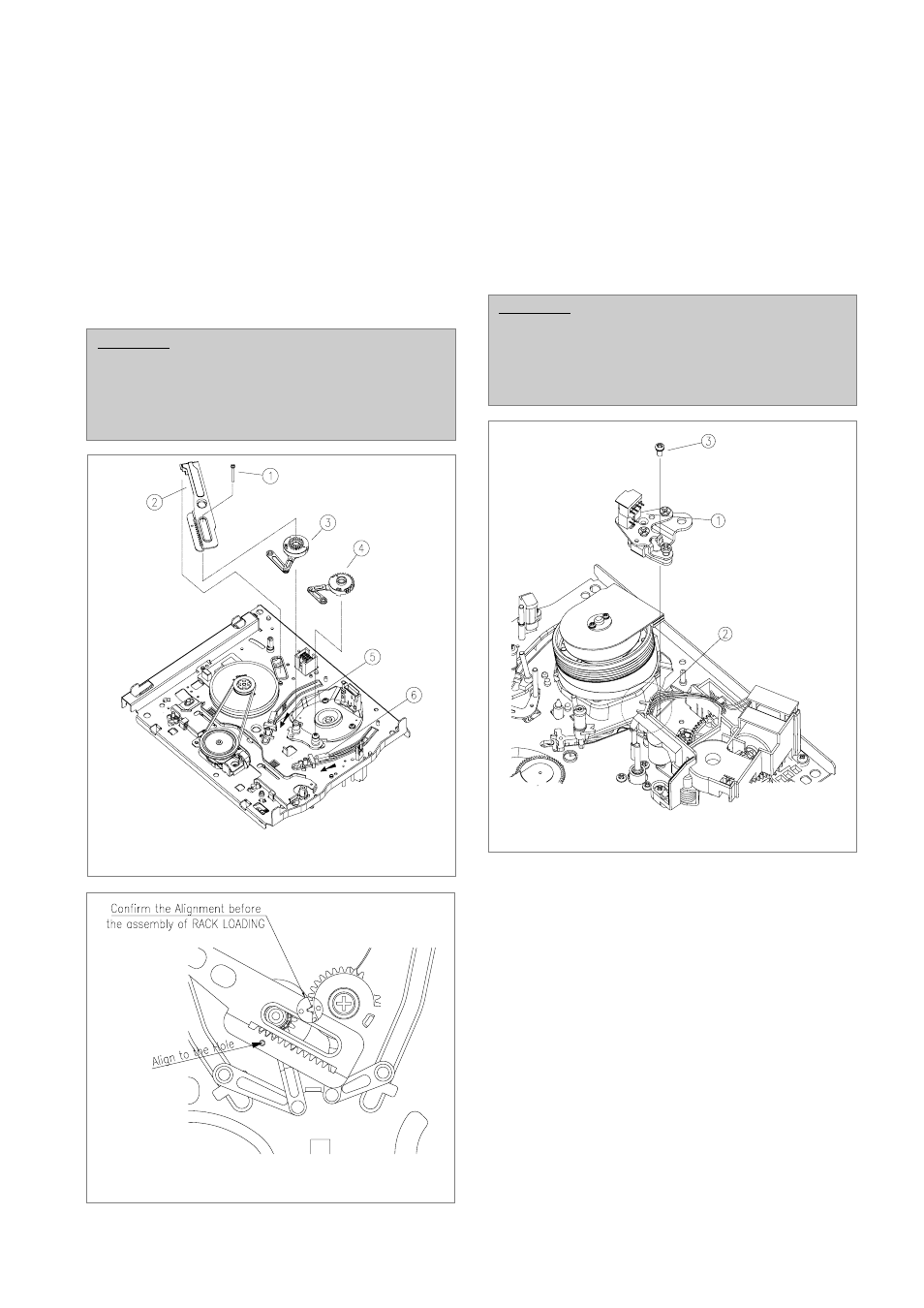

FIg. 3.7 Deassembly of the LOADING RACK, LOADING
ASS’Y and the SLANT POLE ASS’Y
FIg. 3.8 Assembly of the L/R LOADING AS and the
LOADING RACK
CAUTION:
• After the assembly, adjust the tape transmission section
by refering to the chapter 5.
• After the adjustment of the tape transmission section,
paint the 3 adjustment screw with locking paint.
FIg. 3.9 Deassembly of the AC HEAD ASS’Y
