75
Accessories
17-525 HEAVY BOOM
REF# PART# DESCRIPTION QUANTITY
1 18-417 Single Barb 4
18-040 Hose Clamp 3
2 8887-19 Orange PVC Hose 3 / 4 " x 19" 7
18-040 Hose Clamp 14
3 18-416 Double Barb 7
4 33-506 Nozzle body (see nozzle drawing) 11
5 18-415 3 / 4 " T Hose Barb 1
6 8887-2.5 Orange PVC Hose 3 / 4 " x 2 1 / 2 " 1
18-040 Hose Clamp 2
7 8887-15.5 Orange PVC Hose 3 / 4 " x 15 1 / 2 ": 1
18-040 Hose Clamp 2

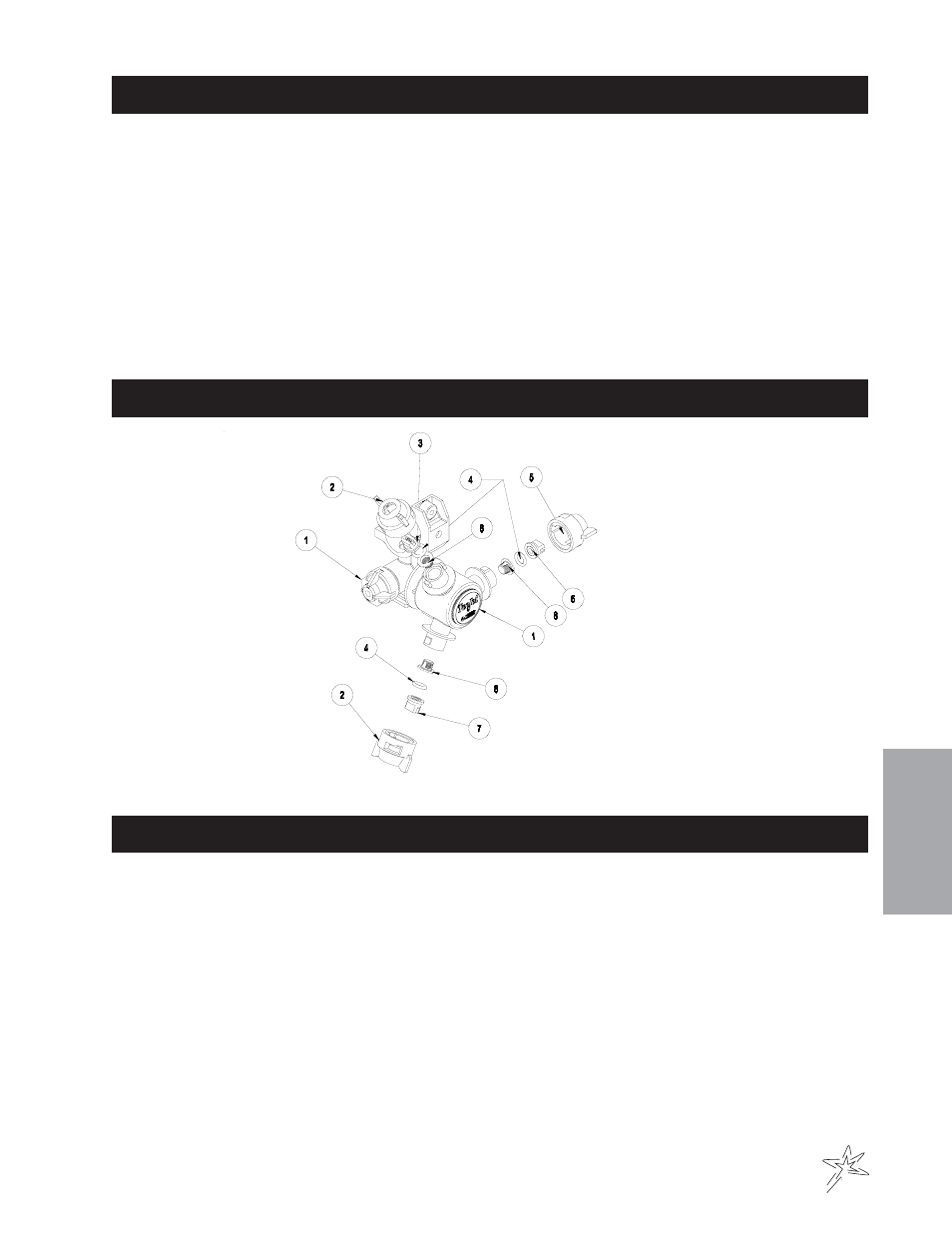

TRIPLE NOZZLE ASSEMBLY
TRIPLE NOZZLE ASSEMBLY
REF# PART# DESCRIPTION QUANTITY
1 33-506 Body 1
2 33-538 Cap - Gray 2
3 33-553 Nozzle -Gray (XR11006-VS) 1
4 16-800 Viton Gasket 3
5 33-537 Cap - Red 1
6 33-552 Nozzle - Red (XR11004-VS) 1
7 33-554 Nozzle - White (XR11008-VS) 1
Quantity is per nozzle body. For 18' booms multiply quantity by 11.
Nozzles are located 20" (51 cm) apart on the right, left, and center tubes. Nozzles are 20" high off ground.
For re-ordering Nozzle Kits the following numbers apply
33-540 Triple Nozzle Kit for 18' Booms
