PH3-LLT Proving Unit PH3-LLT Proving Unit PH3-LLT Proving Unit Operating Instructions Operating Instructions Operating Instructions
2 Environmental Conditions
The PH3-LLT has been designed to perform tests:
a) In a dry environment.
b) At a altitude of up to 2000m.
c) At temperature of 5° - 40°C without
moisture condensation.
3 Proving
The PH3-LLT is intended to check if a Live Line
Tester functions correctly.
• Connect one probe to the BLACK terminal.
• Connect the other probe to the RED terminal.

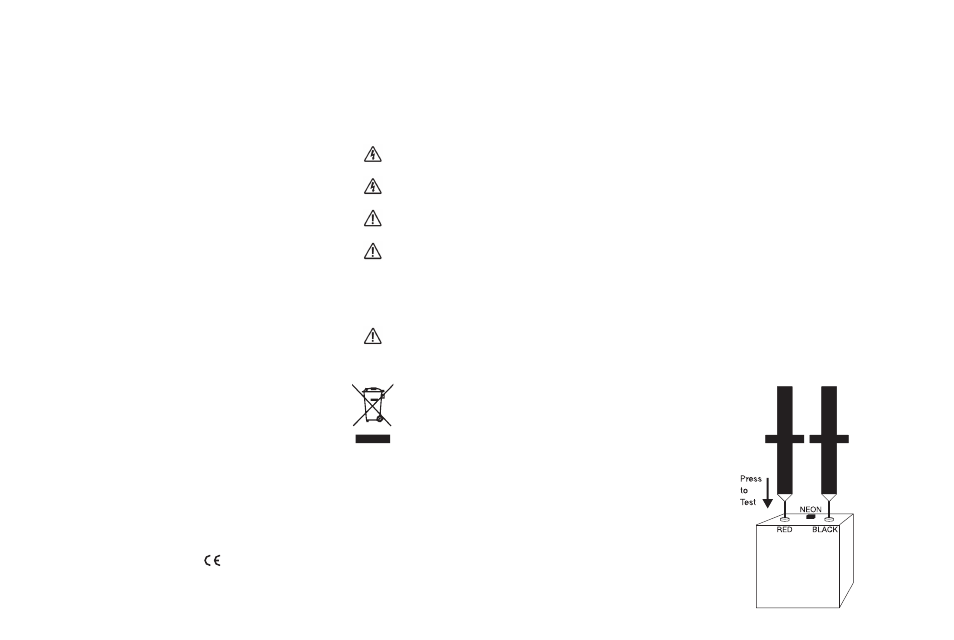

• Press the probe down onto the RED
terminal as shown below to operate the
internal micro-switch.
• Confi rm that the neon illuminates indicating
the test voltage is active.
• Confi rm that the LED indicators in the Live
Line Tester illuminate.
• Disconnect both probes from the proving
unit.
1 Important Information
These operating instructions are intended for the use of
adequately trained personnel.
Before use, ensure that both the proving unit and the live line
tester are clean and dry; visually inspect all parts. Any damage
must be rectifi ed prior to use.
Never hold a Live Line Tester between the handguard
and the contact electrode.
Electric shock risk!
Do not touch terminals!
Always prove the Live Line Tester before AND after
use.
Always check that the neon indicator on the
proving unit is illuminated whilst testing.
Use only accessories provided by the manufacturer.
Do not energise the proving unit for longer that 5s in order to
preserve the battery.
If the equipment is not used in a manner specifi ed
in the manual, the protection provided may be impaired.
Disposal of Old Product
This product has been designed and manufactured with
high quality materials and components that can be recycled
and reused.
When this symbol is attached to a product it means the product
is covered by the European Directive 2012/19/EC.
Please familiarise yourself with the appropriate local separate
collection system for electrical and electronic products.
Please dispose of this product according to local regulations.
Do not dispose of this product along with normal waste material.
The correct disposal of this product will help prevent potential
negative consequences for the environment and human health.
Limited Warranty & Limitation of Liability
SEAWARD Electronic Limited guarantees this product to be free
from defects in material and workmanship under normal use and
service for a period of 1 year. The period of warranty will be
effective at the day of delivery.
© Copyright 2014
All rights reserved. Nothing from this edition may be multiplied, or
made public in any form or manner, either electronically,
mechanically, by photocopying, recording, or in any manner,
without prior written consent from SEAWARD Electronic Limited.
This also applies to accompanying drawings and diagrams.
Due to a policy of continuous development SEAWARD Electronic
Limited reserves the right to alter the equipment specifi cation and
description outlined in this publication without prior notice and no
part of this publication shall be deemed to be part of any contract
for the equipment unless specifi cally referred to as an inclusion
within such contract.
DECLARATION OF CONFORMITY
As the manufacturer of the apparatus listed, declare under our
sole responsibility that the product:
PH3-LLT
To which this declaration relates are in conformity with the
relevant clauses of the following standard:
BS EN 61010-1:2010
Safety requirements for electrical equipment for
measurement, control, and laboratory use – Part 1: General
requirements.
BS EN 61326:2013
Electrical equipment for measurement, control and
laboratory use-EMC Requirements
Performance: The instrument operates within specifi cation
when used under the conditions in the above
standards EMC and Safety Standards.
The product identifi ed above conforms to the requirements of
Council Directive 2006/95/EC and 2004/108/EC.
This Conformity is indicated by the symbol , i.e. “Conformité
Européenne”
Seaward Electronic Ltd is registered under BS EN ISO9001:2000
Certifi cate No: Q05356.
